Docker

Suggest Edits

The IBM Application Gateway can be deployed as a standalone Docker container.

1302

Example

The following steps will:

  • Create the IBM Application Gateway Docker container
  • Create an application that will be fronted by IBM Application Gateway
  • Access the application via the IBM Application Gateway
  • The page will show the identity and other headers that have been added to the request by the IBM Application Gateway

📘

Authentication

This example does not include authentication. This example illustrates the deployment process for using IBM Application Gateway as a proxy to a protected application. For details on adding authentication, refer to Configuring as an OIDC Relying Party for IBM Security Verify or Configuring as an OIDC Relying Party for IBM Security Verify Access.

  1. Ensure Docker is running on the local machine.
docker --version

Docker version 19.03.5, build 633a0ea
  1. Paste the following into a file named /tmp/iag_config/config.yaml.
version: "23.04"
resource_servers:
  - path: "/static"
    connection_type: "ssl"
    servers:
      - host: resource-server.au-syd.mybluemix.net
        port: 443
    identity_headers:
      attributes:
        - attribute: groupIds
          header: iv_groups
        - attribute: AZN_CRED_AUTHZN_ID
          header: iv_user
      jwt:
        certificate: "B64:QmFnIEF0dHJpYnV0ZXMKICAgIGZyaWVuZGx5TmFtZTogUlNBCiAgICBsb2NhbEtleUlEOiAwMyA4MiAwMSAwMSAwMCBEMyAwMyBCNSBFMiBERSA3RiBEMSAwOCBFOCBBMCA5QyBENCBDRSBCOCAwQSA1QSBEOSAyRCA2NSAzMCBDNyA3MCA5RiAyRCAxRiA0OSBFRSA3MCA1OCA3QyAyRSA0MCBDOCA3MCBGRSBEOSBFNiAzRSA0RSA2QiBENiAzOCBFMCBEMiAyMyAzOCA3QyBGOSA2RCBDMiAxNCAyRSBERCA2NyBGMSBBRCBDOCAwMyAxNCAyQiBGNCAzNCBEOCA4MCA4MSAwNCBFMiBFMCBBRCA2MSBDMCA4NyA2MSA2RiBCQiA5RSAzMiBDNSBEMCA0MiBERSAxMCBEQSAwNCBDNSAzRSA5OCA2QSA2NCBCQiBCNyA2RSBDQiBDRSBGQyBFRCBDMCBEQiBFMyA3RiAzQSBFRCAxQSBBMyBCNSBBMyBDNyBDRCAxMyAwMSA1NCAwMCBGMSBGRCAwNyBCRCA1NSA3QiBCMyA0NCBFMiA4RiA1OSA0RSAyNSBENiBFMSAyQiBFRSA3MSBFOCBGMCA2NSAxNiAxOCA2OCBEQiBCNCBCNiBBMCBDMiAxNiAwMCBBMiA4MSA1RiBGNyA2NCAwNiA1RiBEQSAyQSBENiA3MiBFRiBCMyBBQyBBMyA0NyAyMiBFOCAxRCA2NiAxMSBDOCBBNSBDOCBBNyAxRCBFNiAxMSA4QiAwOSBBQyAzMyAzNSBGQyAzMyBEOSA5RiA1OCBDNSAzOSBFNyBDMyA3MCAwMiA4NCAxQSA2MSAyMSA5MSBDNCBCOSA2MSBEMiAzOSA3NiBFMSAzRiAzQSBGOCBFNCBGRSBBRSAyQiBCNiA1MyAxMSA0NCBDNiAxRCA2RiA1RCBGMyBGQyAxMyAyNCBFNCA2RCA4QiAwRSA0NCAyNiAzMCAxQSA1QSAyOSA2RSA5RiA4MiBGRCBFRSA2QyA2QSBCQyBBOCBCRiAyQyBCMSA3MiBBQiBENSBDMCBGNyA3NCA3MiA5NCA4RSA3RSA5QyAxOSBFNyAyRiA1MCBEMSAKS2V5IEF0dHJpYnV0ZXM6IDxObyBBdHRyaWJ1dGVzPgotLS0tLUJFR0lOIFBSSVZBVEUgS0VZLS0tLS0KTUlJRXZ3SUJBREFOQmdrcWhraUc5dzBCQVFFRkFBU0NCS2t3Z2dTbEFnRUFBb0lCQVFEbllIR3ZsY0VsWE1jVQprNWVxZ3d2ajJNc2FQblVPWVJYdy9FY2dzRWhKdnRtUVg4ak5lR3Fia1ZnSEJWL3RwZ1lsOW1jSHRPeXRvTzdRCjRLczhBZUFYek5tVCttUTNOR1h5bmx3K1Jod1prZm5vWUhZUExldkZhby82YzY5M1Z6WFFqaXpWa1RITHNjZloKeXJNN2VYdU9rcU9kUlVDTnpFSmNyVVlna3MrTVhsRlo0Zjk0WU9vZGNzYkJzLzZRYXFiWXBVcEEwUXpvRDRRaQpxOXlmUEFoM002WUJ5SnNMeGw5Q3RrVnlSaVFKUG5vZGl1SW1DNTRmZTBIN0NHNlpFOUhCeEc0YTBaZ1VVYWM2CnZoU25zaDJvRVVvQnZkaXVxaWsrYU1uNzFVR3BFTDRZWjQ2STRsQWd4d2xLRlBOZE5zSzBJY0VZbUo4VndCUUQKVnZsQlpKSVRBZ01CQUFFQ2dnRUFaOG4xZFVRQjdoYWVIdmJOOCtqdzduWVROV1NLOGJaUE4xaVROM0NjSEtpRgp3Nk9UMmNlSVd0eHAxa3hzNlpldDdsMkhmZ2VFbTZZek9uTnRuRzlpN0lveGw1V2NXcjhnZENMaFVmWDFLT3M0ClpTclFDcU1ZdmVlOVNpV1dzanZtb2ZVRTI1QlQvQUYxbXBhNHE1Y2srNkYvejA1L1ZKd3BzSlR4Zmk4Yzl1T0YKdGVxMmJDMUJUdFhNSjhJaHZTNi9LWjk0SFZzT2NwcHg2bG5oR1lwS0pQbHU2UHRZYmxCNjFYNkZqWng2MkloRgpQU0Z0UXVoMFlYbWZjYkpKNjlZYm9FQ0hsSEN0ZTE0MGxyanRHeHpEZ3FXa3EybWRyTFF6RHNhOWkxVjNvRE52Ckg0K3NrMGNwN1NVeGpWbXA1TzZENjdkTmZJaWk2MklnRUZNb0NRZUdjUUtCZ1FEN3RvM0pQbWF4SElKUWVOZXEKUkl0b3FpalUxcFJHVXZONUE4cEthckhkTHhPNnJxV25ZT0NHNzJzV0crSXRDeGg0dVJtYlBxcy9heXpDRVE2bgpkK05OWG9tbFV2Wng1dU90VGl5dkhVOUZ3ZE16clJ6T0hIc0lkUktHY2QxY0RWQm00dCtyRnlGRDl1YXNlN1dCCkxPbEFkRC95YkRWZjFUY1d4em5kbGFJNnJRS0JnUURyVVRtOGYwdm9yZm4vV29Ta3NmOEJ4M2JSYjB1Wk85Z1EKVGIveC84WXJvdStvKzZjcHRuMHk0N3MvckRNWFUyUUxNKzdHT3ZuNEd6eHVYVXBVdEZhY1pyOFB1Y09lM3ZqNQpsY21ablZHUHBSaVlvUWYvQVFFUWZtNk9ldUNOQ0dKUkZsM0szS09uN2xJaTI1MnVONHRZbXdLWGFkSjBOdVVYCk1za1NjRkpYdndLQmdRQ2Exazhkcmc4SmY5b0JtblEvdnU1cXNkRndLNWNHTTF5bDRsajdzZW83Znd3SjJBajYKanpOT2pkUTN3MnM3L2dsTnFiOUFxaW81VnJvdm5zSis3ZGFhN3o2SXZpSHZLdkorMXduUnBwdnU4eTN5S2RrQQpTTEMrSVJZR01lRFRFVFdXTkpVVjc2Sjg1bEk3WTlYZzRqbVJkbkVudEx5WWVOWHNZeDBMVzFKeCtRS0JnUUN2CndMYlNwbkRYbERsSUV4OUdzdnEzSlhjRTdZOFZIN0U4WEJXa2RWaFpkeFJ3cmFRb2IzZ0s3alFJVm1EQ1p6SXQKZTlnMmpnM3MxTXJKMHp1VkVDd3dIRDFQVFh0aHlUOURpakJNWDBkdmRldHM4N2k1S05MV3N0ZDM2eWFUcjFOZgpKTWxnbm5KTkZwNmFFbFV1cmFXUnhCU25hZzRaWm5hc1lPMzBxNWVVbVFLQmdRQzNKdDdxVHpSSVB0VEhQZGdlCmxzUThGZDBaeHdkNDNncENVYnpndys1QjlvSWVmMFV2NE1YZzMzZDZOaGV6MFdrTHBaMmFZZy8yVnBjV09NTjQKMC9KRW9ta2xjeFlFSkxaY0MyeDhWOVkxemgrOTBFTkpKVnZGS0FadXdhM2Ftc1VicU0ySnFvQ0thR29pbUdEdgptc1kvS1Q0NE8ycm9wazBBWEJ4VWlUZ3Ewdz09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0KQmFnIEF0dHJpYnV0ZXMKICAgIGZyaWVuZGx5TmFtZTogUlNBCiAgICBsb2NhbEtleUlEOiAwMyA4MiAwMSAwMSAwMCBEMyAwMyBCNSBFMiBERSA3RiBEMSAwOCBFOCBBMCA5QyBENCBDRSBCOCAwQSA1QSBEOSAyRCA2NSAzMCBDNyA3MCA5RiAyRCAxRiA0OSBFRSA3MCA1OCA3QyAyRSA0MCBDOCA3MCBGRSBEOSBFNiAzRSA0RSA2QiBENiAzOCBFMCBEMiAyMyAzOCA3QyBGOSA2RCBDMiAxNCAyRSBERCA2NyBGMSBBRCBDOCAwMyAxNCAyQiBGNCAzNCBEOCA4MCA4MSAwNCBFMiBFMCBBRCA2MSBDMCA4NyA2MSA2RiBCQiA5RSAzMiBDNSBEMCA0MiBERSAxMCBEQSAwNCBDNSAzRSA5OCA2QSA2NCBCQiBCNyA2RSBDQiBDRSBGQyBFRCBDMCBEQiBFMyA3RiAzQSBFRCAxQSBBMyBCNSBBMyBDNyBDRCAxMyAwMSA1NCAwMCBGMSBGRCAwNyBCRCA1NSA3QiBCMyA0NCBFMiA4RiA1OSA0RSAyNSBENiBFMSAyQiBFRSA3MSBFOCBGMCA2NSAxNiAxOCA2OCBEQiBCNCBCNiBBMCBDMiAxNiAwMCBBMiA4MSA1RiBGNyA2NCAwNiA1RiBEQSAyQSBENiA3MiBFRiBCMyBBQyBBMyA0NyAyMiBFOCAxRCA2NiAxMSBDOCBBNSBDOCBBNyAxRCBFNiAxMSA4QiAwOSBBQyAzMyAzNSBGQyAzMyBEOSA5RiA1OCBDNSAzOSBFNyBDMyA3MCAwMiA4NCAxQSA2MSAyMSA5MSBDNCBCOSA2MSBEMiAzOSA3NiBFMSAzRiAzQSBGOCBFNCBGRSBBRSAyQiBCNiA1MyAxMSA0NCBDNiAxRCA2RiA1RCBGMyBGQyAxMyAyNCBFNCA2RCA4QiAwRSA0NCAyNiAzMCAxQSA1QSAyOSA2RSA5RiA4MiBGRCBFRSA2QyA2QSBCQyBBOCBCRiAyQyBCMSA3MiBBQiBENSBDMCBGNyA3NCA3MiA5NCA4RSA3RSA5QyAxOSBFNyAyRiA1MCBEMSAKc3ViamVjdD1DTiA9IHJzYS5hdXRvdGVzdC5pYm0uY29tCgppc3N1ZXI9Q04gPSByc2EuYXV0b3Rlc3QuaWJtLmNvbQoKLS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURBakNDQWVxZ0F3SUJBZ0lJV3ZmTmxuV0c1MWt3RFFZSktvWklodmNOQVFFTkJRQXdIekVkTUJzR0ExVUUKQXhNVWNuTmhMbUYxZEc5MFpYTjBMbWxpYlM1amIyMHdIaGNOTVRreE1qRTVNREV6TWpBeldoY05Namt4TWpFMwpNREV6TWpBeldqQWZNUjB3R3dZRFZRUURFeFJ5YzJFdVlYVjBiM1JsYzNRdWFXSnRMbU52YlRDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQU9kZ2NhK1Z3U1ZjeHhTVGw2cURDK1BZeXhvK2RRNWgKRmZEOFJ5Q3dTRW0rMlpCZnlNMTRhcHVSV0FjRlgrMm1CaVgyWndlMDdLMmc3dERncXp3QjRCZk0yWlA2WkRjMApaZktlWEQ1R0hCbVIrZWhnZGc4dDY4VnFqL3B6cjNkWE5kQ09MTldSTWN1eHg5bktzenQ1ZTQ2U281MUZRSTNNClFseXRSaUNTejR4ZVVWbmgvM2hnNmgxeXhzR3ovcEJxcHRpbFNrRFJET2dQaENLcjNKODhDSGN6cGdISW13dkcKWDBLMlJYSkdKQWsrZWgySzRpWUxuaDk3UWZzSWJwa1QwY0hFYmhyUm1CUlJwenErRktleUhhZ1JTZ0c5Mks2cQpLVDVveWZ2VlFha1F2aGhuam9qaVVDREhDVW9VODEwMndyUWh3UmlZbnhYQUZBTlcrVUZra2hNQ0F3RUFBYU5DCk1FQXdIUVlEVlIwT0JCWUVGQmN6SEZZYWdUd0VuNGVNOVlacTZ6TS9QeFdFTUI4R0ExVWRJd1FZTUJhQUZCY3oKSEZZYWdUd0VuNGVNOVlacTZ6TS9QeFdFTUEwR0NTcUdTSWIzRFFFQkRRVUFBNElCQVFEVEE3WGkzbi9SQ09pZwpuTlRPdUFwYTJTMWxNTWR3bnkwZlNlNXdXSHd1UU1ody90bm1QazVyMWpqZzBpTTRmUGx0d2hRdTNXZnhyY2dECkZDdjBOTmlBZ1FUaTRLMWh3SWRoYjd1ZU1zWFFRdDRRMmdURlBwaHFaTHUzYnN2Ty9PM0EyK04vT3UwYW83V2oKeDgwVEFWUUE4ZjBIdlZWN3MwVGlqMWxPSmRiaEsrNXg2UEJsRmhobzI3UzJvTUlXQUtLQlgvZGtCbC9hS3RaeQo3N09zbzBjaTZCMW1FY2lseUtjZDVoR0xDYXd6TmZ3ejJaOVl4VG5udzNBQ2hCcGhJWkhFdVdIU09YYmhQenI0CjVQNnVLN1pURVVUR0hXOWQ4L3dUSk9SdGl3NUVKakFhV2lsdW40TDk3bXhxdktpL0xMRnlxOVhBOTNSeWxJNSsKbkJubkwxRFIKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo="
        hdr_name: jwt
        claims:
          - text: www.ibm.com
            name: iss
          - attr: AZN_CRED_PRINCIPAL_NAME
            name: sub
          - attr: AZN_*
  1. Create the IBM Application Gateway container.
docker run --hostname iag-test --name iag-test \
  --detach --publish 8443:8443 \
  --volume /tmp/iag_config:/var/iag/config \
  icr.io/ibmappgateway/ibm-application-gateway:23.04.0
  1. Use a browser to access the demo URL.
https://127.0.0.1:8443/static

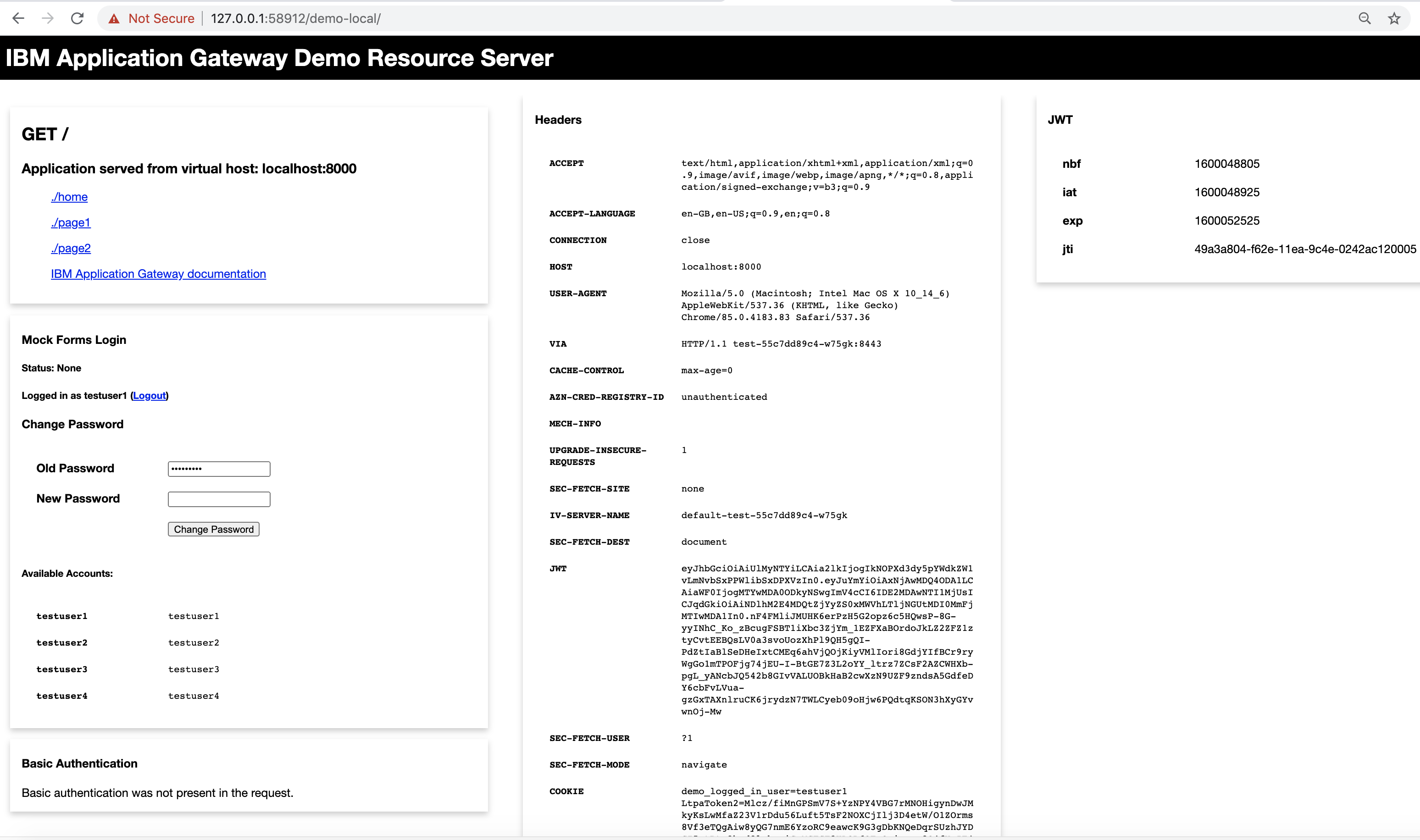

  1. The demo page is shown.

👍

Note

This page includes the following pieces that have been added by the IBM Application Gateway:
A JWT header has been added
The IV-USER, IV-GROUPS and IV-SERVER-NAME headers have been added
The JWT has been extracted"

3096
  1. Cleanup.
docker stop iag-test
docker rm iag-test
docker rmi icr.io/ibmappgateway/ibm-application-gateway:23.04.0
