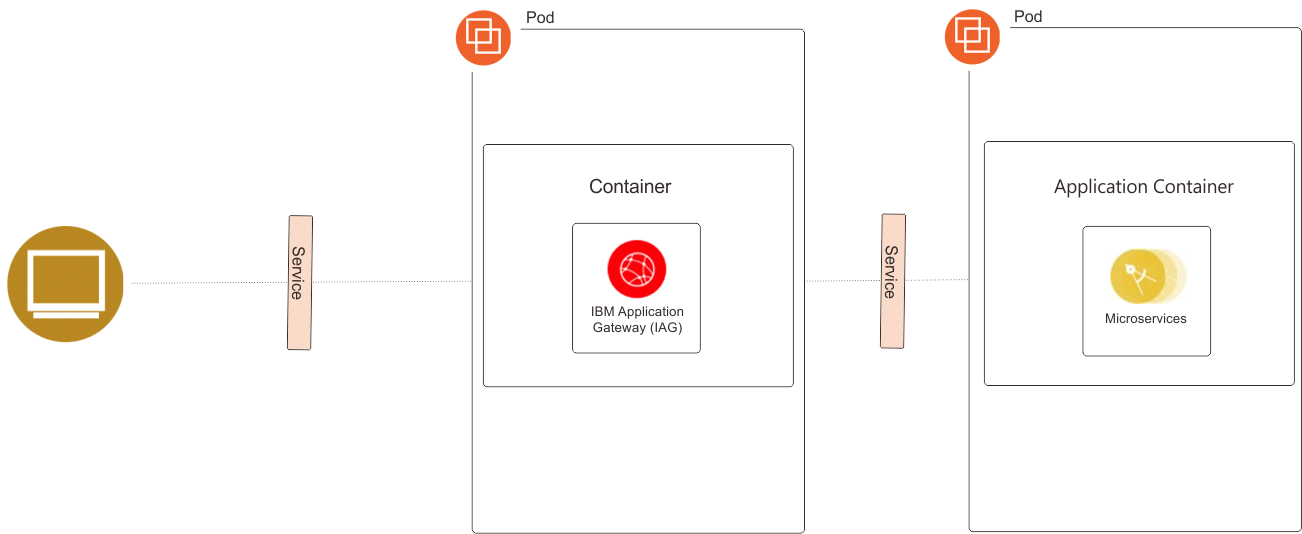

The IBM Application Gateway can be deployed as a standalone container.

1302

Example

The following steps will:

  • Create the IBM Application Gateway container
  • Create an application that will be fronted by IBM Application Gateway
  • Access the application via the IBM Application Gateway
  • The page will show the identity and other headers that have been added to the request by the IBM Application Gateway

📘

Authentication

This example does not include authentication. This example illustrates the deployment process for using IBM Application Gateway as a proxy to a protected application. For details on adding authentication, refer to Configuring as an OIDC Relying Party for IBM Security Verify or Configuring as an OIDC Relying Party for IBM Security Verify Access.

  1. Ensure the container runtime is running on the local machine. This may be docker or podman.
docker --version

Docker version 19.03.5, build 633a0ea

podman --version

podman version 3.4.4
  1. Paste the following into a file named /tmp/iag_config/config.yaml.
version: "24.09"
resource_servers:
  - path: "/static"
    connection_type: "ssl"
    sni: resource-server-demo.verify.ibm.com
    servers:
      - host: resource-server-demo.verify.ibm.com
        port: 443
    identity_headers:
      attributes:
        - attribute: groupIds
          header: iv_groups
        - attribute: AZN_CRED_AUTHZN_ID
          header: iv_user
      jwt:
        certificate: "B64:QmFnIEF0dHJpYnV0ZXMKICAgIGZyaWVuZGx5TmFtZTogUlNBCiAgICBsb2NhbEtleUlEOiAwMyA4MiAwMSAwMSAwMCBEMyAwMyBCNSBFMiBERSA3RiBEMSAwOCBFOCBBMCA5QyBENCBDRSBCOCAwQSA1QSBEOSAyRCA2NSAzMCBDNyA3MCA5RiAyRCAxRiA0OSBFRSA3MCA1OCA3QyAyRSA0MCBDOCA3MCBGRSBEOSBFNiAzRSA0RSA2QiBENiAzOCBFMCBEMiAyMyAzOCA3QyBGOSA2RCBDMiAxNCAyRSBERCA2NyBGMSBBRCBDOCAwMyAxNCAyQiBGNCAzNCBEOCA4MCA4MSAwNCBFMiBFMCBBRCA2MSBDMCA4NyA2MSA2RiBCQiA5RSAzMiBDNSBEMCA0MiBERSAxMCBEQSAwNCBDNSAzRSA5OCA2QSA2NCBCQiBCNyA2RSBDQiBDRSBGQyBFRCBDMCBEQiBFMyA3RiAzQSBFRCAxQSBBMyBCNSBBMyBDNyBDRCAxMyAwMSA1NCAwMCBGMSBGRCAwNyBCRCA1NSA3QiBCMyA0NCBFMiA4RiA1OSA0RSAyNSBENiBFMSAyQiBFRSA3MSBFOCBGMCA2NSAxNiAxOCA2OCBEQiBCNCBCNiBBMCBDMiAxNiAwMCBBMiA4MSA1RiBGNyA2NCAwNiA1RiBEQSAyQSBENiA3MiBFRiBCMyBBQyBBMyA0NyAyMiBFOCAxRCA2NiAxMSBDOCBBNSBDOCBBNyAxRCBFNiAxMSA4QiAwOSBBQyAzMyAzNSBGQyAzMyBEOSA5RiA1OCBDNSAzOSBFNyBDMyA3MCAwMiA4NCAxQSA2MSAyMSA5MSBDNCBCOSA2MSBEMiAzOSA3NiBFMSAzRiAzQSBGOCBFNCBGRSBBRSAyQiBCNiA1MyAxMSA0NCBDNiAxRCA2RiA1RCBGMyBGQyAxMyAyNCBFNCA2RCA4QiAwRSA0NCAyNiAzMCAxQSA1QSAyOSA2RSA5RiA4MiBGRCBFRSA2QyA2QSBCQyBBOCBCRiAyQyBCMSA3MiBBQiBENSBDMCBGNyA3NCA3MiA5NCA4RSA3RSA5QyAxOSBFNyAyRiA1MCBEMSAKS2V5IEF0dHJpYnV0ZXM6IDxObyBBdHRyaWJ1dGVzPgotLS0tLUJFR0lOIFBSSVZBVEUgS0VZLS0tLS0KTUlJRXZ3SUJBREFOQmdrcWhraUc5dzBCQVFFRkFBU0NCS2t3Z2dTbEFnRUFBb0lCQVFEbllIR3ZsY0VsWE1jVQprNWVxZ3d2ajJNc2FQblVPWVJYdy9FY2dzRWhKdnRtUVg4ak5lR3Fia1ZnSEJWL3RwZ1lsOW1jSHRPeXRvTzdRCjRLczhBZUFYek5tVCttUTNOR1h5bmx3K1Jod1prZm5vWUhZUExldkZhby82YzY5M1Z6WFFqaXpWa1RITHNjZloKeXJNN2VYdU9rcU9kUlVDTnpFSmNyVVlna3MrTVhsRlo0Zjk0WU9vZGNzYkJzLzZRYXFiWXBVcEEwUXpvRDRRaQpxOXlmUEFoM002WUJ5SnNMeGw5Q3RrVnlSaVFKUG5vZGl1SW1DNTRmZTBIN0NHNlpFOUhCeEc0YTBaZ1VVYWM2CnZoU25zaDJvRVVvQnZkaXVxaWsrYU1uNzFVR3BFTDRZWjQ2STRsQWd4d2xLRlBOZE5zSzBJY0VZbUo4VndCUUQKVnZsQlpKSVRBZ01CQUFFQ2dnRUFaOG4xZFVRQjdoYWVIdmJOOCtqdzduWVROV1NLOGJaUE4xaVROM0NjSEtpRgp3Nk9UMmNlSVd0eHAxa3hzNlpldDdsMkhmZ2VFbTZZek9uTnRuRzlpN0lveGw1V2NXcjhnZENMaFVmWDFLT3M0ClpTclFDcU1ZdmVlOVNpV1dzanZtb2ZVRTI1QlQvQUYxbXBhNHE1Y2srNkYvejA1L1ZKd3BzSlR4Zmk4Yzl1T0YKdGVxMmJDMUJUdFhNSjhJaHZTNi9LWjk0SFZzT2NwcHg2bG5oR1lwS0pQbHU2UHRZYmxCNjFYNkZqWng2MkloRgpQU0Z0UXVoMFlYbWZjYkpKNjlZYm9FQ0hsSEN0ZTE0MGxyanRHeHpEZ3FXa3EybWRyTFF6RHNhOWkxVjNvRE52Ckg0K3NrMGNwN1NVeGpWbXA1TzZENjdkTmZJaWk2MklnRUZNb0NRZUdjUUtCZ1FEN3RvM0pQbWF4SElKUWVOZXEKUkl0b3FpalUxcFJHVXZONUE4cEthckhkTHhPNnJxV25ZT0NHNzJzV0crSXRDeGg0dVJtYlBxcy9heXpDRVE2bgpkK05OWG9tbFV2Wng1dU90VGl5dkhVOUZ3ZE16clJ6T0hIc0lkUktHY2QxY0RWQm00dCtyRnlGRDl1YXNlN1dCCkxPbEFkRC95YkRWZjFUY1d4em5kbGFJNnJRS0JnUURyVVRtOGYwdm9yZm4vV29Ta3NmOEJ4M2JSYjB1Wk85Z1EKVGIveC84WXJvdStvKzZjcHRuMHk0N3MvckRNWFUyUUxNKzdHT3ZuNEd6eHVYVXBVdEZhY1pyOFB1Y09lM3ZqNQpsY21ablZHUHBSaVlvUWYvQVFFUWZtNk9ldUNOQ0dKUkZsM0szS09uN2xJaTI1MnVONHRZbXdLWGFkSjBOdVVYCk1za1NjRkpYdndLQmdRQ2Exazhkcmc4SmY5b0JtblEvdnU1cXNkRndLNWNHTTF5bDRsajdzZW83Znd3SjJBajYKanpOT2pkUTN3MnM3L2dsTnFiOUFxaW81VnJvdm5zSis3ZGFhN3o2SXZpSHZLdkorMXduUnBwdnU4eTN5S2RrQQpTTEMrSVJZR01lRFRFVFdXTkpVVjc2Sjg1bEk3WTlYZzRqbVJkbkVudEx5WWVOWHNZeDBMVzFKeCtRS0JnUUN2CndMYlNwbkRYbERsSUV4OUdzdnEzSlhjRTdZOFZIN0U4WEJXa2RWaFpkeFJ3cmFRb2IzZ0s3alFJVm1EQ1p6SXQKZTlnMmpnM3MxTXJKMHp1VkVDd3dIRDFQVFh0aHlUOURpakJNWDBkdmRldHM4N2k1S05MV3N0ZDM2eWFUcjFOZgpKTWxnbm5KTkZwNmFFbFV1cmFXUnhCU25hZzRaWm5hc1lPMzBxNWVVbVFLQmdRQzNKdDdxVHpSSVB0VEhQZGdlCmxzUThGZDBaeHdkNDNncENVYnpndys1QjlvSWVmMFV2NE1YZzMzZDZOaGV6MFdrTHBaMmFZZy8yVnBjV09NTjQKMC9KRW9ta2xjeFlFSkxaY0MyeDhWOVkxemgrOTBFTkpKVnZGS0FadXdhM2Ftc1VicU0ySnFvQ0thR29pbUdEdgptc1kvS1Q0NE8ycm9wazBBWEJ4VWlUZ3Ewdz09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0KQmFnIEF0dHJpYnV0ZXMKICAgIGZyaWVuZGx5TmFtZTogUlNBCiAgICBsb2NhbEtleUlEOiAwMyA4MiAwMSAwMSAwMCBEMyAwMyBCNSBFMiBERSA3RiBEMSAwOCBFOCBBMCA5QyBENCBDRSBCOCAwQSA1QSBEOSAyRCA2NSAzMCBDNyA3MCA5RiAyRCAxRiA0OSBFRSA3MCA1OCA3QyAyRSA0MCBDOCA3MCBGRSBEOSBFNiAzRSA0RSA2QiBENiAzOCBFMCBEMiAyMyAzOCA3QyBGOSA2RCBDMiAxNCAyRSBERCA2NyBGMSBBRCBDOCAwMyAxNCAyQiBGNCAzNCBEOCA4MCA4MSAwNCBFMiBFMCBBRCA2MSBDMCA4NyA2MSA2RiBCQiA5RSAzMiBDNSBEMCA0MiBERSAxMCBEQSAwNCBDNSAzRSA5OCA2QSA2NCBCQiBCNyA2RSBDQiBDRSBGQyBFRCBDMCBEQiBFMyA3RiAzQSBFRCAxQSBBMyBCNSBBMyBDNyBDRCAxMyAwMSA1NCAwMCBGMSBGRCAwNyBCRCA1NSA3QiBCMyA0NCBFMiA4RiA1OSA0RSAyNSBENiBFMSAyQiBFRSA3MSBFOCBGMCA2NSAxNiAxOCA2OCBEQiBCNCBCNiBBMCBDMiAxNiAwMCBBMiA4MSA1RiBGNyA2NCAwNiA1RiBEQSAyQSBENiA3MiBFRiBCMyBBQyBBMyA0NyAyMiBFOCAxRCA2NiAxMSBDOCBBNSBDOCBBNyAxRCBFNiAxMSA4QiAwOSBBQyAzMyAzNSBGQyAzMyBEOSA5RiA1OCBDNSAzOSBFNyBDMyA3MCAwMiA4NCAxQSA2MSAyMSA5MSBDNCBCOSA2MSBEMiAzOSA3NiBFMSAzRiAzQSBGOCBFNCBGRSBBRSAyQiBCNiA1MyAxMSA0NCBDNiAxRCA2RiA1RCBGMyBGQyAxMyAyNCBFNCA2RCA4QiAwRSA0NCAyNiAzMCAxQSA1QSAyOSA2RSA5RiA4MiBGRCBFRSA2QyA2QSBCQyBBOCBCRiAyQyBCMSA3MiBBQiBENSBDMCBGNyA3NCA3MiA5NCA4RSA3RSA5QyAxOSBFNyAyRiA1MCBEMSAKc3ViamVjdD1DTiA9IHJzYS5hdXRvdGVzdC5pYm0uY29tCgppc3N1ZXI9Q04gPSByc2EuYXV0b3Rlc3QuaWJtLmNvbQoKLS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURBakNDQWVxZ0F3SUJBZ0lJV3ZmTmxuV0c1MWt3RFFZSktvWklodmNOQVFFTkJRQXdIekVkTUJzR0ExVUUKQXhNVWNuTmhMbUYxZEc5MFpYTjBMbWxpYlM1amIyMHdIaGNOTVRreE1qRTVNREV6TWpBeldoY05Namt4TWpFMwpNREV6TWpBeldqQWZNUjB3R3dZRFZRUURFeFJ5YzJFdVlYVjBiM1JsYzNRdWFXSnRMbU52YlRDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQU9kZ2NhK1Z3U1ZjeHhTVGw2cURDK1BZeXhvK2RRNWgKRmZEOFJ5Q3dTRW0rMlpCZnlNMTRhcHVSV0FjRlgrMm1CaVgyWndlMDdLMmc3dERncXp3QjRCZk0yWlA2WkRjMApaZktlWEQ1R0hCbVIrZWhnZGc4dDY4VnFqL3B6cjNkWE5kQ09MTldSTWN1eHg5bktzenQ1ZTQ2U281MUZRSTNNClFseXRSaUNTejR4ZVVWbmgvM2hnNmgxeXhzR3ovcEJxcHRpbFNrRFJET2dQaENLcjNKODhDSGN6cGdISW13dkcKWDBLMlJYSkdKQWsrZWgySzRpWUxuaDk3UWZzSWJwa1QwY0hFYmhyUm1CUlJwenErRktleUhhZ1JTZ0c5Mks2cQpLVDVveWZ2VlFha1F2aGhuam9qaVVDREhDVW9VODEwMndyUWh3UmlZbnhYQUZBTlcrVUZra2hNQ0F3RUFBYU5DCk1FQXdIUVlEVlIwT0JCWUVGQmN6SEZZYWdUd0VuNGVNOVlacTZ6TS9QeFdFTUI4R0ExVWRJd1FZTUJhQUZCY3oKSEZZYWdUd0VuNGVNOVlacTZ6TS9QeFdFTUEwR0NTcUdTSWIzRFFFQkRRVUFBNElCQVFEVEE3WGkzbi9SQ09pZwpuTlRPdUFwYTJTMWxNTWR3bnkwZlNlNXdXSHd1UU1ody90bm1QazVyMWpqZzBpTTRmUGx0d2hRdTNXZnhyY2dECkZDdjBOTmlBZ1FUaTRLMWh3SWRoYjd1ZU1zWFFRdDRRMmdURlBwaHFaTHUzYnN2Ty9PM0EyK04vT3UwYW83V2oKeDgwVEFWUUE4ZjBIdlZWN3MwVGlqMWxPSmRiaEsrNXg2UEJsRmhobzI3UzJvTUlXQUtLQlgvZGtCbC9hS3RaeQo3N09zbzBjaTZCMW1FY2lseUtjZDVoR0xDYXd6TmZ3ejJaOVl4VG5udzNBQ2hCcGhJWkhFdVdIU09YYmhQenI0CjVQNnVLN1pURVVUR0hXOWQ4L3dUSk9SdGl3NUVKakFhV2lsdW40TDk3bXhxdktpL0xMRnlxOVhBOTNSeWxJNSsKbkJubkwxRFIKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo="
        hdr_name: jwt
        claims:
          - text: www.ibm.com
            name: iss
          - attr: AZN_CRED_PRINCIPAL_NAME
            name: sub
          - attr: AZN_*
  1. Create the IBM Application Gateway container.
podman run --hostname iag-test --name iag-test \
  --detach --publish 8443:8443 \
  --volume /tmp/iag_config:/var/iag/config \
  icr.io/ibmappgateway/ibm-application-gateway:23.10.0
  1. Use a browser to access the demo URL.
https://127.0.0.1:8443/static

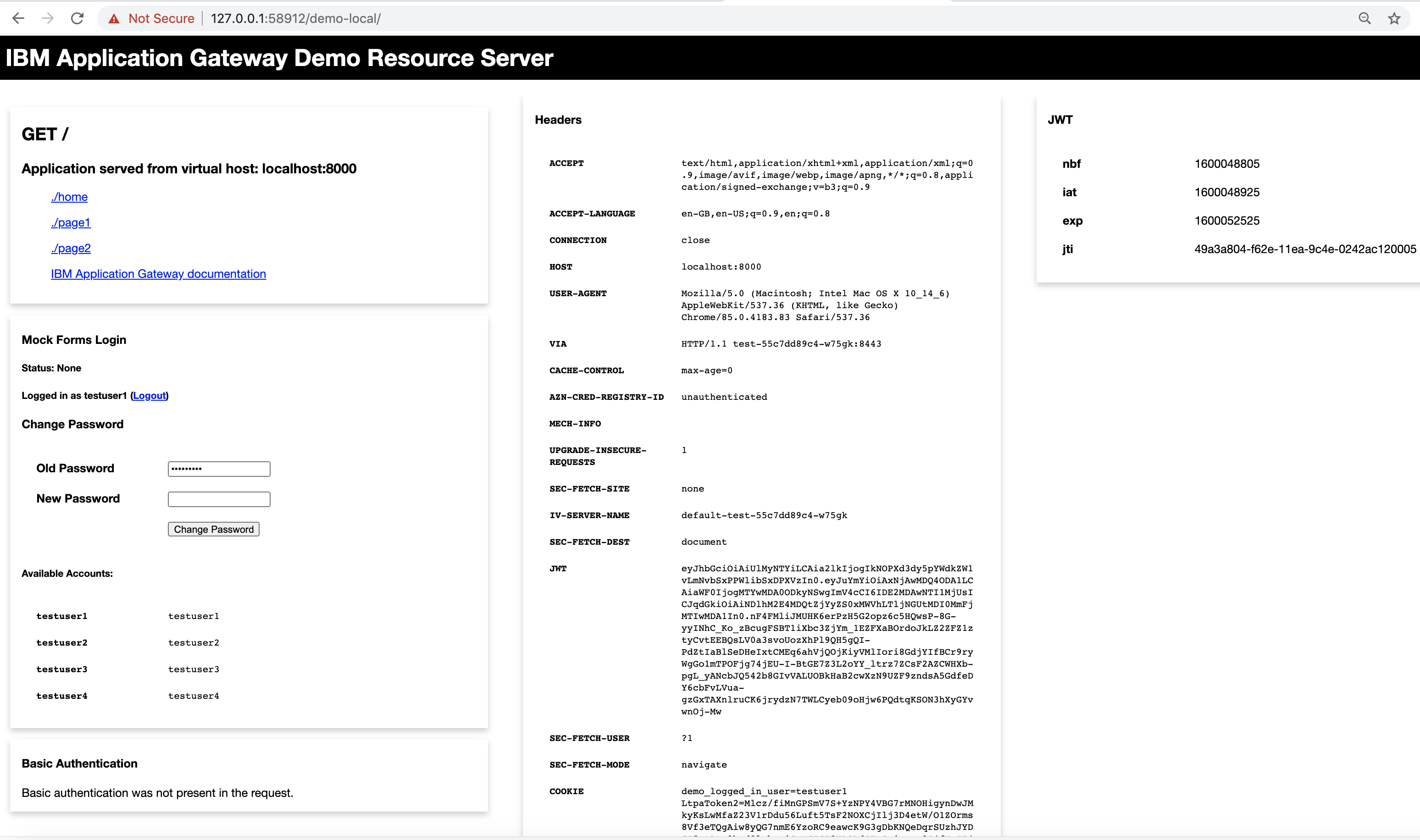

  1. The demo page is shown.

👍

Note

This page includes the following pieces that have been added by the IBM Application Gateway:
A JWT header has been added
The IV-USER, IV-GROUPS and IV-SERVER-NAME headers have been added
The JWT has been extracted"

3096
  1. Cleanup.
podman stop iag-test
podman rm iag-test
podman rmi icr.io/ibmappgateway/ibm-application-gateway:24.09.0
