Using pre-authenticaiton access policy to determine first factor authentication

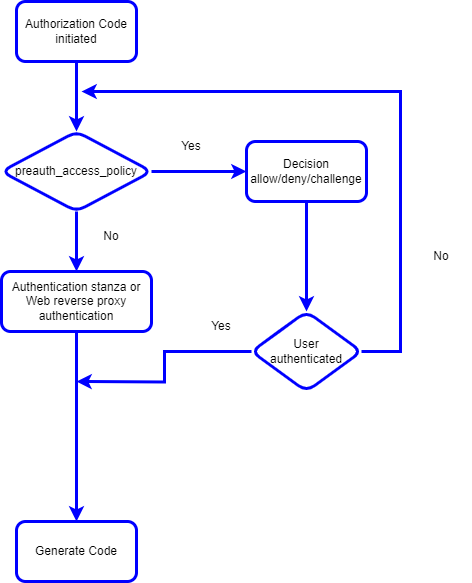

Scenarios exist where incoming OAuth/OIDC runtime parameters are used to determine the authentication method for a user, a pre-authentication access policy can now be configured when user authentication needs to be determined by an incoming Authentication Class Reference (ACR) value, scope or any protocol specific runtime parameter.

Configuration

A new definition level configuration parameter preauth_access_policy_id.


definition:
  id: 1
  name: OIDC Definition
  ...
  preauth_access_policy_id: test_policy
  ...
rules:
  access_policy:
    - name: test_policy
      content: '@rules/preauthpolicy.js'

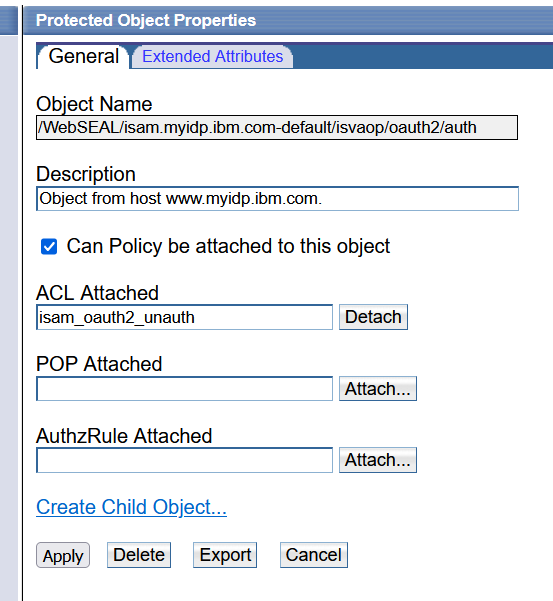

The Web reverse proxy needs to be updated to attach an unauth ACL to the auth endpoint.

Pre-authentication policy snippet

importClass(Packages.com.tivoli.am.fim.trustserver.sts.utilities.IDMappingExtUtils);
importClass(Packages.com.tivoli.am.fim.trustserver.sts.utilities.IDMappingExtCache);
importClass(Packages.com.tivoli.am.fim.trustserver.sts.utilities.OAuthMappingExtUtils);

var protocolContext = context.getProtocolContext();
var reqScope = protocolContext.getAuthenticationRequest().getAuthenticationContext().getScope();
var acr = protocolContext.getAuthenticationRequest().getAuthenticationContext().getAuthenticationClassReference();
IDMappingExtUtils.traceString("reqScope: " + reqScope);
IDMappingExtUtils.traceString("acr: " + acr);
if(acr == "silver"){
    var handler = new RedirectChallengeDecisionHandler();
	let url = "https://www.acme.ibm.com/mga/sps/authsvc/policy/username_totp";
	handler.setRedirectUri(url);
  	context.setDecision(Decision.challenge(handler));
}
else if(acr == "platinum"){
    var handler = new RedirectDenyDecisionHandler();
	handler.setRedirectUri("https://www.ibm.com");
	context.setDecision(Decision.deny(handler));
}
else if(acr == "gold"){
    var handler = new HtmlPageDenyDecisionHandler();
    handler.setMacro("@MESSAGE@", "Incorrect acr_values requested");
	handler.setPageId("error.json");
	context.setDecision(Decision.deny(handler));
}
else{

    IDMappingExtUtils.traceString("Allow");
    context.setDecision(Decision.allow());
}

Details about the available context and Decisions are available in the access_policy topic.
User context is not available in pre-authenticaiton access policy, since a user session is not established.

📘
Note
If the redirect challenge decision does not come back with a valid user session, the access policy will be executed with no prior context.
