Login with username

Suggest Edits

This article shows how a custom authentication mechanism can be used to create an authenticated session. The scenario employs username‑only authentication, which is not recommended for production deployments but is used here to introduce the following concepts:

  1. Custom page to collect the username
  2. Exchange of the username for a login session

It can be easily extended to add real forms of authentication, such as mobile push-based authentication using the IBM Verify app.

🚧

Caution!

This authentication mechanism must never be used as a production-ready flow. It is used here to illustrate the approach that can be taken to build a custom login flow. However, authenticating with a valid username without any additional challenges and safeguards is very weak and must never be used in real-world cases.

Overview of the flow

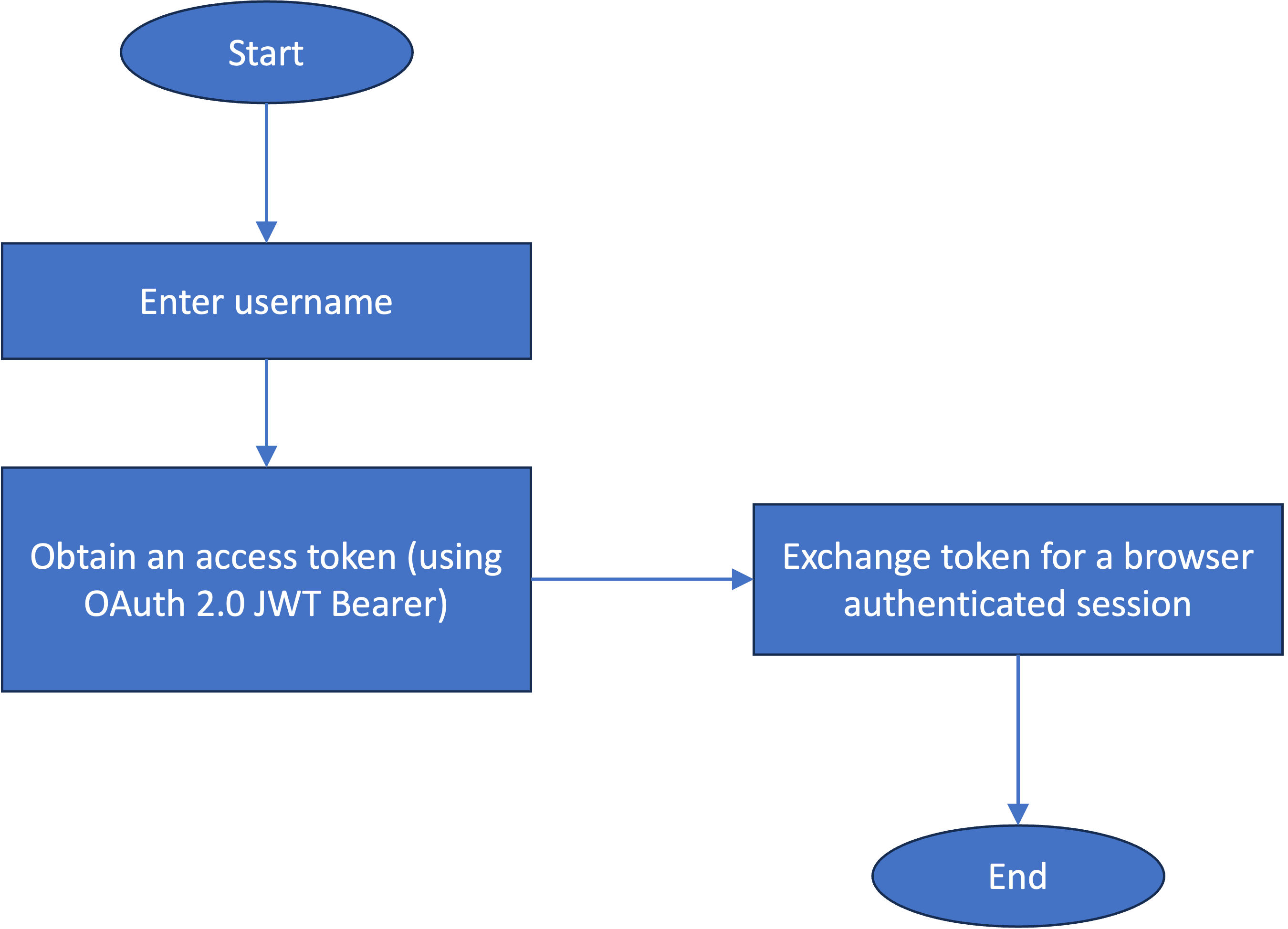

The flow begins by prompting the user to enter a username through a simple custom page. This username is then used as the sub claim in a JSON Web Token (JWT). The JWT is submitted through the OAuth 2.0 JWT Bearer grant flow to obtain a user access token. This access token is exchanged for an authenticated browser session using the session API.

2699

The flow can be enhanced to include authentication mechanism discovery for the user and then trigger more realistic authentication flows using Verify APIs.

Resources

This article makes use of importable file resources that can be found in the authenticate_with_username subdirectory of the verify-saas-resources GitHub repository.

For more information on the GitHub repository that contains supporting resources for example flows, see the Associated Assets section of the Flow Designer overview page.

Prerequisites

  1. IBM Verify tenant
  2. Flow designer enabled in your tenant
  3. IBM Verify SaaS Resources contents downloaded or cloned to your machine. For more information on how to achieve this, see parent page. The folder is referred here-on as $GIT_REPO.

Installation and configuration

Custom branding theme

This flow presents custom pages and so, a theme needs to be created to prevent affecting the flows using the default theme. There are two customized files:

  • custom_page1.html: This requests for the username.
  • custom_page2.html: This shows an error in the event that the flow fails.

Login to the IBM Verify admin console and follow the steps:

  1. From the main side menu, select "User experience" and click "Branding”.

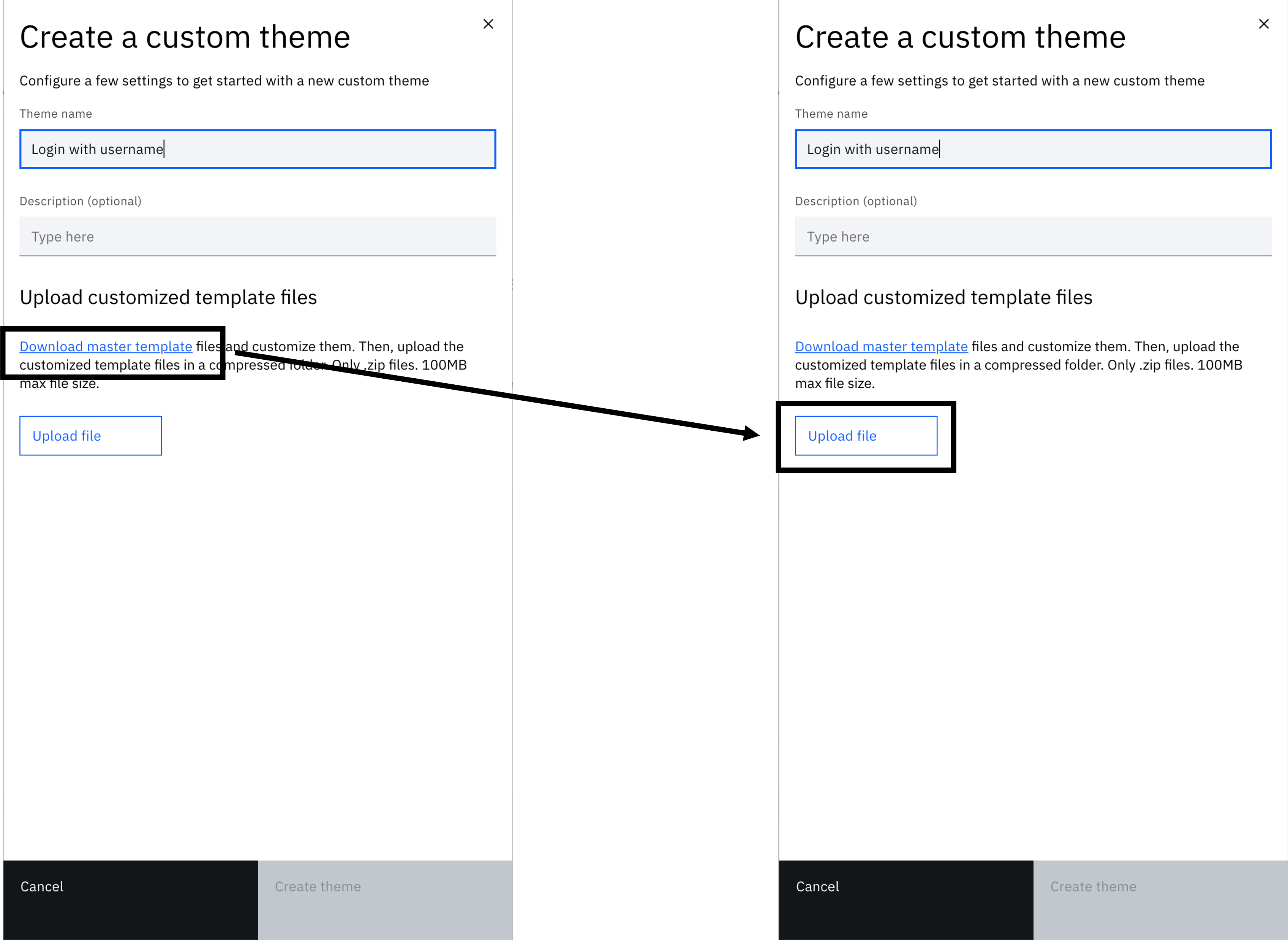

  2. Create a new branding theme called "Login with username". You can follow the steps mentioned here.

    3391

  3. After creation of theme, click the theme tile to view the folder structure.

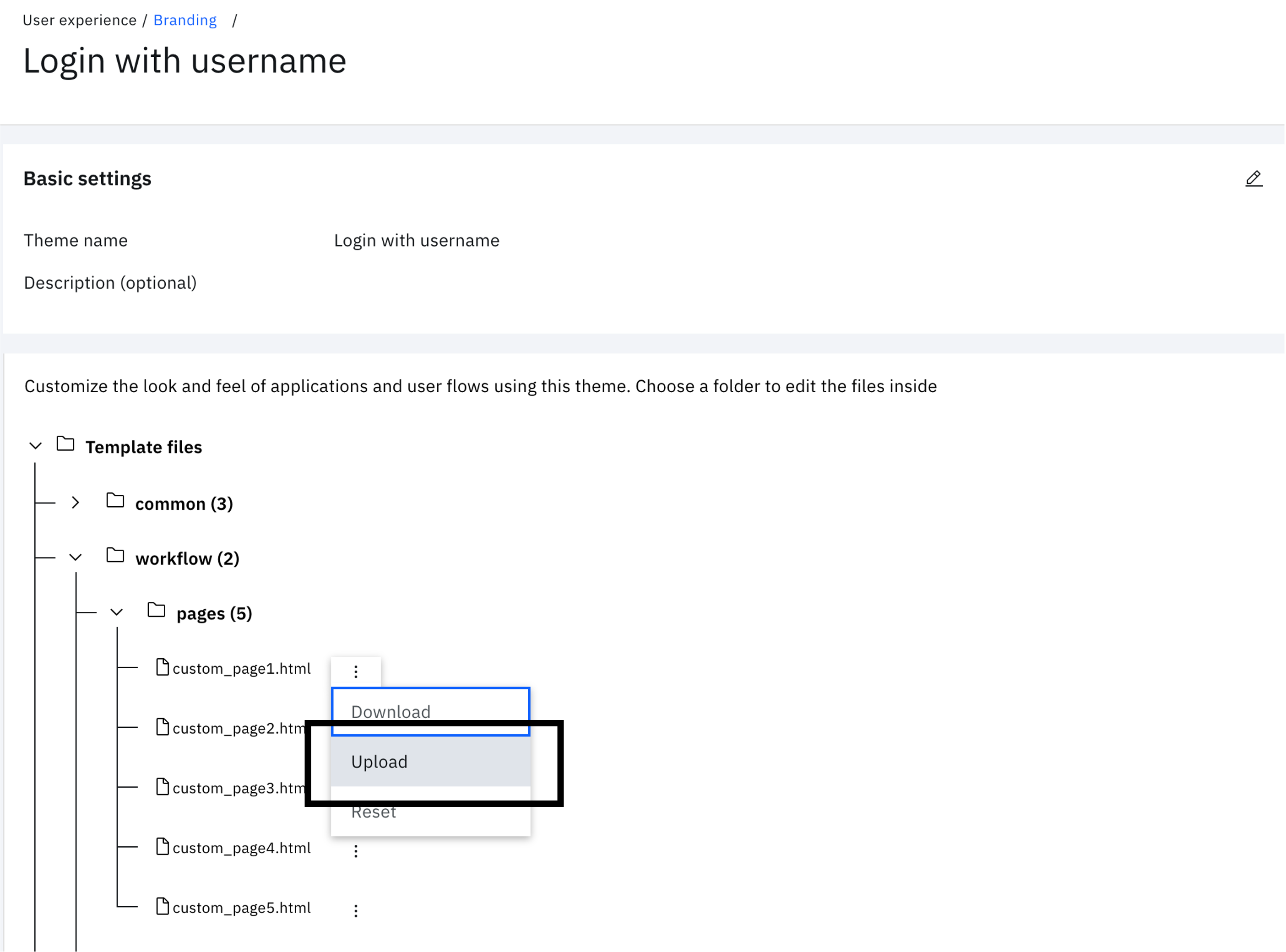

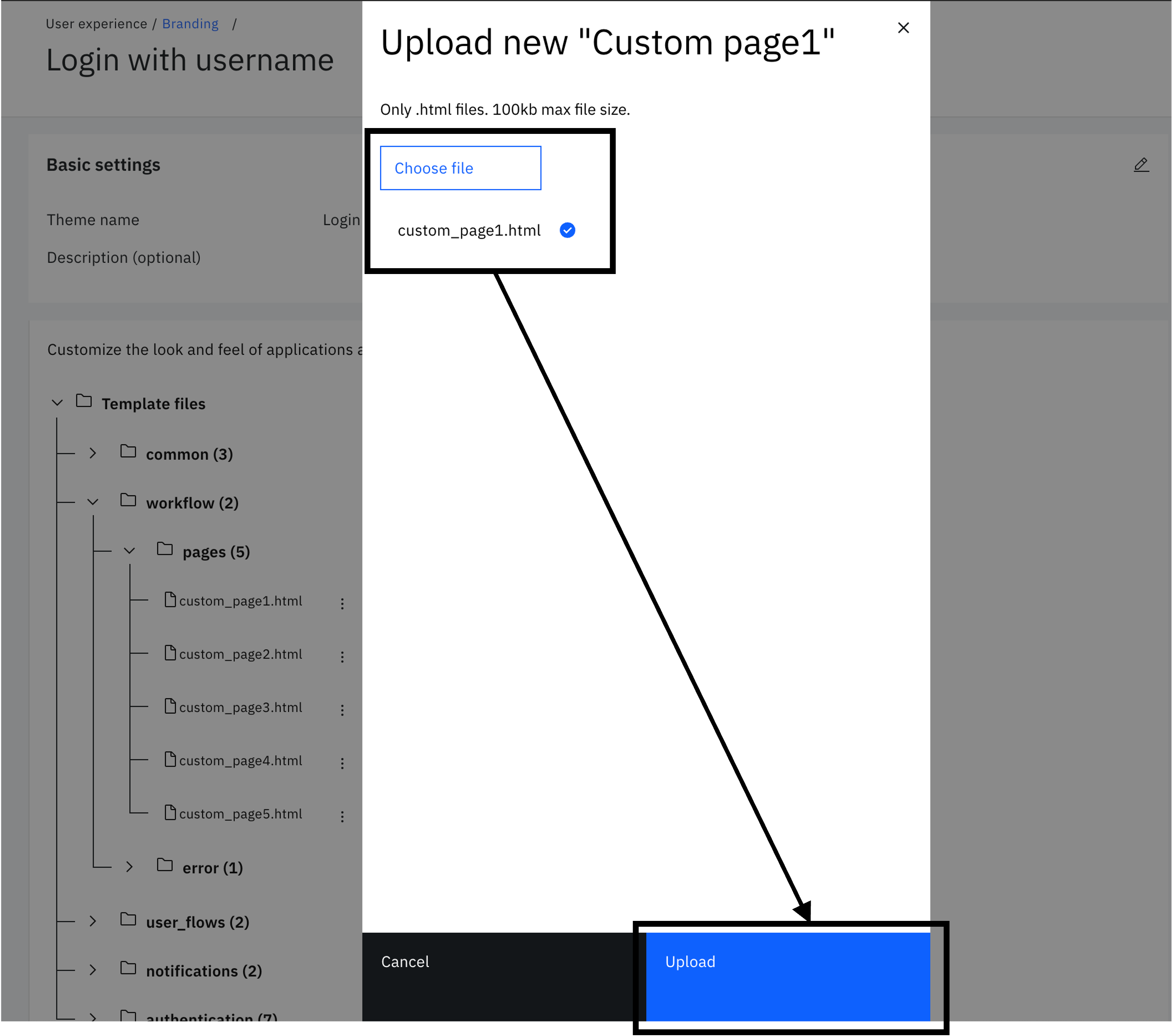

  4. Expand "workflow" > "pages" and click on the three vertical dots next to "custom_page1.html". Click "Upload".

    2809

  5. Choose "$GIT_REPO/flows/authenticate_with_username/theme/templates/workflow/pages/default/custom_page1.html" from the local folder. Then click "Upload".

    2809

  6. Similar to the previous step, under "workflow" > "pages", click the three vertical dots next to "custom_page2.html". Click "Upload".

  7. Choose "$GIT_REPO/flows/authenticate_with_username/theme/templates/workflow/pages/default/custom_page2.html" from the local folder. Then click "Upload".

Create OIDC application enabled with OAuth 2.0 JWT Bearer grant flow

The OAuth 2.0 JWT Bearer grant flow is used by the "Login with username" flow to obtain a user access token. This token is subsequently exchanged for an authenticated web browser session.

  1. On the left-hand menu, select "Applications" and click on "Applications"

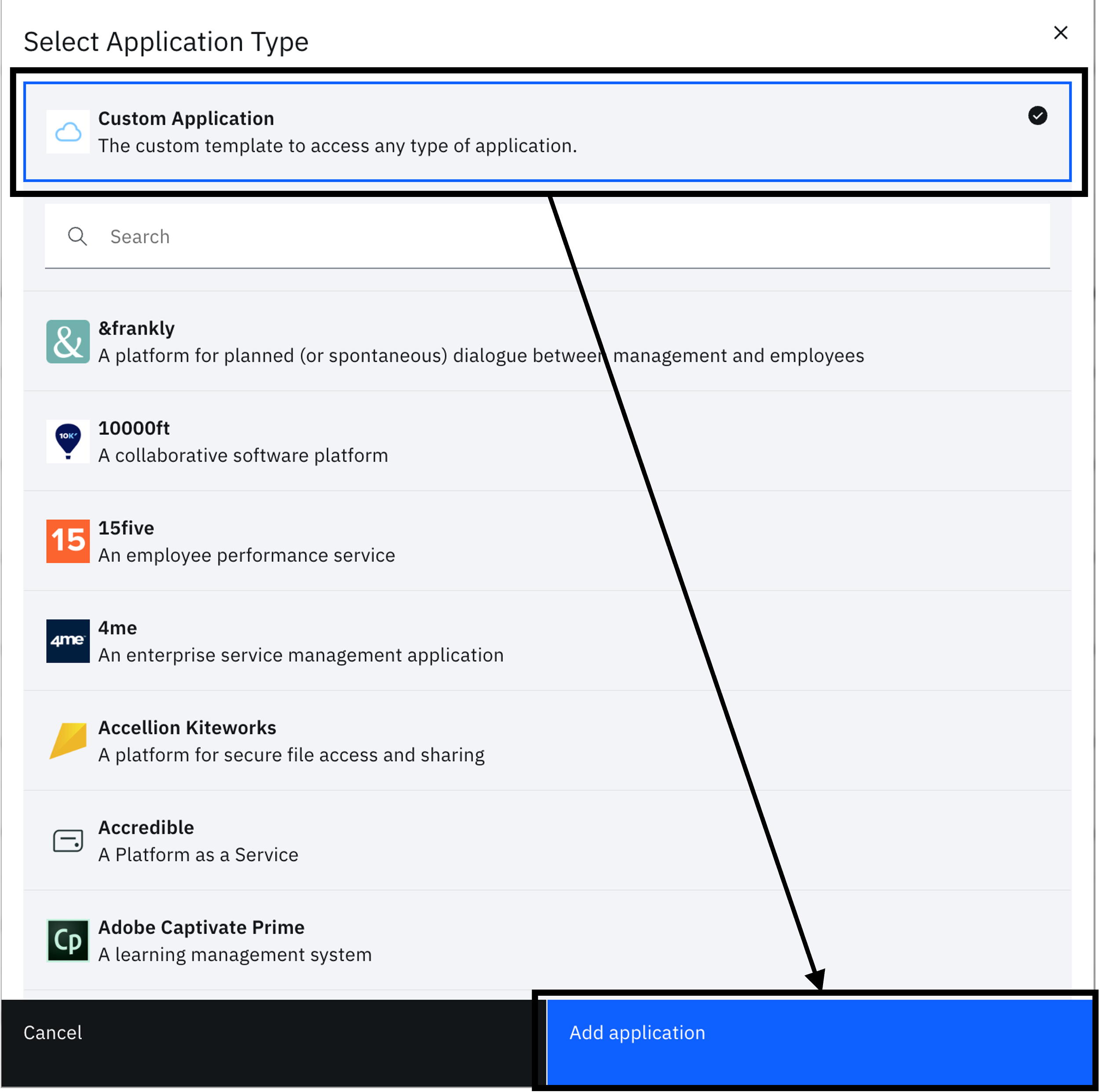

  2. Select "Add an application" to open the application catalog. Select "Custom Application" and click "Add application".

    2502

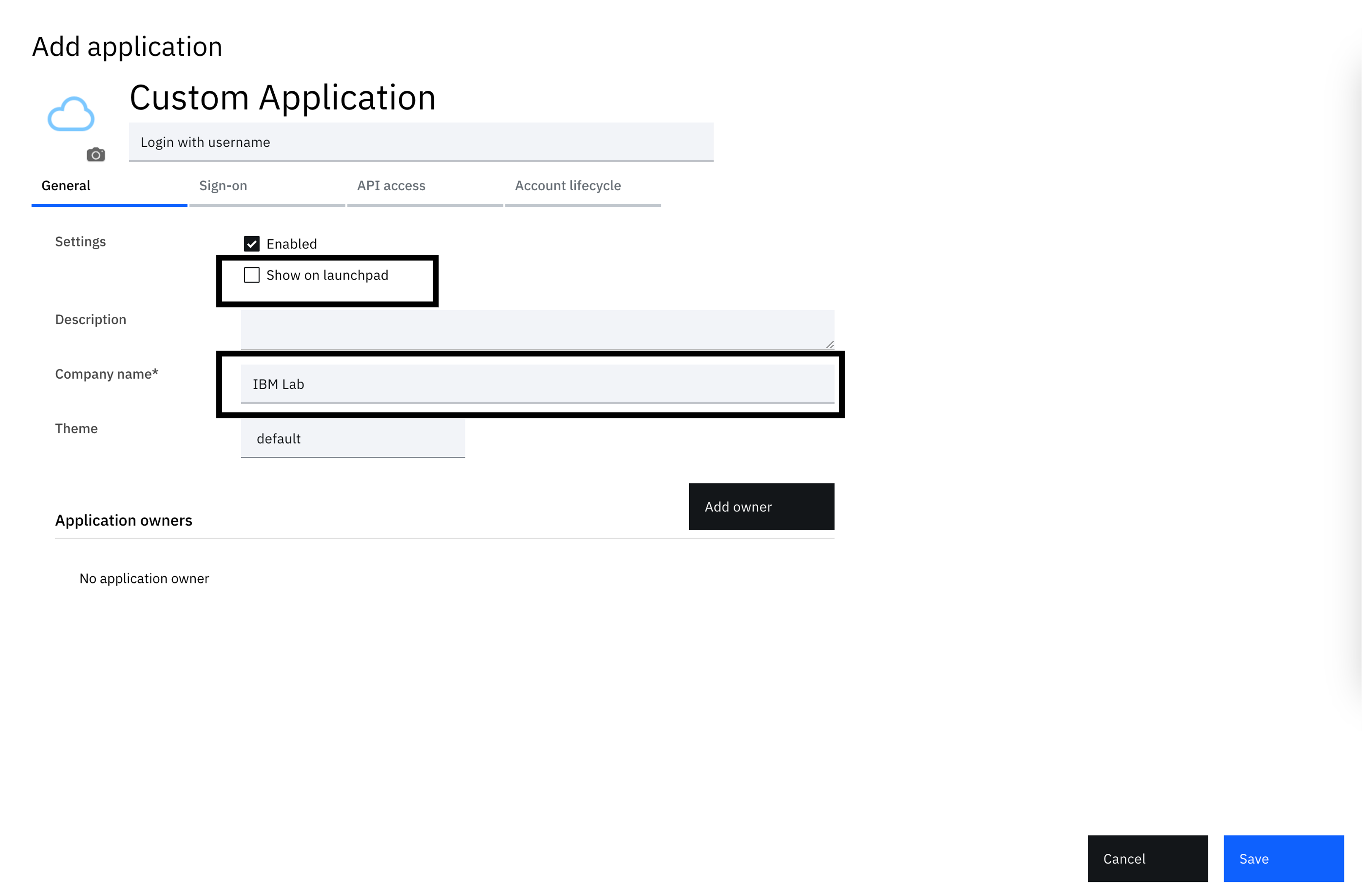

  3. The next screen is the application definition wizard. The starting tab shows general settings where you can configure specific application metadata. Here, uncheck the "Show on launchpad" checkbox and provide a company name. You can put "IBM Lab" for the company value.

    3295

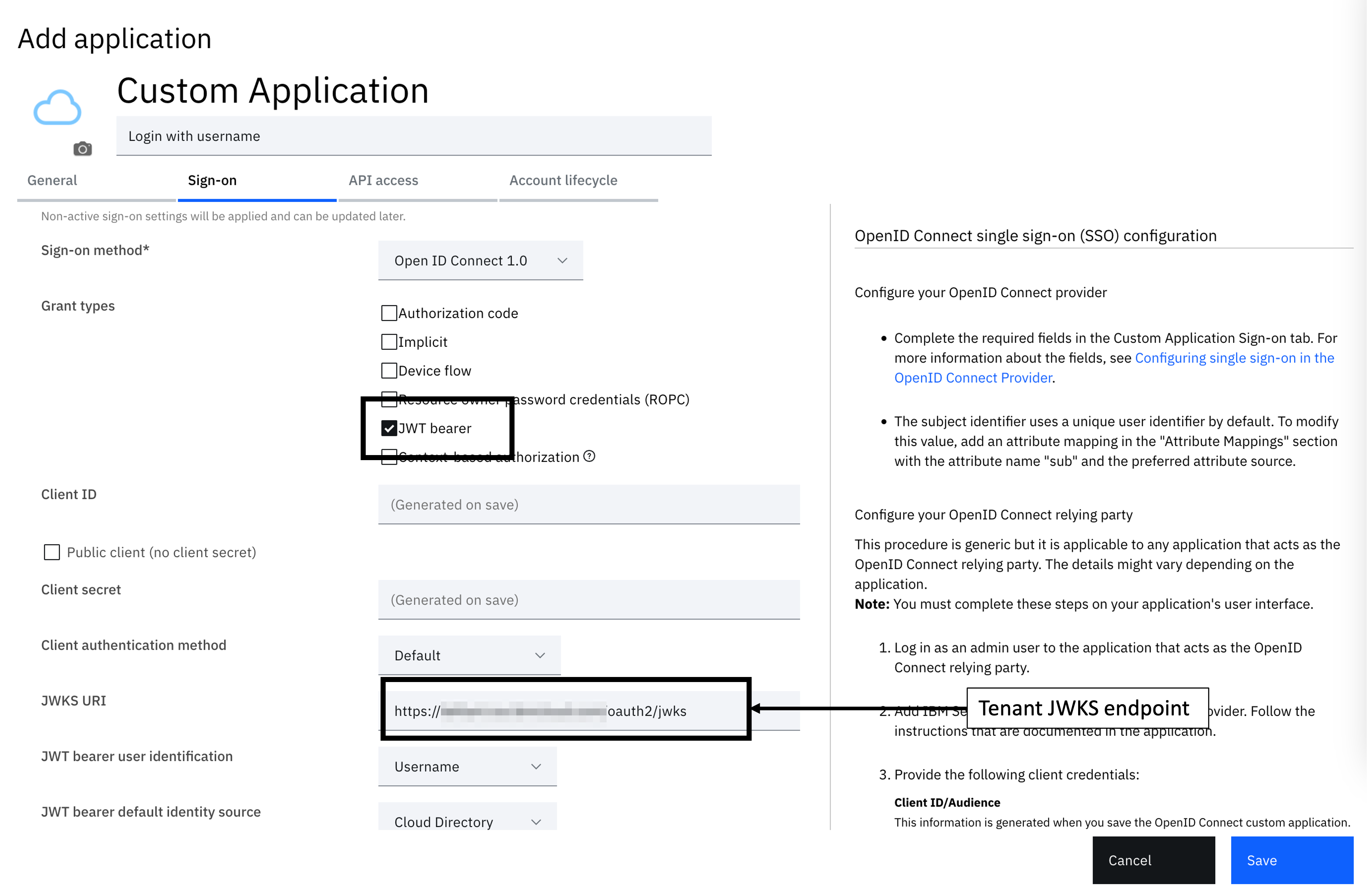

  4. Select the Sign-On tab to configure the application definition. There are a few options here to configure. Follow the steps to configure the application:

    1. Sign-on method - OpenID Connect 1.0
    2. Grant types - JWT bearer
    3. Public client (no client secret) - Enabled
    4. JWKS URI - https://yourtenant.verify.ibm.com/oauth2/jwks
    5. JWT bearer user identification - Username
    6. Under "Token settings", Access token expiry (secs) - 300
    3776

  5. Save the configuration

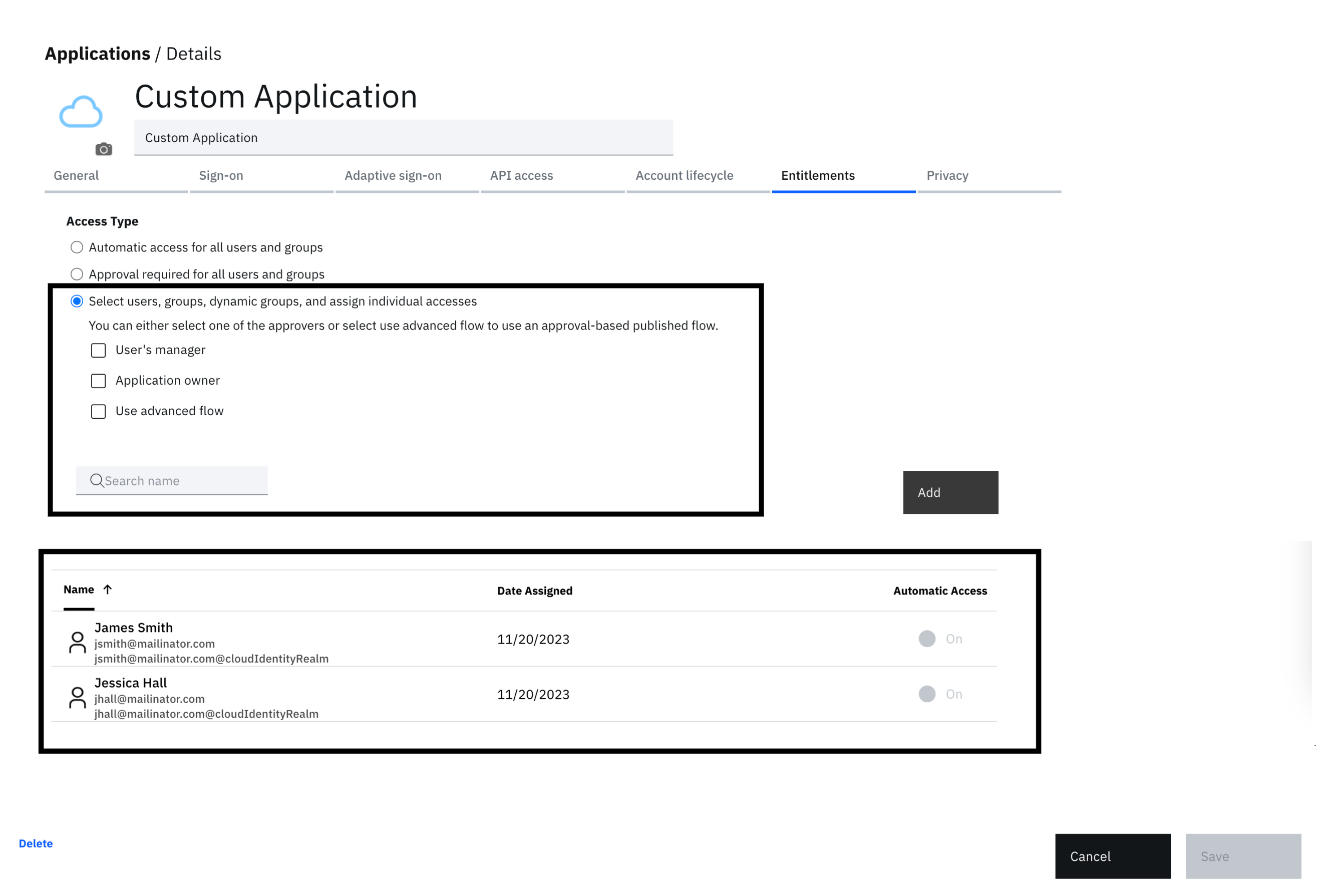

  6. You are redirected to the Entitlements screen. Given that the flow authenticates users using only a valid username, limit access to designated users or groups for testing purposes, as demonstrated.

    3538

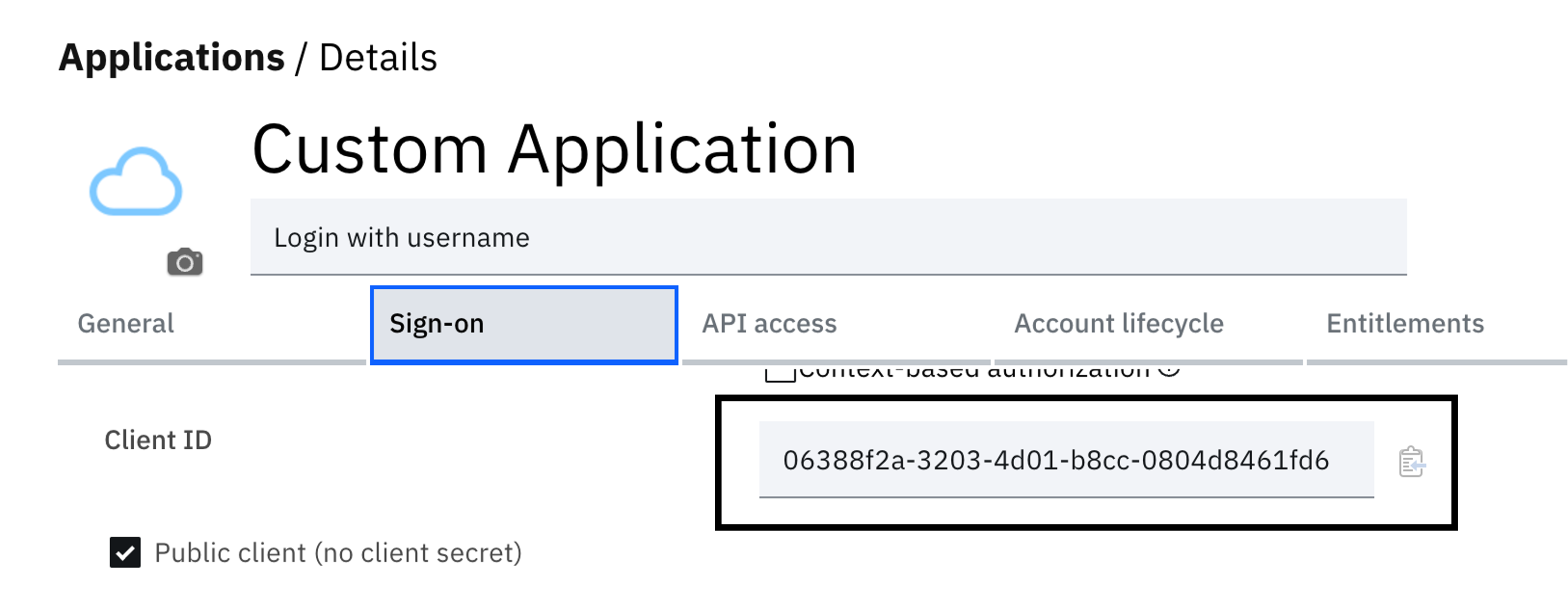

  7. Navigate back to the "Sign-on tab and copy the OIDC Client ID. Copy this to a text file.

    3341

🚧

Caution!

Given the weak authentication used in this flow, add only designated users to the application's Entitlements tab. Ensure these users are not administrators or assigned roles with elevated access, as this could inadvertently compromise the security of your tenant.

Similarly, ensure that these users don't have access to any business critical applications through this login process.

Import the workflow

  1. From the main side menu, select "User experience" and click "Flow designer”.

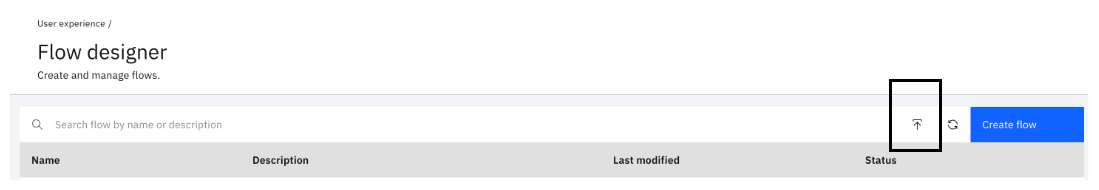

  2. Click the import icon next to the "Create flow" button.

    4322

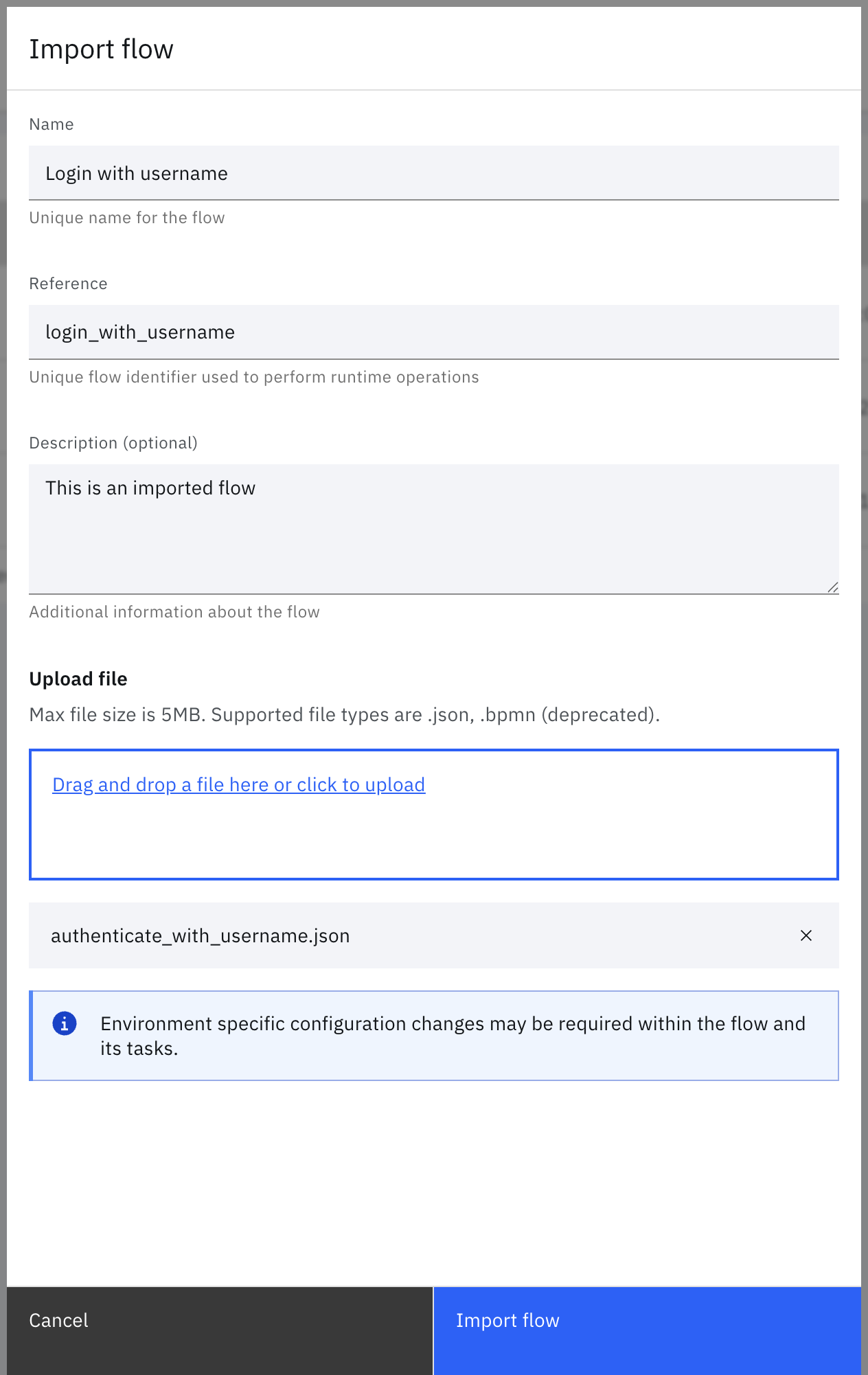

  3. Fill in the details and upload the file located at "$GIT_REPO/flows/authenticate_with_username/authenticate_with_username.json". Two types of file formats are supporting during import:

    (1) JSON.

    (2) BPMN.

    The bpmn format is set to be deprecated as per the timelines mentioned here. It is recommended to use the JSON format instead.

    1324

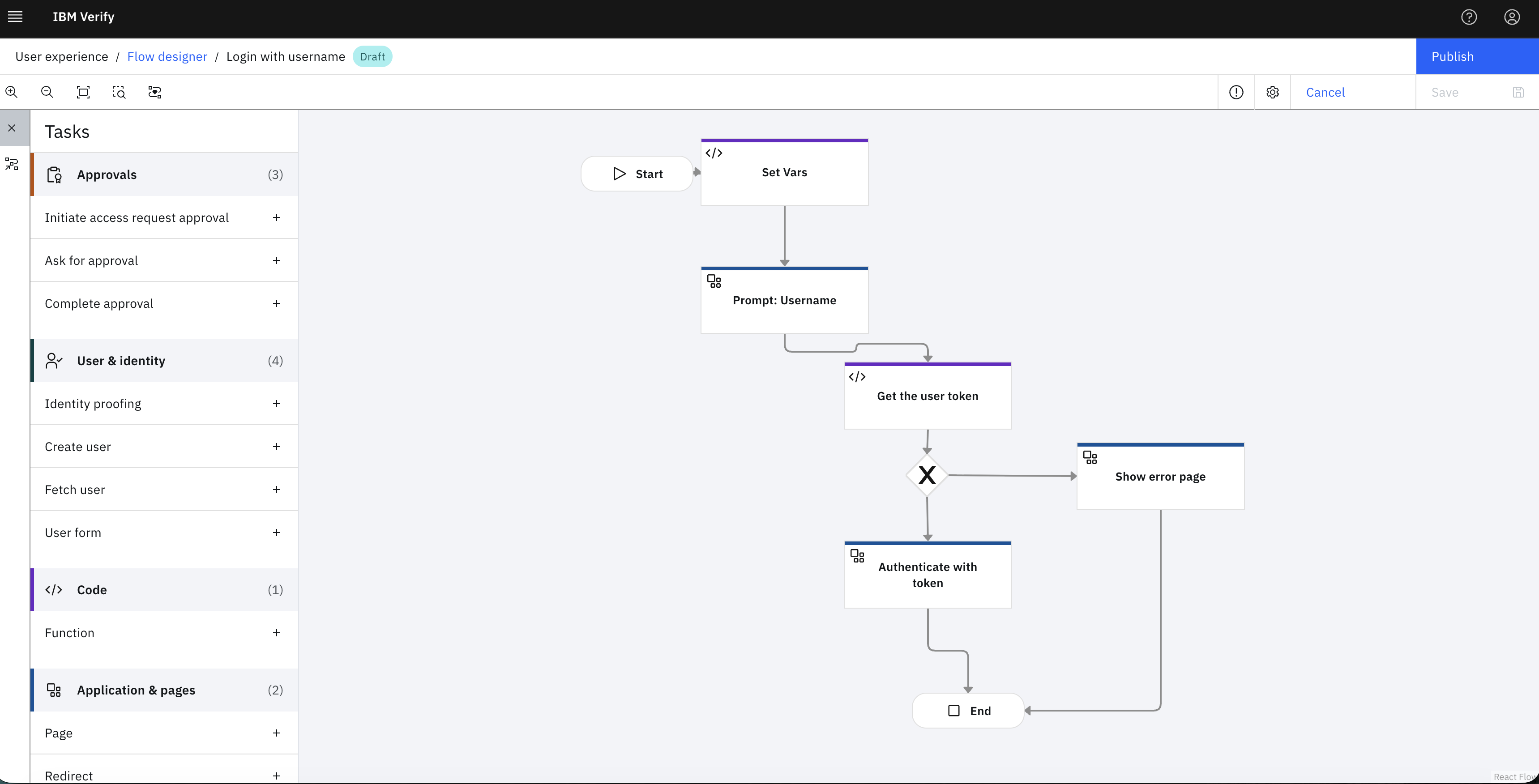

  4. Click "Import flow". This opens the designer.

    2738

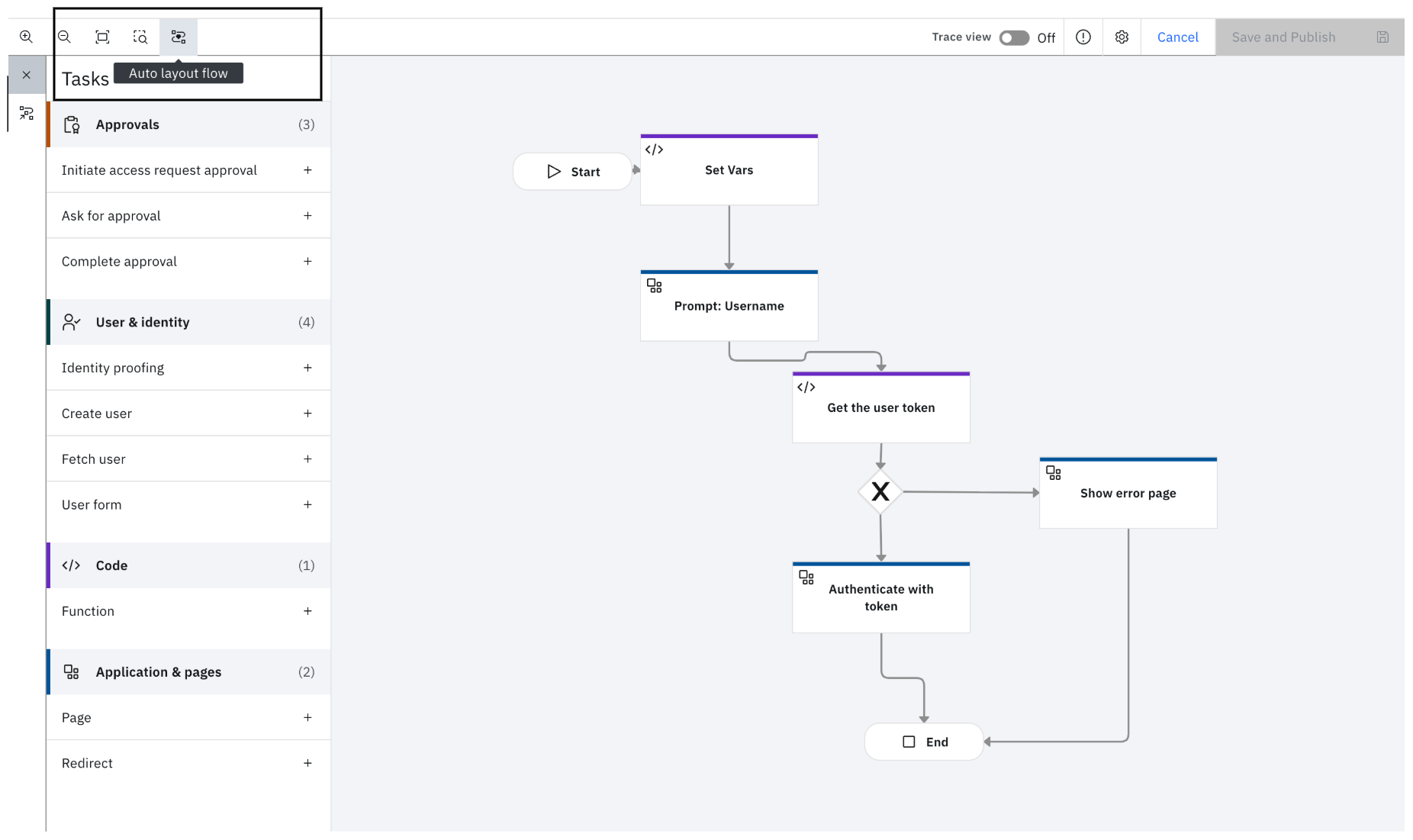

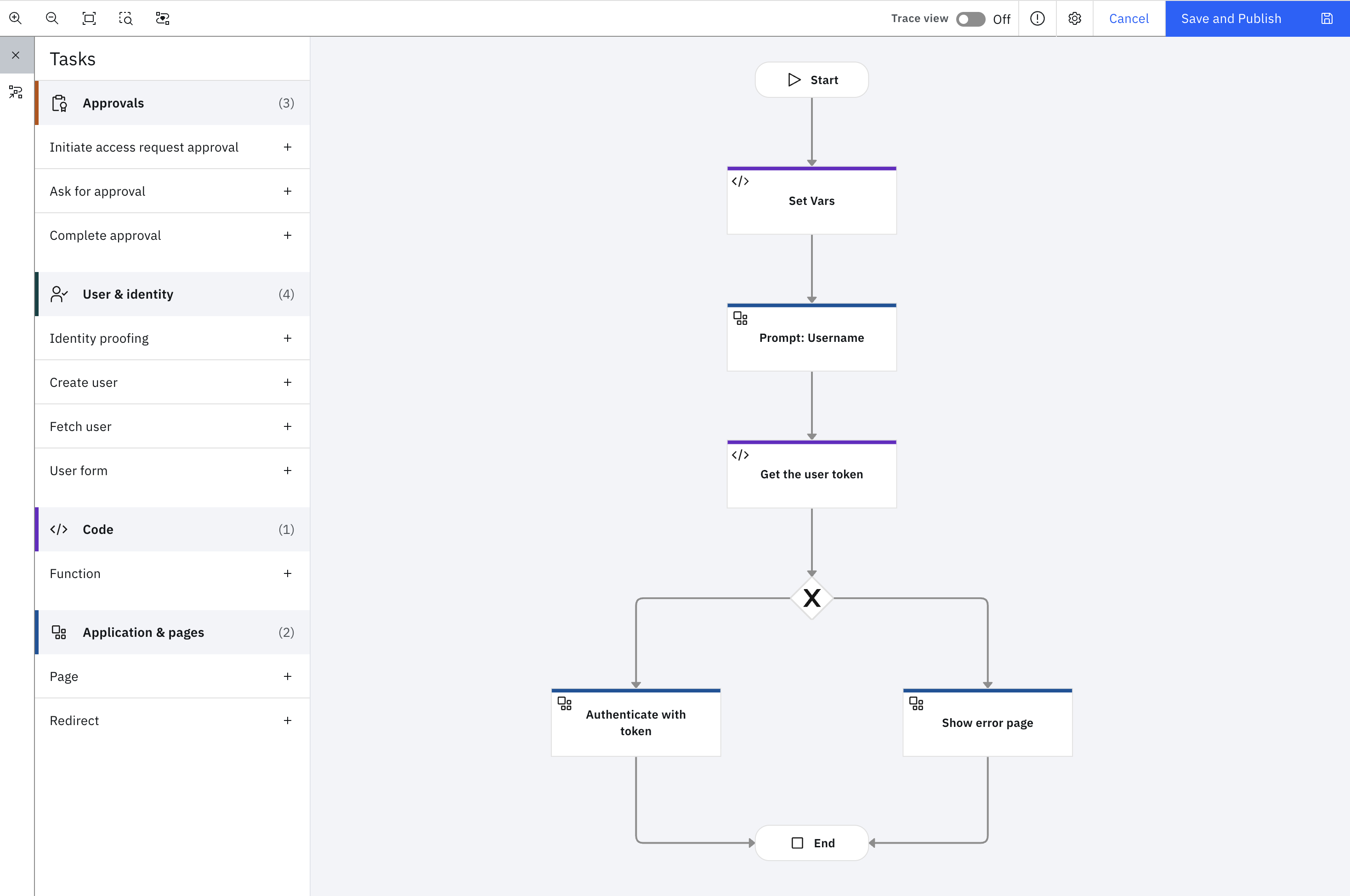

  5. You can use the 'Auto Layout Flow' option to beautify the flow diagram as shown.

    1852
    [block:image] { "images": [ { "image": [ "https://files.readme.io/c1cfafa5c15f59a9fa788a17d0b675fc521143893c38be0dfa8ee5ae70d2b99e-flow_designer_model_beautified.png", "c1cfafa5c15f59a9fa788a17d0b675fc521143893c38be0dfa8ee5ae70d2b99e-flow_designer_model_beautified.png", 2938, 1950, "#f3f3fb", null, "69dc9f040abdd0c1148929fb" ] } ] } [/block]

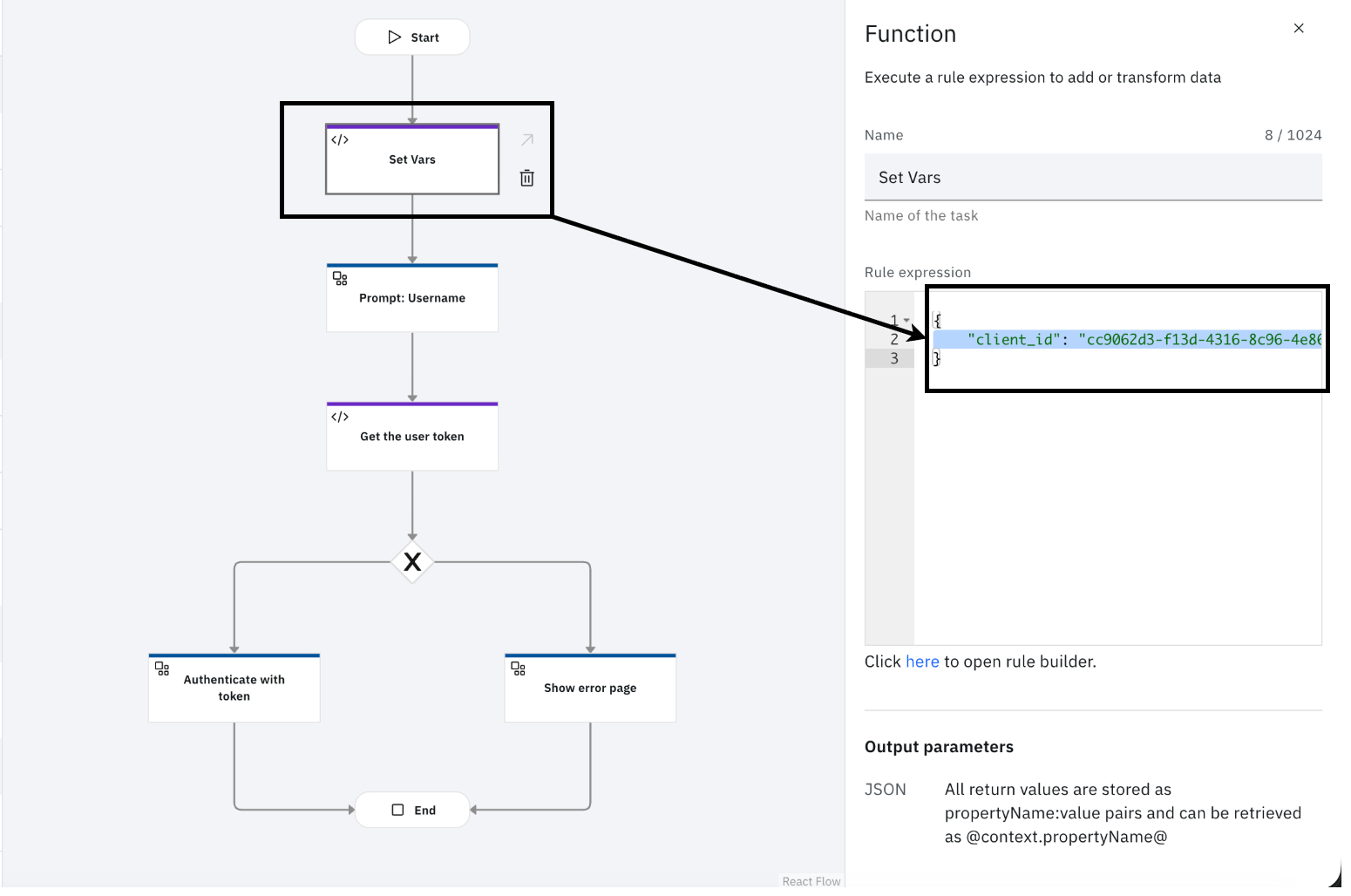

  6. Select the "Set Vars" task and modify the "client_id" value with the one from the OIDC application.

    3657

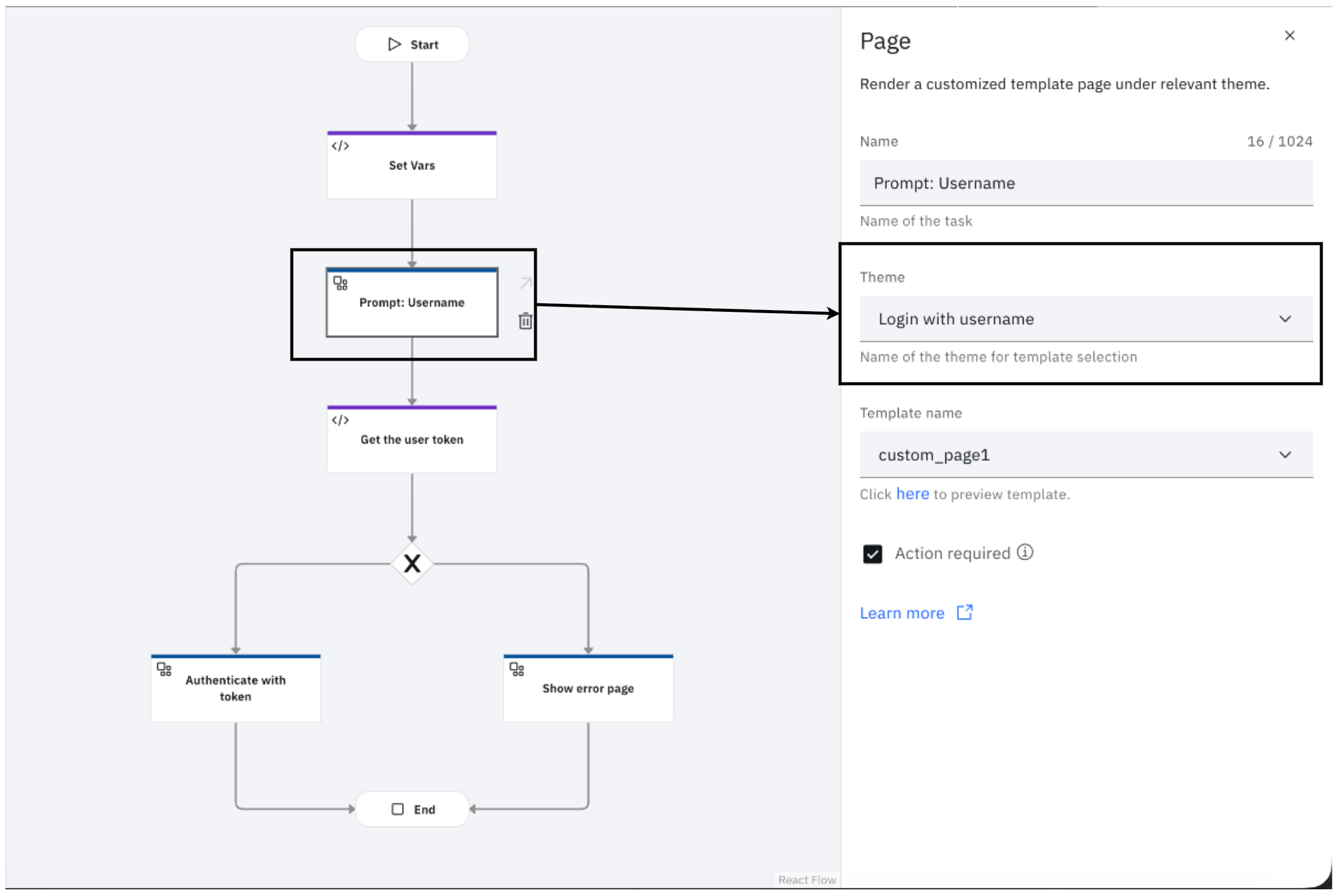

  7. Select the "Prompt: Username" task and set the theme to the "Login with username" theme.

    3675

  8. Click "Save" and "Publish".

Running the flow

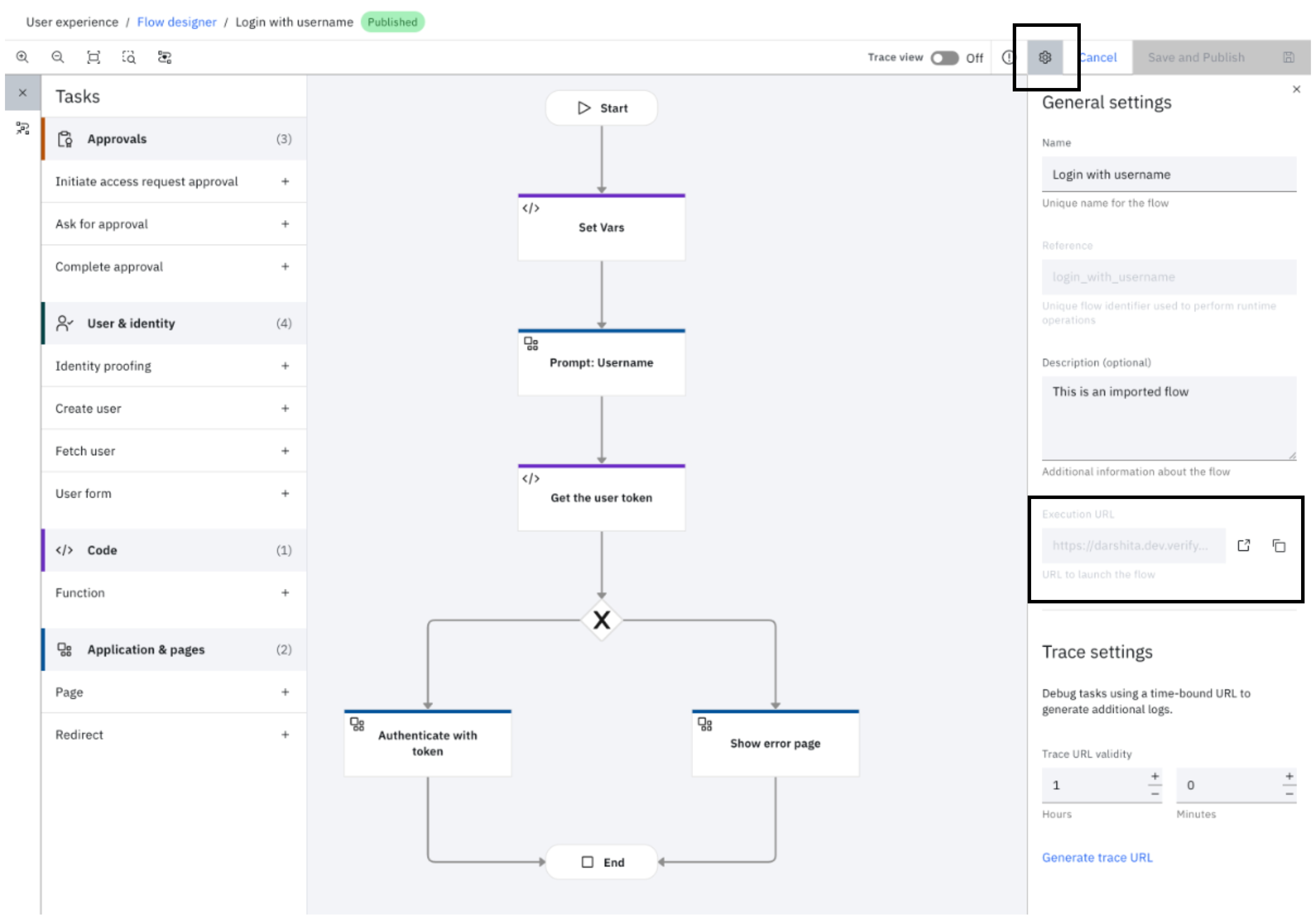

  1. In the flow designer, click the settings icon in the top right corner, next to 'Save and Publish'. Copy the "Execution URL" from the General settings.

    2704

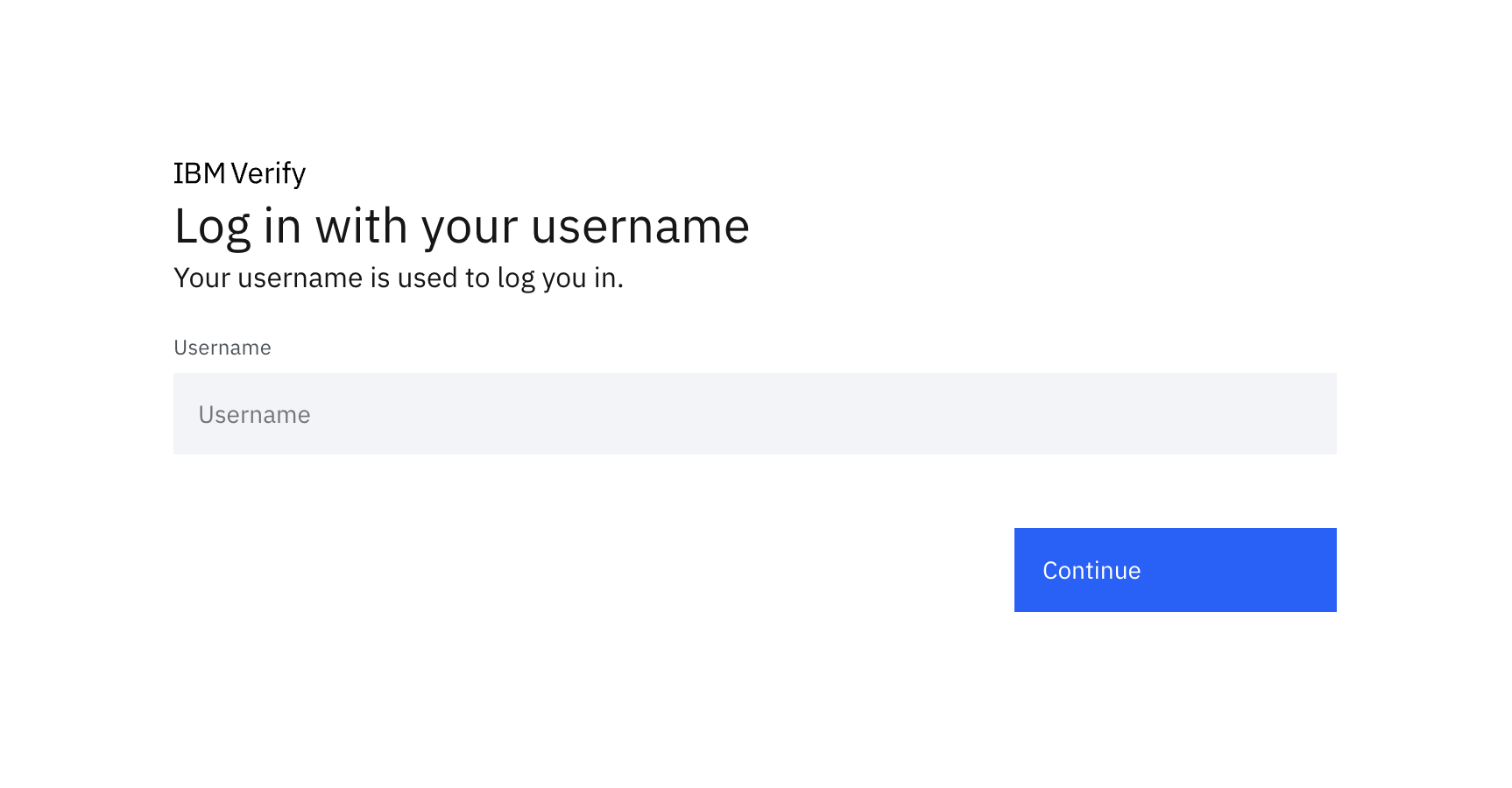

  2. Open an incognito tab or a completely different browser and navigate to the URL.

    1638

  3. Enter the username and click "Continue".

  4. If the username is valid, the user will be logged in and see the application launchpad.

📘

Note

This username must belong to a user account in the native Cloud Directory realm ("cloudIdentityRealm") and not be stored as a user belonging to an external identity source like IBMid. If you want to use an external identity source, append "@IDS_REALM". For example, for IBMid users, append "@www.ibm.com".

Unpacking the flow

This is an optional section and dives into the details of the workflow.

Prompt: Username task

This task presents the custom page that shows the username field. The HTML name attribute is set to "username". Any submitted parameters are stored in the flow context. Thus, when the HTML FORM is submitted, the flow context is updated with "username" as the property name and the value provided by the user.

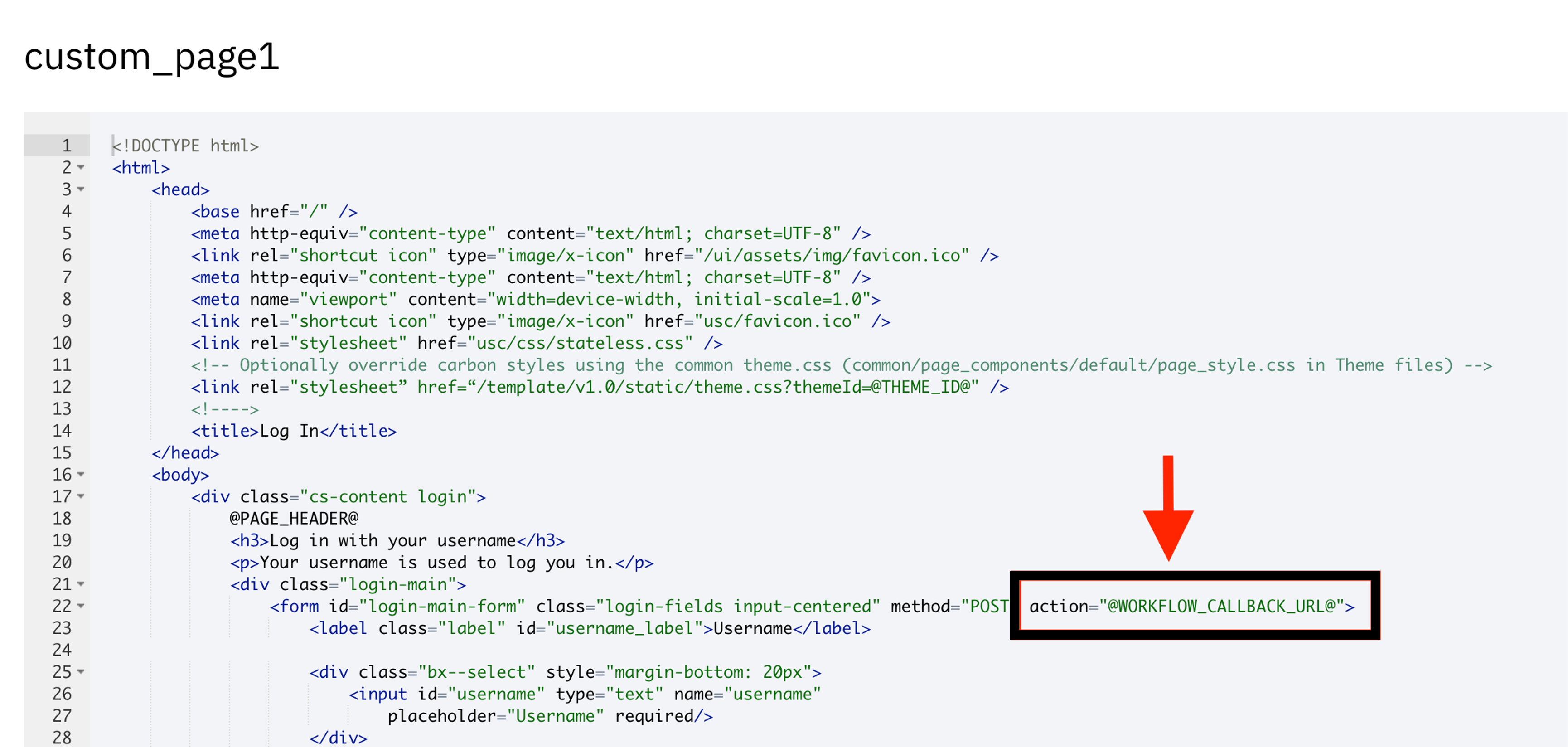

The HTML FORM action URL leads back to the workflow referenced by the @WORKFLOW_CALLBACK_URL@ macro in the page template.

3460

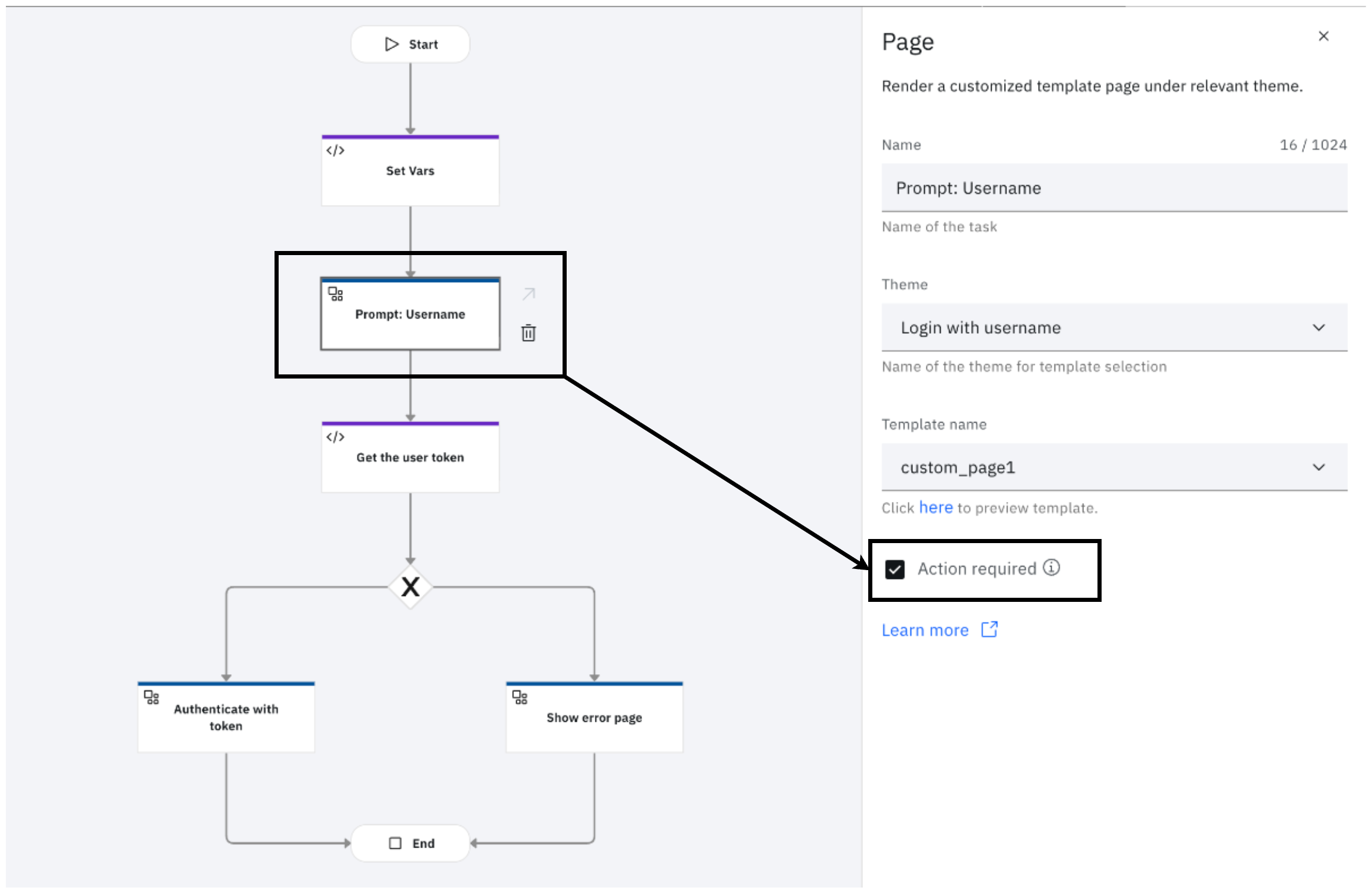

The ‘Action required’ checkbox, shown in the following image, links the form‑submission event to the point at which the workflow should resume. When selected, it instructs the flow to pause and wait for user input before continuing.

2334

Read more about the Page task here.

Get the user token

This task uses the common expression language used across Verify for scripting. It does the following:

  1. Generates a signed JSON Web Token using the jwt.sign function. This JWT is signed by a personal certificate in the tenant's certificate management store. ctx.username is the username submitted by the user.

    - context: >
    userJWT := jwt.sign({
        "sub": ctx.username,
        "iss": "https://" + ctx.__tenantid,
        "aud": "https://" + ctx.__tenantid + "/oidc/endpoint/default/token",
        "jti": genUUID()
    }, {})

  2. Calls the tenant's token endpoint to request for an access token using the OAuth 2.0 JWT Bearer grant flow.

    - context: >
    roauth := hc.Post("https://" + ctx.__tenantid + "/oidc/endpoint/default/token", {"content-type": "application/x-www-form-urlencoded"},
        jsonToFormURLEncoded({
            "client_id": ctx.client_id,
            "client_secret": has(ctx.client_secret) ? ctx.client_secret : "",
            "assertion": context.userJWT,
            "grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer"
        }, true))

  3. Generates the URL to redirect the browser and create the login session.

    - return: >
    {
        "result": "true",
        "loginURL": "https://" + ctx.__tenantid + "/v1.0/auth/session?access_token=" + context.roauth.responseBody.access_token
            + "&redirect_url=" + (has(ctx.Target) ? ctx.Target : "https://" + ctx.__tenantid + "/usc")
    }

Once this function task executes, the flow context has two additional properties:

  • result: This indicates if the token was generated successfully
  • loginURL: This is the session endpoint to which the browser needs to redirect to create a user authenticated single sign-on session.

The wrap

This flow allows a user to authenticate by just providing a valid username. It introduced the key concepts required to build an authentication flow through APIs or non‑native authentication methods. This is not expected to be deployed in a real production environment, given the obvious possibility of exposure and the reader is expected to exercise adequate caution, as indicated throughout the guide.

💎
