Aquera (HR feed and provisioning)

Suggest Edits

Introduction

The Aquera Platform as a Service is a cloud-based service that provides multi-purpose SCIM gateway services and out-of-the-box connectors for user provisioning/deprovisioning, HR application user onboarding/mastering, delta account aggregation, file operations and compliance automation, password synchronization, and privileged account password validation and rotation.

IBM Security Verify is born-in-the-cloud IDaaS platform, provides comprehensive identity and access management capabilities from cloud. This is the next-generation IDaaS platform delivering identity and access management use cases for employees (B2E), businesses (B2B) and consumers (CIAM). Leveraging Aquera as a SCIM gateway with IBM Security Verify delivers seamless inbound integration with HR applications such as Workday, Successfactors, BambooHR, Oracle HCM Cloud, SAP HR. Additionally IBM Security Verify provides SCIM application template for outbound provisioning that allows connectivity with Aquera and support outbound provisioning with Aquera enabled provisioning adapters.

The integration is broadly divided in two types of use cases

  1. Inbound HR integration
  2. Outbound provisioning
850

Inbound HR integration

Aquera’s HR Onboarding Bridge masters users (imports employees or customers) from any human capital management application, applicant tracking system, or CRM into IBM Security Verify. The bridge enables HR-driven, real-time, automated onboarding and offboarding of employees or customers from your IT applications and infrastructure.

When an employee joins an organization and is created in the HR application, the person is automatically provisioned into the IBM Security Verify Cloud directory by the Aquera Onboarding Bridge. From there, the person can be further auto-provisioned to the various Cloud or on-premises applications enabled with birth-right-access.

Likewise, when a person is marked as a leaver in the HR application, the Aquera Onboarding Bridge automatically updates IBM Security Verify. The person's access is automatically revoked from IBM Security Verify and respective provisioned applications.

Check out the out-of-the-box HR applications supported by Aquera.

Outbound provisioning

IBM Security Verify platform provides a set of out-of-the-box adapters for provisioning to SaaS applications. Provisioning to on-premises repositories like Active Directory is provided by a lightweight containerized Identity Provisioning Bridge. Additionally, the custom application template provides a SCIM client that allows any SCIM enabled application to be integrated for outbound provisioning. This same SCIM client that can be configured with Aquera’s Account Provisioning Gateway to integrate with Aquera-supported outbound provisioning adapters.

The Aquera Account Provisioning Gateway translates identity management platform SCIM requests into REST-based API calls, SOAP/webservice-based APIs calls, SQL commands, LDAP operations, robotic automations, SDK library calls and queue messages across your entire IT infrastructure covering all the places where your users have accounts.

Check out the Account Provisioning Gateway provided by Aquera.

Pre-requisites

Creating Aquera Domain

Make sure you have created an Aquera account and have administrative access for the same. If you do not have an Aquera account, you will need to contact Aquera support through https://www.aquera.com/.

Once you have the Aquera account, it can be accessed using: https://<your_domain>.aquera.io

Getting IBM Security Verify account

Make sure that you have created a IBM Security Verify tenant.

Employee data synchronization to Verify from HR applications via Aquera

The Aquera Identity Integration Platform as a Service closes the connectivity gaps for real-time identity governance and lifecycle management workflows. The platform offers SCIM gateway services for account provisioning and aggregation. Aquera provides out-of-the-box connectivity from any HR application to IBM Security Verify.

Aquera will act as a bridge between IBM Security Verify and HR applications. Follow the steps below to orchestrate employee data synchronization across IBM Security Verify and the HR application.

Onboarding IBM Security Verify with Aquera

Steps

  • Login to your Aquera account using: https://<your_domain>.aquera.io.
  • Click on “Applications”
  • Click on “Add Application”
1616
  • Search for “Verify” from the catalogue
  • Click on “IBM Security Verify” icon
693
  • Provide the details for.
    • Display Name: Any name of your choice
    • Tenant: Fully qualified domain name of Verify tenant
    • Username: Client ID of API Client
    • Password: Client secret of API Client
885
  • Click “Save Changes”

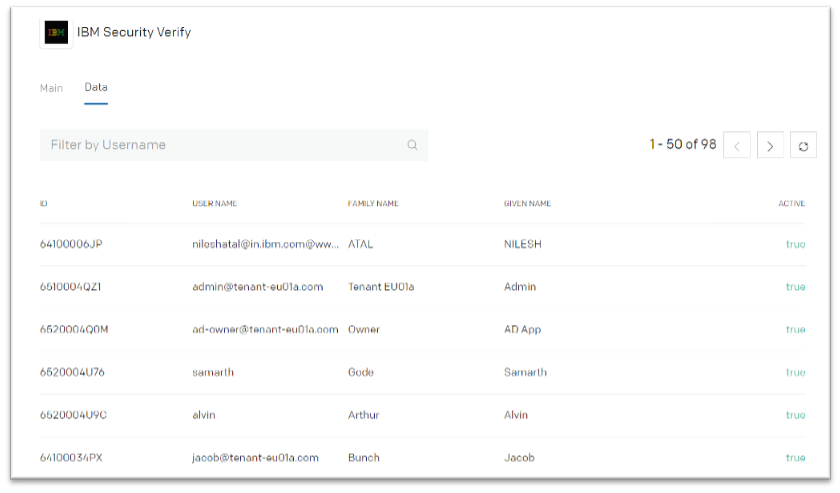

  • Click on the Data tab.

If the configuration details are correct, the user records will be fetched from the IBM Security Verify tenant.

840

Configuring an inbound HR integration

There are many popular HRMS solutions available in the market today such as SuccessFactors, Workday, BambooHR etc. It is essential to be able to synchronize employee data from HRMS providers with IBM Security Verify. This can be easily done using the Aquera HR onboarding bridge.

This section describes the detailed steps required to setup BambooHR as source HRMS application which feeds employee data to IBM Security Verify.

BambooHR employee data synchronization with Verify via Aquera

  • Login to your Aquera account using: https://<your_domain>.aquera.io.
  • Click on “Applications”
  • Click on “Add Application”
  • Search for “BambooHR” from the catalogue

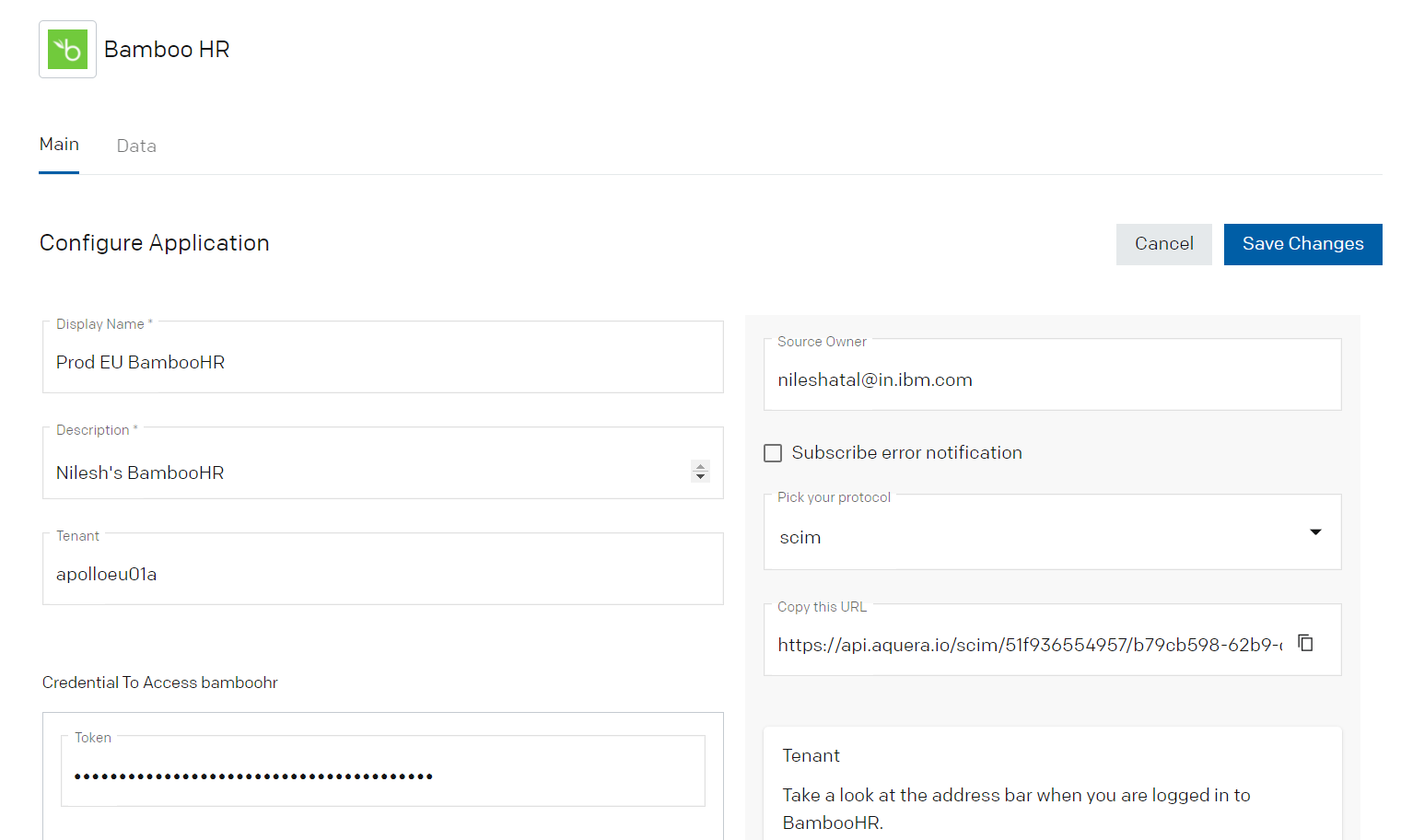

  • Click on “BambooHR” icon
673 1521
  • Save the changes

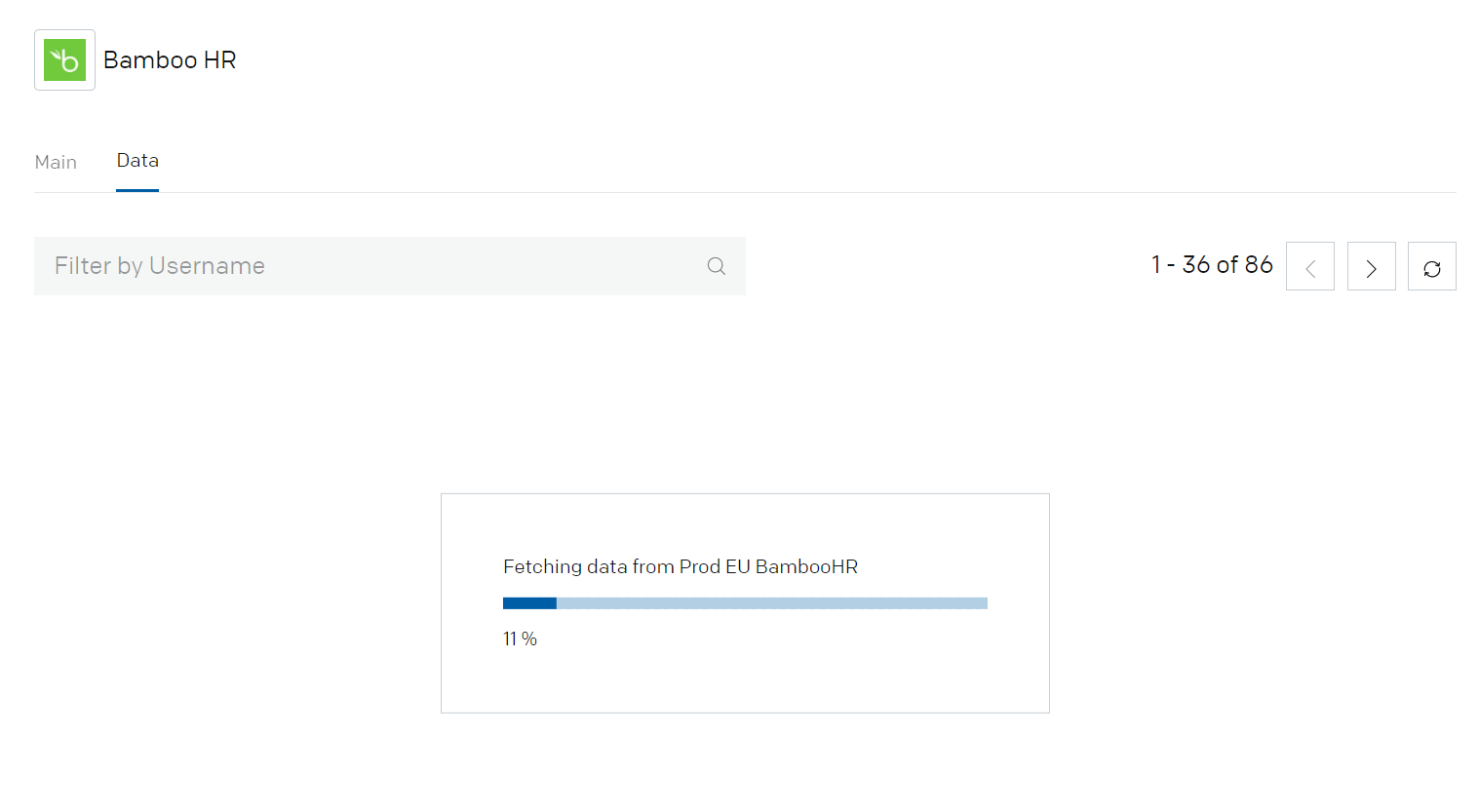

  • Click on the Data tab.

If the Token and Tenant details are correct, the employee details will be fetched from the BambooHR.

1517
  • Validate the successful import of the Employees into the Aquera tenant

Configure an Aquera orchestration with Verify

To orchestrate the employee synchronization, follow the steps below:

  • Login to your Aquera account using: https://<your_domain>.aquera.io.

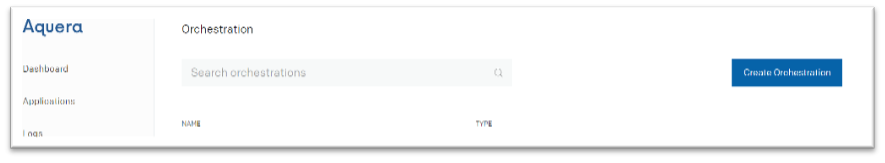

  • Click on “Orchestration”
  • Click on “Create Orchestration”
885

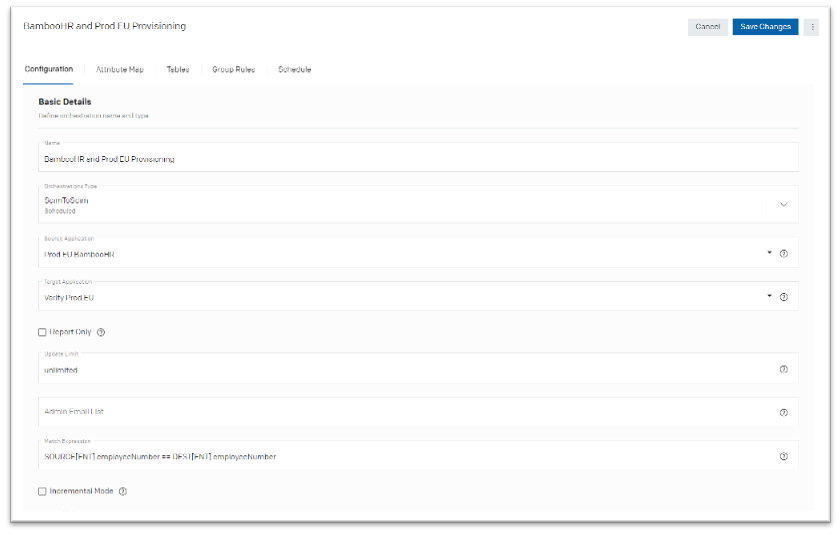

  • On the “Configuration” tab provide the “Basic Details” such as:
    • Name
    • Orchestrations Type: ScimToScim
    • Source Application: BambooHR application created above
    • Target Application: IBM Security Verify application created above
    • Uncheck the “Report only” check box
    • Update limit: Unlimited
    • Match expression: SOURCE[ENT].employeeNumber == DEST[ENT].employeeNumber
    • Import limit: Unlimited
    • Make sure to enable the "Group management" in order to define "Group Rules"
840
  • Save the changes
  • On the “Attribute Map” tab validate the attribute mapping from Source to Target. Update the mapping as required.
798

📘

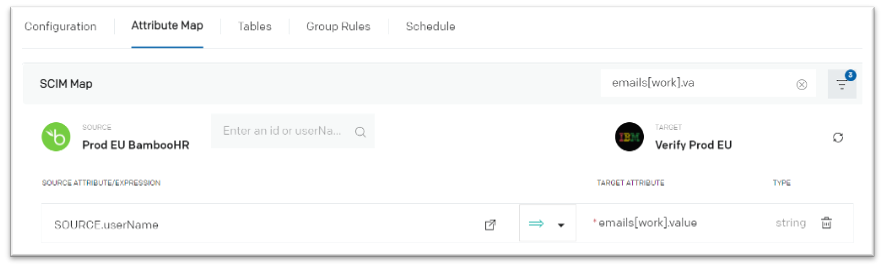

Attribute mapping

Make sure to map the proper attribute for “emails[work].value” so that newly imported user can receive an e-mail with their initial password.

885
  • Save the changes
  • Keep the “Tables” and “Group Rules” tabs as default
  • On the “Schedule” tab, define the schedule for orchestration as required
  • Save the changes

Execute the orchestration

To initiate the Aquera orchestration with IBM Security Verify:

  • Login to your Aquera account using: https://<your_domain>.aquera.io.
  • Click on “Orchestration”

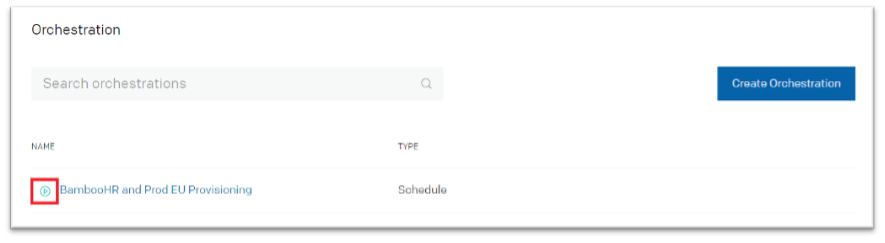

  • Click on “Execute” action against the newly created orchestration
885

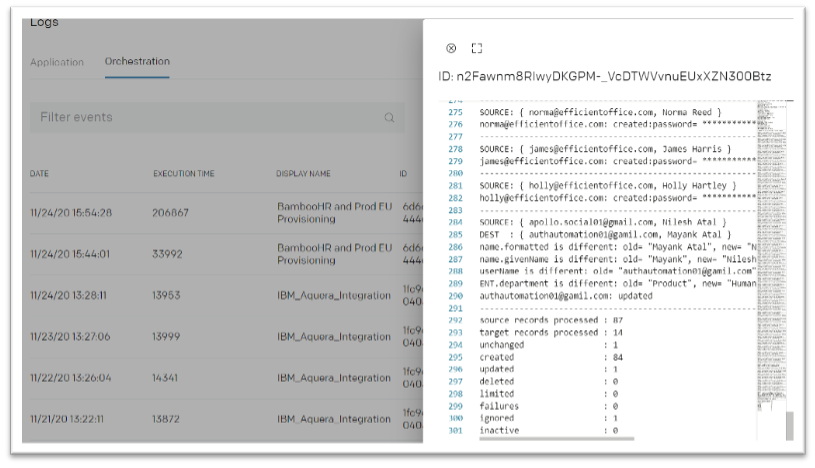

  • Monitor the progress of synchronization by navigating to Logs > Orchestration tab
  • Click on row to view details of logs
815
  • Validate the details of employee record created / updated / deleted in the logs

Validate employee import in Verify

  • Login to Security Verify as administrator
  • Access the admin console

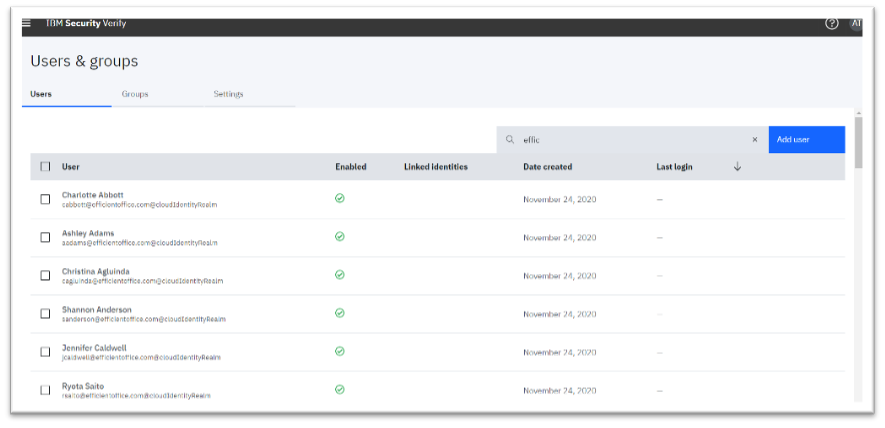

  • Navigate to Users and Groups
  • Validate that users got imported to the Verify
  • Also verify that each newly created user gets the email having password for Verify login
885

👍

Password email

Note: The new user will get the password email only if the user has valid email address populated during user synchronization.

Outbound user account lifecycle

IBM Verify supports out-of-the-box provisioning for many applications such as Active Directory, Salesforce etc. However, some applications may not have out of box account lifecycle support using Verify. Aquera can bridge the account lifecycle gap.

Aquera’s Account Provisioning Gateway translates SCIM requests from IBM Security Verify into REST-based API calls, SOAP/webservice-based APIs calls, SQL commands, LDAP operations, robotic automations, SDK library calls and queue messages across IT infrastructure covering all the places where users have accounts.

The gateway creates, updates, deletes or deactivates accounts from any application, database, directory, or device. Additionally, the gateway synchronizes passwords into your applications that use secure web authentication (SWA) or into your thick client applications.

To demonstrate the capability, below are the detailed steps for account lifecycle management of MySQL accounts.

Install and configure MySQL server

Install the MySQL server on your on-premises system which is behind the firewall. It is recommended to create an admin user who has privileges to administer the MySQL server. For this demonstration, an “sqladmin” user is created and used hereafter.

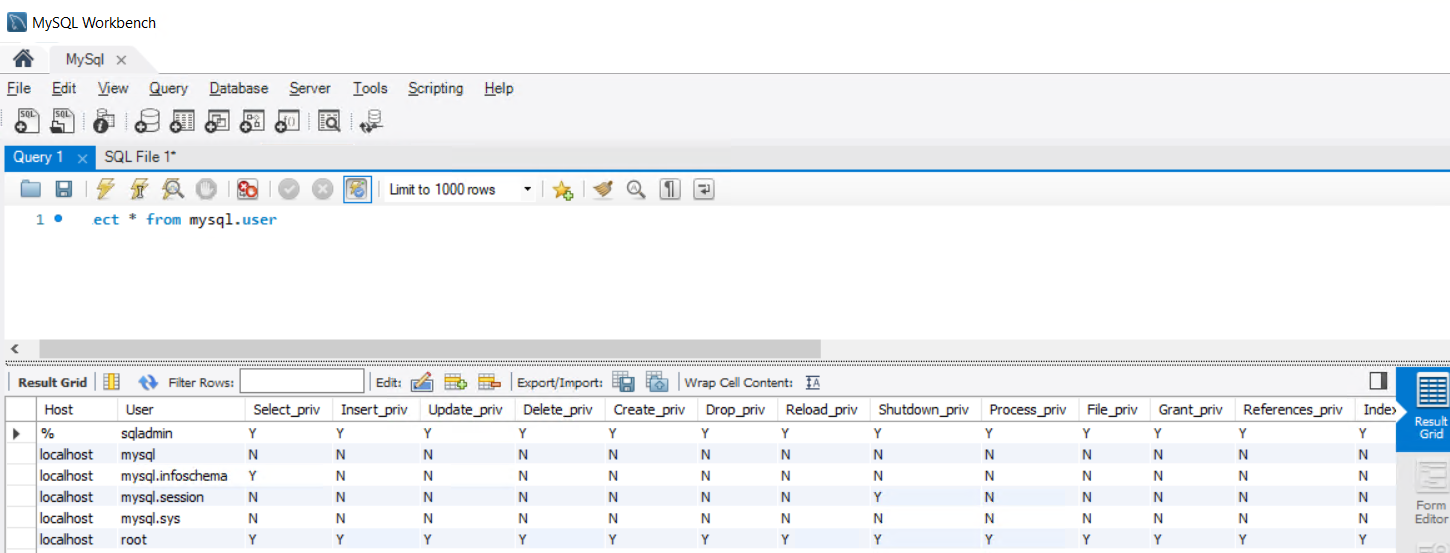

Validate that the admin user can connect to your MySQL server and manage the users. The user permissions can be validated by using a command such as:

select * from mysql.user
1450

Install Aquera Agent

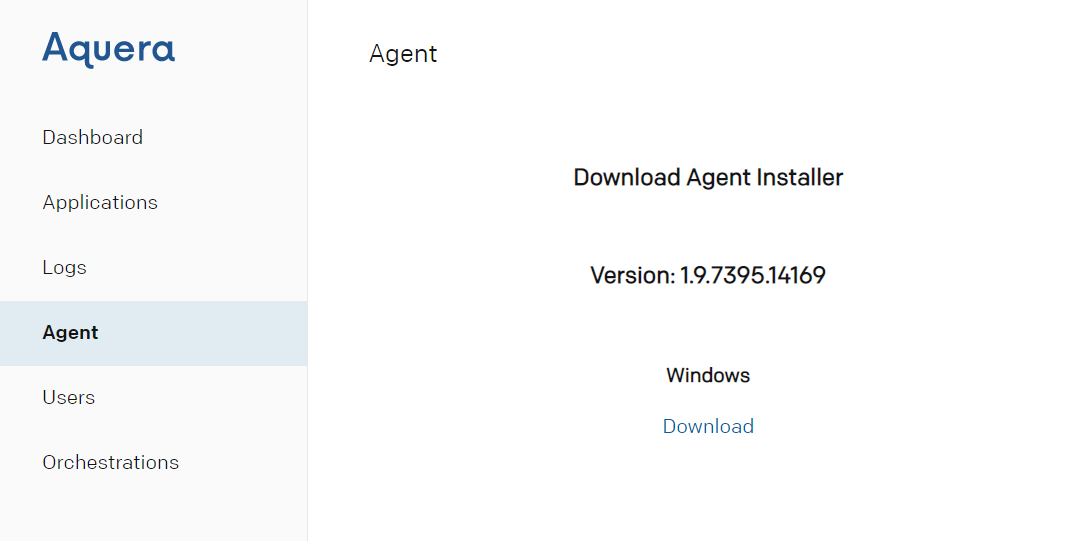

Login to Aquera portal and download the agent which need to be install on the MySQL server which is behind the enterprise firewall

1088

Note: For now, Aquera supports agent installation only for Windows platform.
Now install the “Aquera agent” on the MySQL server using the installer downloaded in above step.

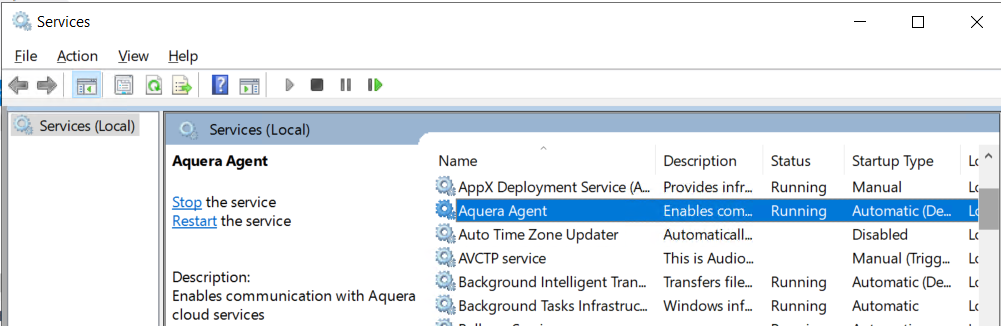

After the successful installation open the Windows services to validate that the “Aquera Agent” service is running.

1001

MySQL user account lifecycle using Verify via Aquera

Once the required applications are available, it's time to connect them together to manage the various user accounts of MySQL.

Onboarding MySQL application with Aquera

  • Login to your Aquera account using Url as: https://<your_domain>.aquera.io.
  • Click on “Applications”
  • Click on “Add Application”

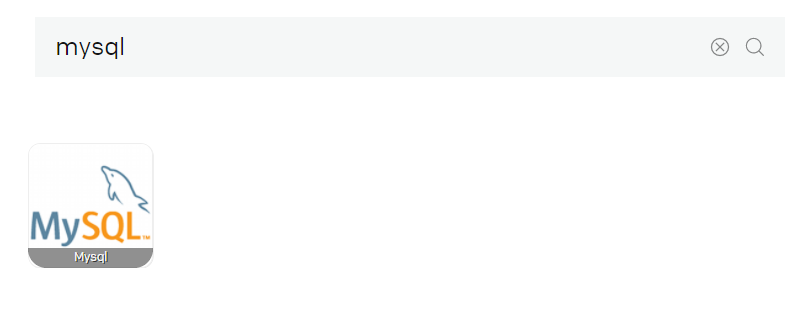

  • Search for “MySQL” from the catalogue
  • Click on “MySQL” icon
808

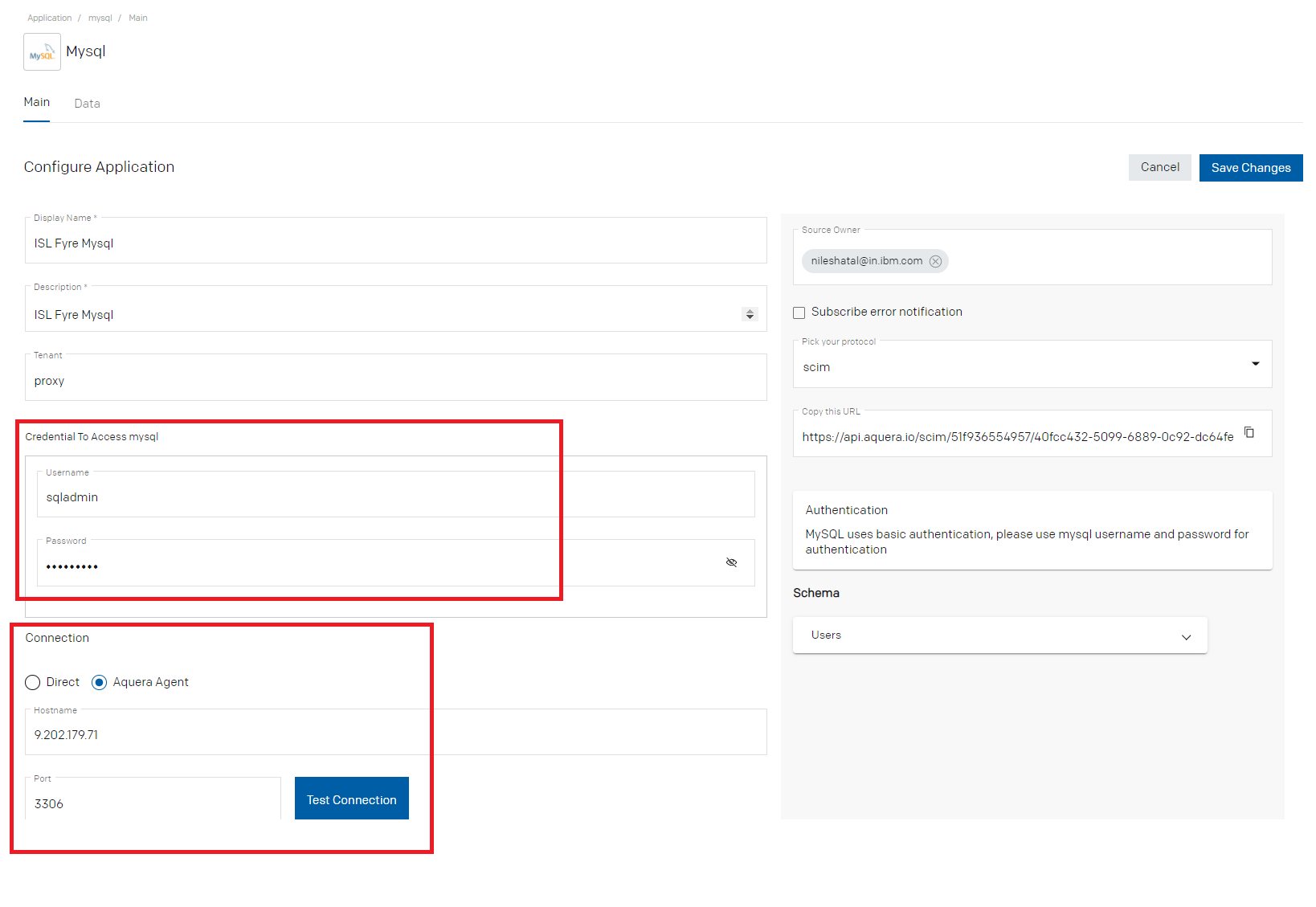

  • Provide the details for Name, Description, Tenant and Token
    o Provide the Tenant name as “proxy” if the MySQL server is beyond firewall
    o Provide Username and Password under “Credential To Access mysql”
    o Select “Connection” as “Aquera Agent” as the server is beyond the firewall
    o Provide the details of “Hostname” and “Port”
1638
  • Save the changes
  • Copy the SCIM URL from the Application configuration page above. This URL will be required while configuring application in IBM Verify

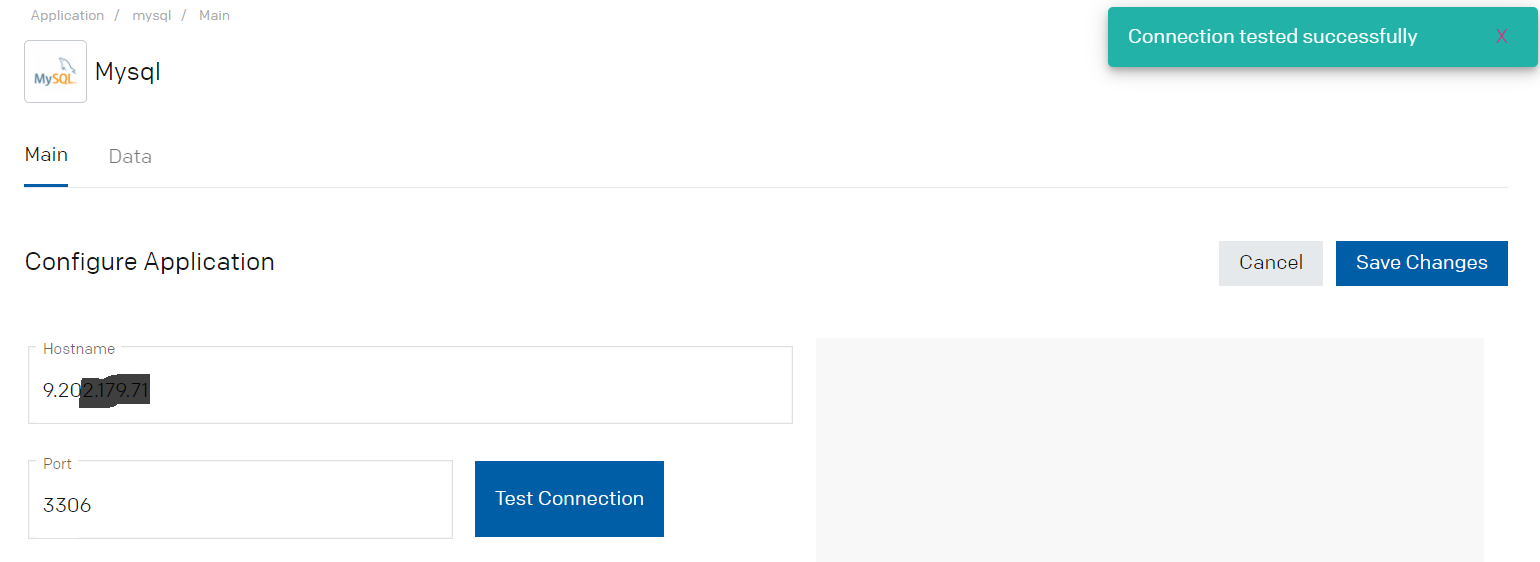

  • Click on “Test Connection”
  • Validate that connection is successful
1540

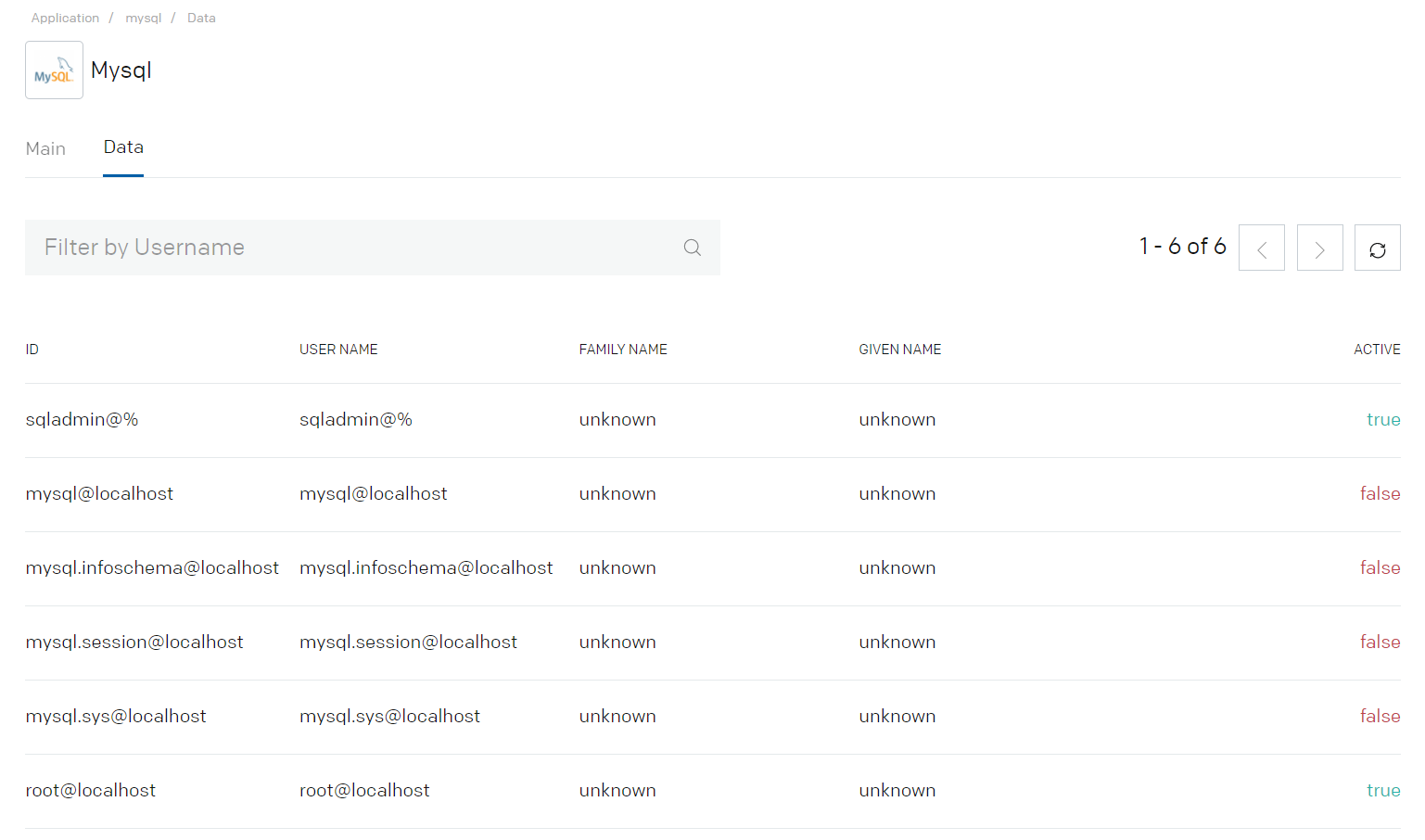

  • Click on the Data tab. If the integration details are correct then user details will be fetched from the MySQL.
  • Validate the successful import of the Employees into the Aquera tenant
1537

Creating custom application in Verify

Next step is to create an application in IBM Verify which will be used for MySQL user account lifecycle.

  • Login to IBM Verify as administrator

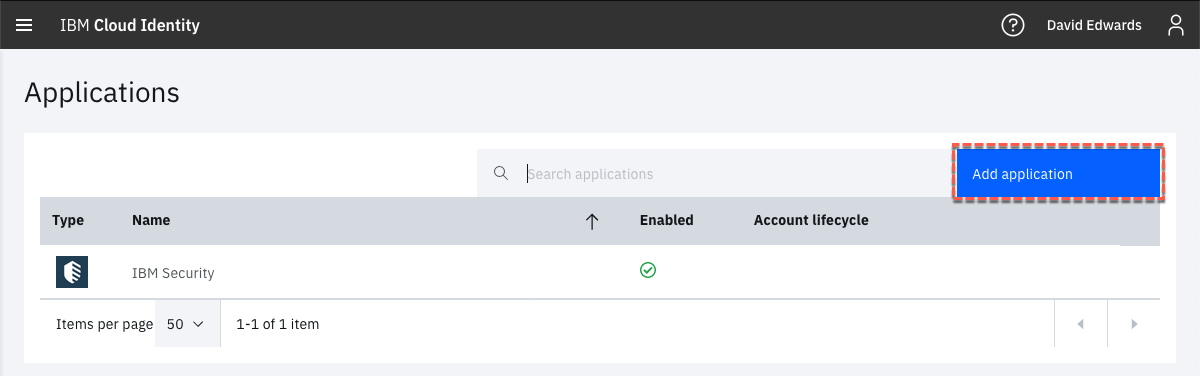

  • On the ISV Applications page, click the Add application button
1200

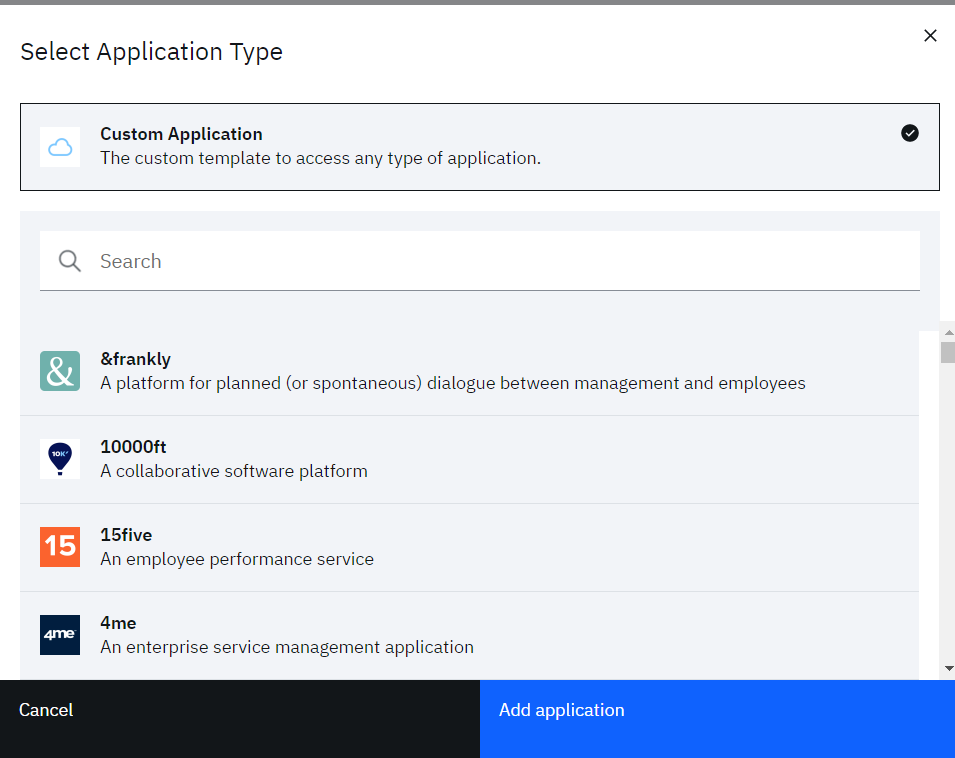

  • On the Select Application Type dialog, click on “Custom Application”
955
  • Click “Add application”

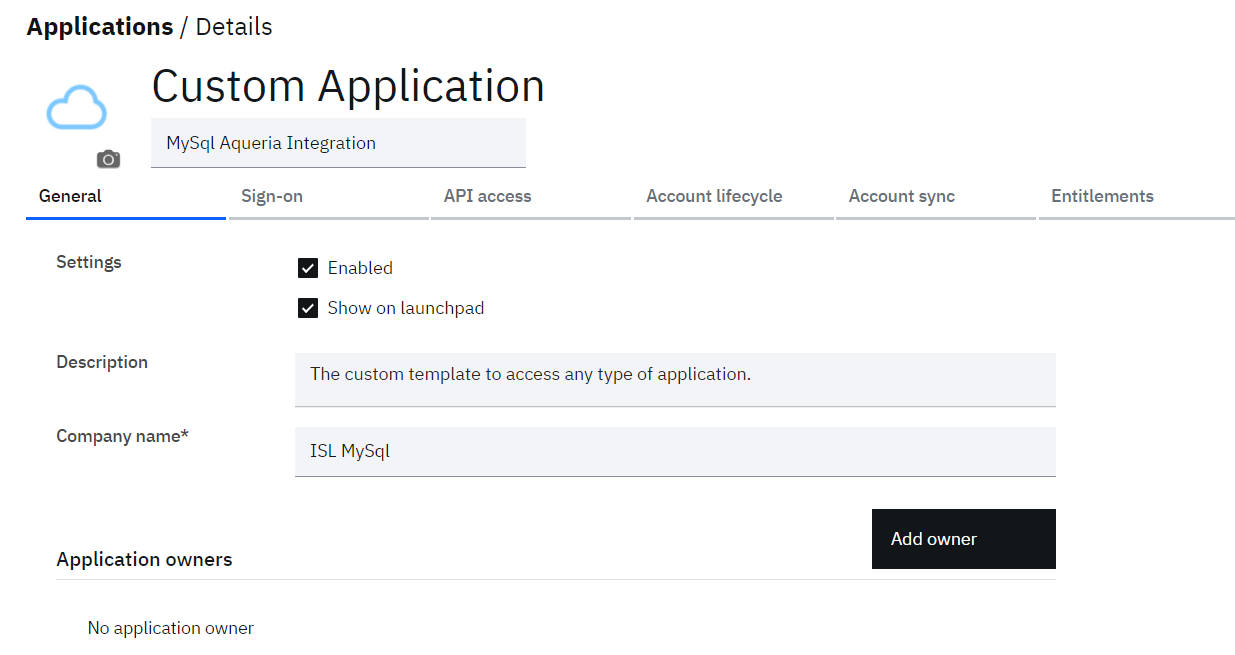

  • On “General” tab, provide “Company name”
1235

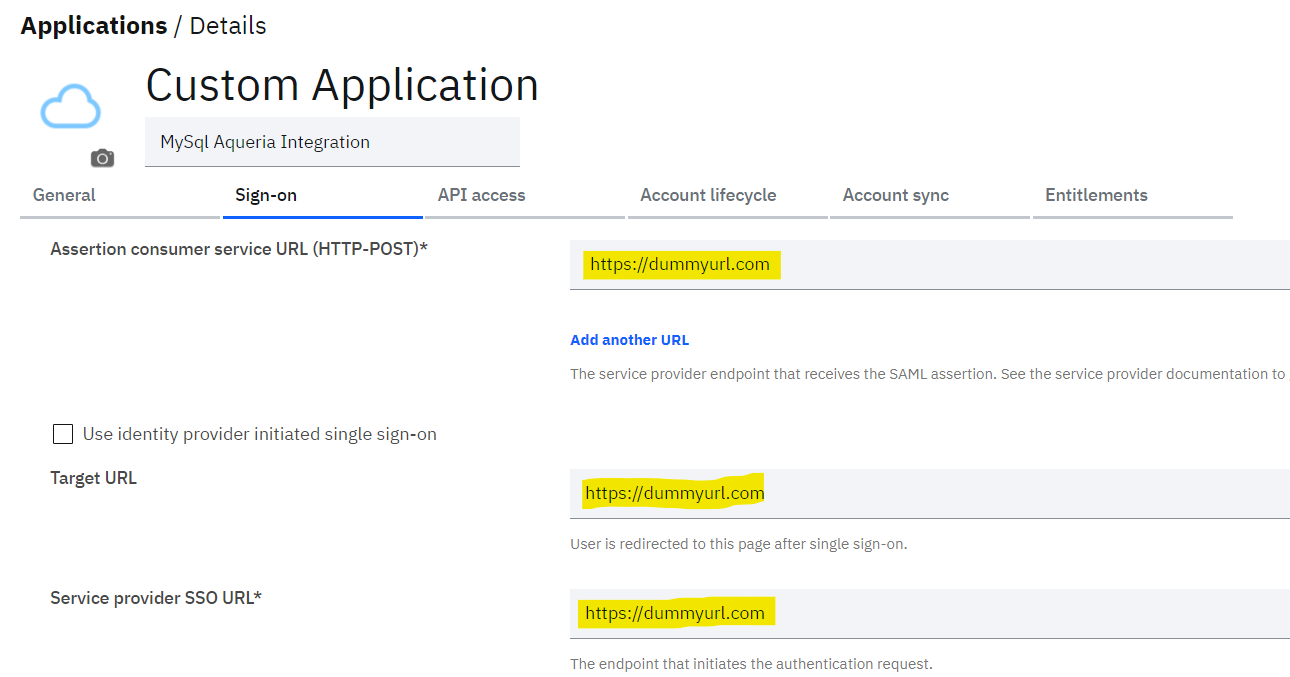

  • On “Sign-on” tab provide some dummy values for mandatory fields. For now this is the workaround to save Custom application as these attributes are not required for user account lifecycle.
1290

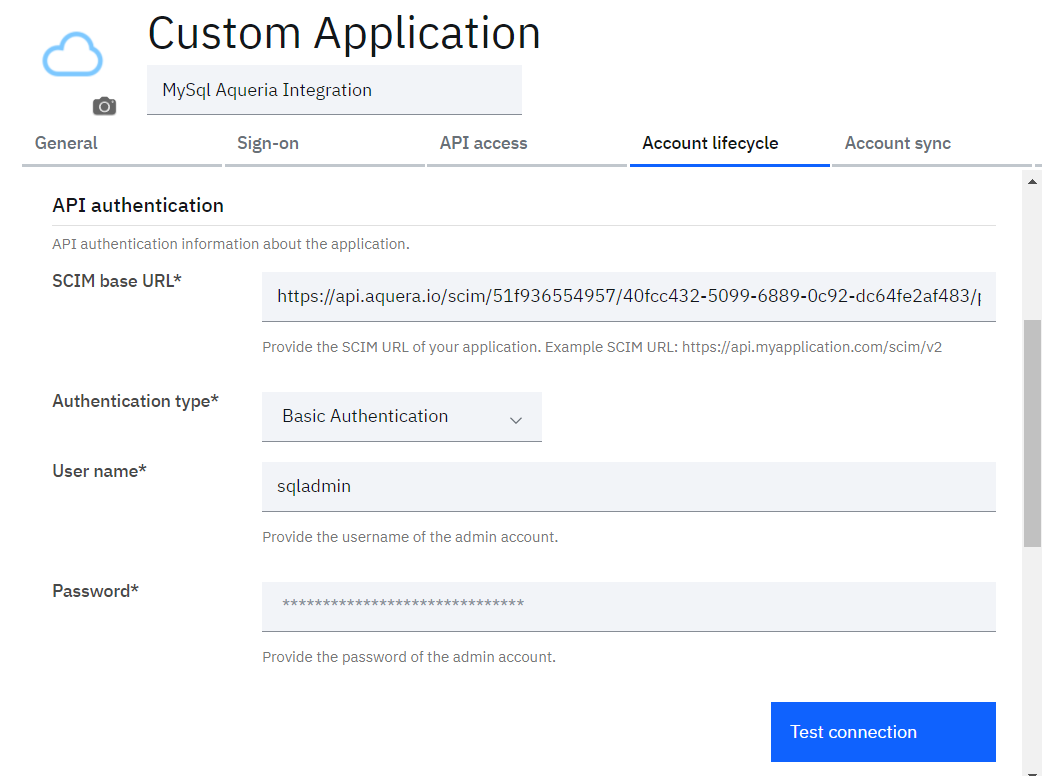

  • On “Account lifecycle” tab
    o set the “Provision accounts” and “Deprovision accounts” as “Automatic”
    o Set the “SCIM base URL” as the URL copied from MySQL application in Aquera portal
    o Select “Authentication type” as “Basic Authentication”
    o Provide “Username” and “Password” of MySQL admin
1042

  • Click “Test connection” to validate the connectivity across the Aquera tenant

  • If all the components are able to communicate properly then Success message gets displayed as:
    “The connection test was successful”

  • Save the changes

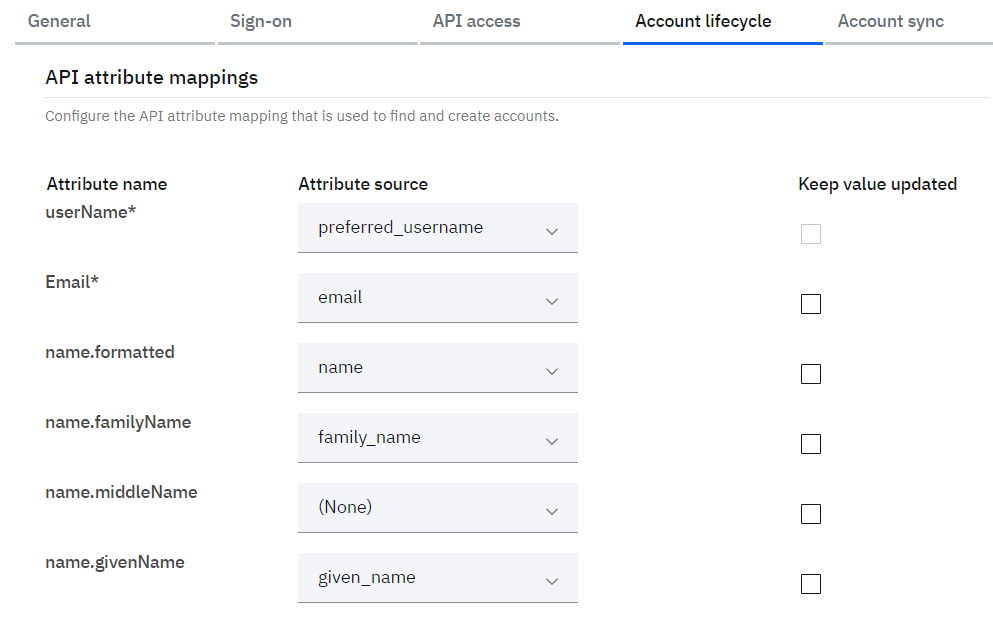

  • Scroll further below and validate the “API attribute mappings” as
    o userName = preferred_username
    o name.givenName = given_name
    o name.familyName = family_name
    o employeeNumber = employee_id
    o Email = email
    o phoneNumbers = mobile_number

  • Optionally select the “Keep value updated” checkbox against each attribute if the value of the attribute is required to be kept updated with the source data

993

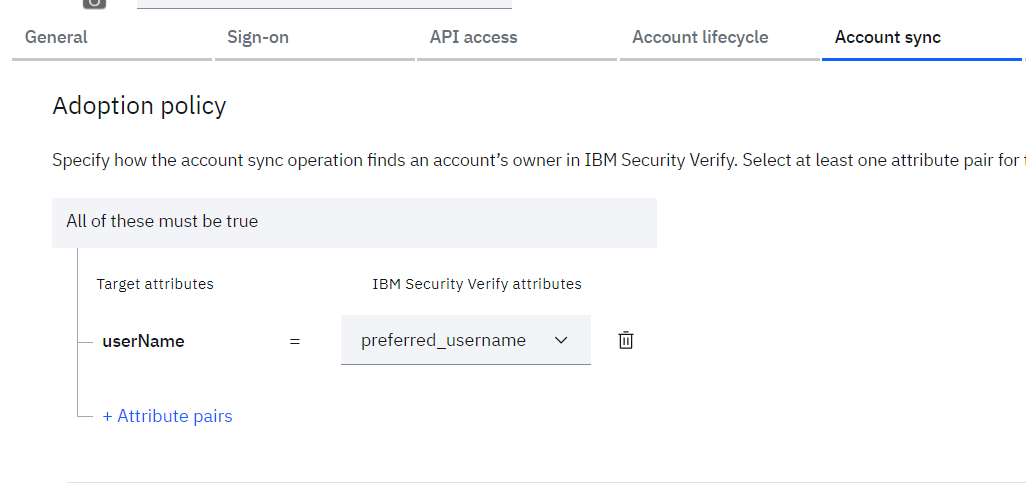

  • Click on “Account sync” tab
  • Click on “+ Attribute pairs” to add the attribute rule to be used to match the users from salesforce with the existing users in ISV. Define the rules as:
    o userName = preferred_username
1026
  • Click the Save button

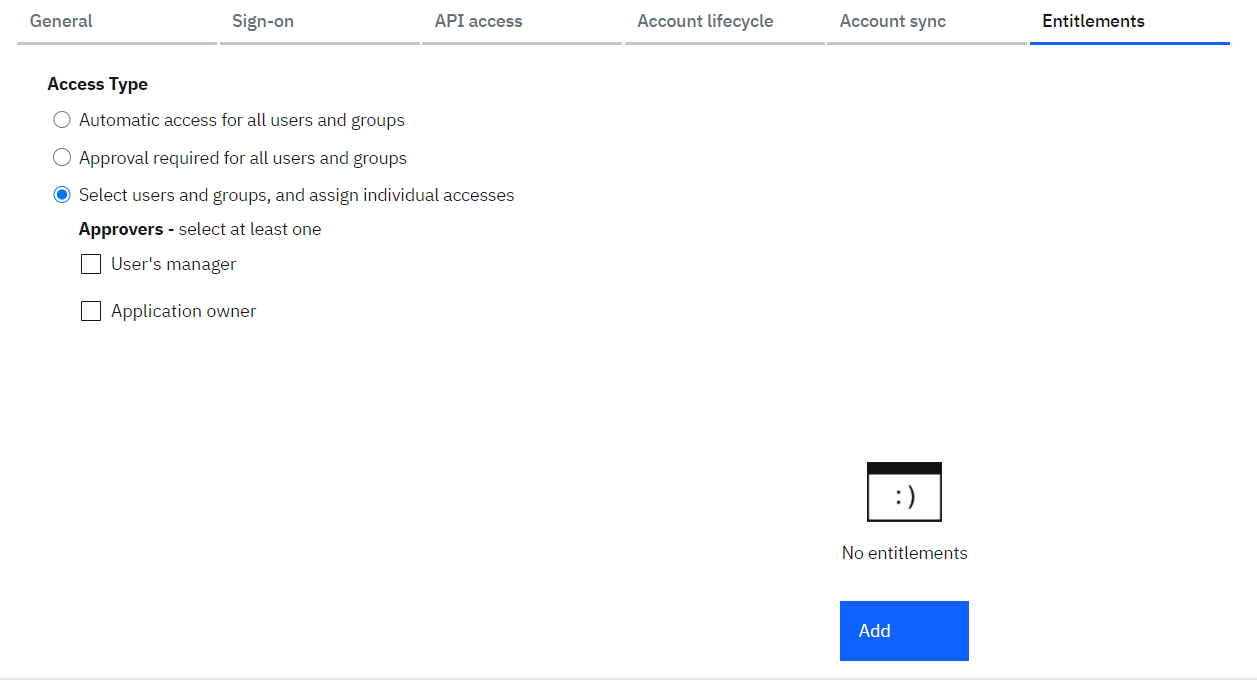

  • Click on “Entitlements” tab
  • Select “Access Type” as “Select users and groups, and assign individual accesses”
1257
  • Click on “Add”

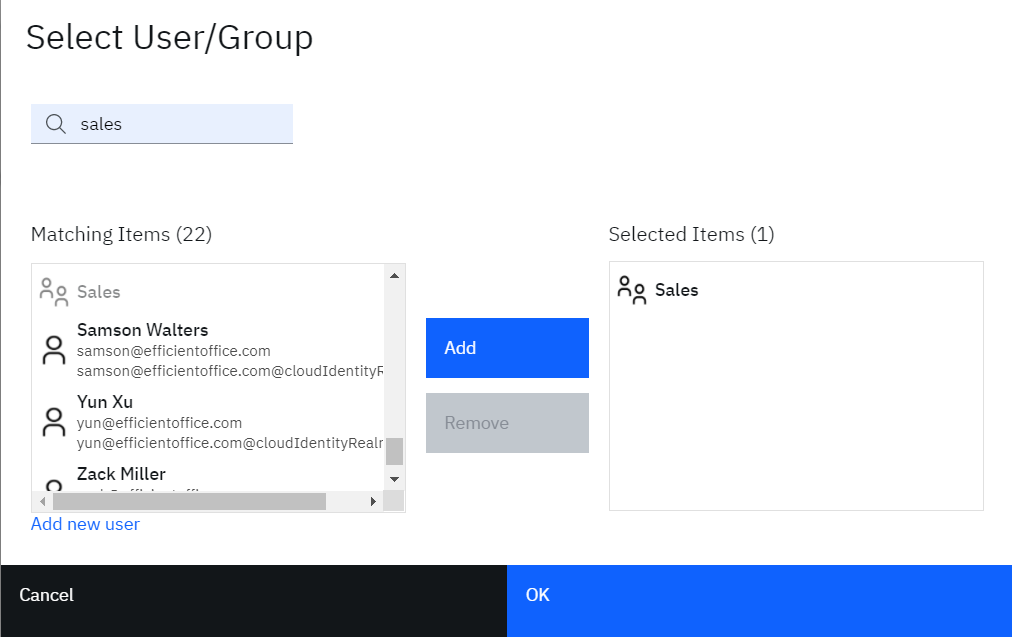

  • Search for “Sales” group in the “Select User/Group” popup
  • Select “Sales” group (which should have been created before)
1012
  • Click “OK”
  • Save the application

Create user along with MySQL account provisioning

  • Log into your ISV tenant as your administrative user
  • Go to Users & groups
  • Click the Add user button

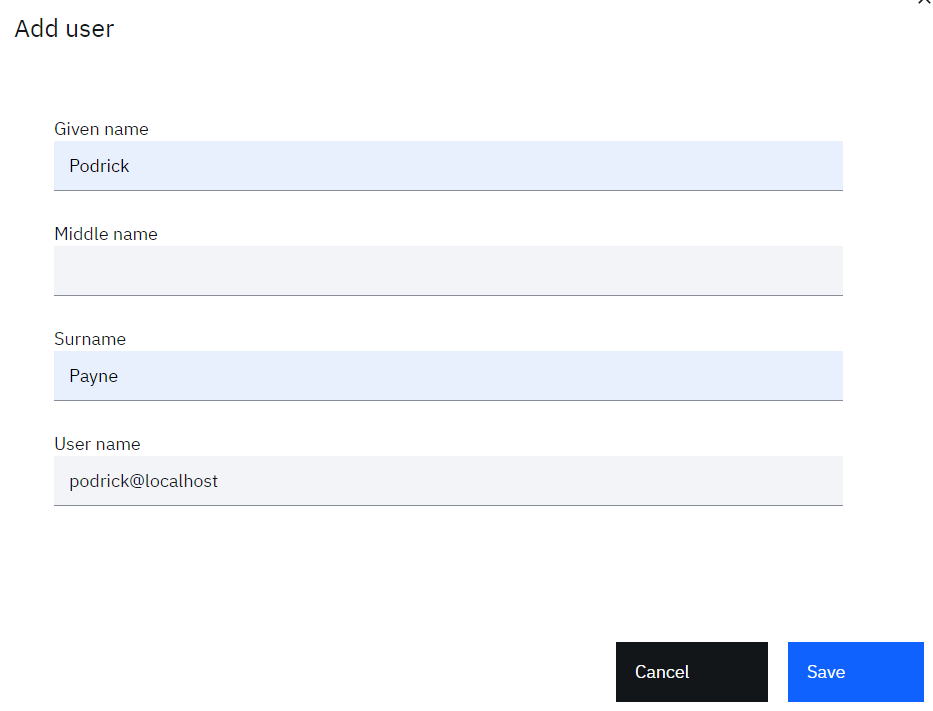

  • Create a user. You can create any user you like (as long as it doesn’t clash with existing ones). For example:
    o Identity Source = Cloud Directory
    o User name = podrick@localhost
    o Given name = Podrick
    o Surname = Payne
    o Email = a valid real email address (such as the email tied to the admin user for this ISV tenant)
933

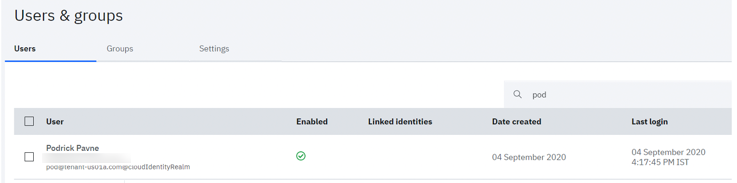

  • Click the Save button to create the user
737

The user is now created.

Add User to Sales Group

Note that we have entitled the “Sales” group with “Automatic access” for the MySQL application. Now in order to provision new MySQL account for newly created user, we can make the new user as a member of “Sales” group. This will trigger the automatic provisioning for the MySQL account.

  • Return to the Security Verify admin interface as the admin user

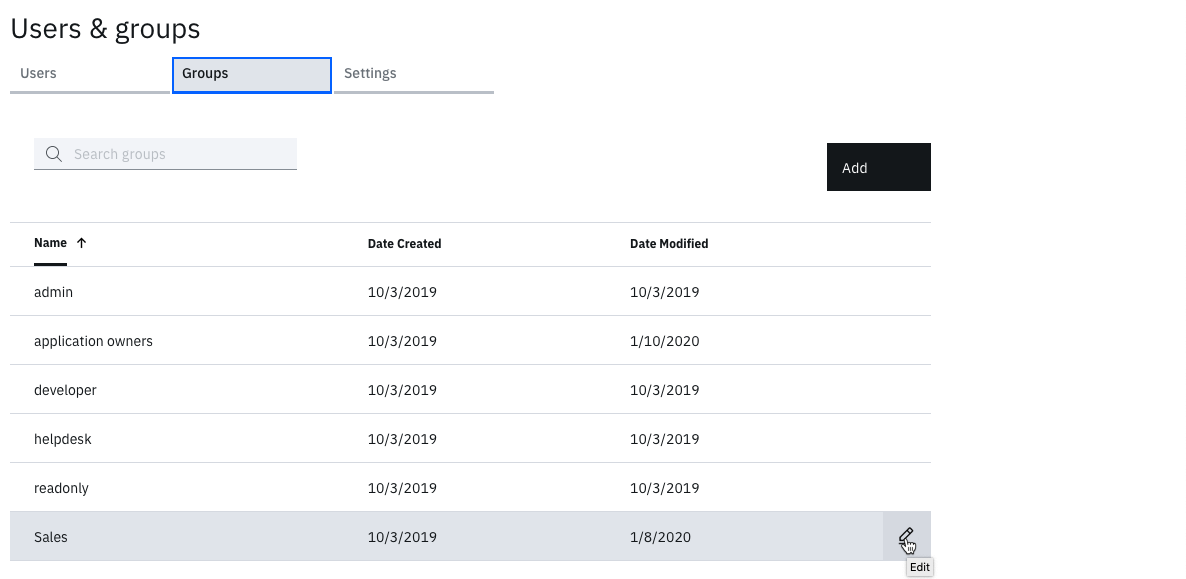

  • In the Users & groups function, click on the Groups tab
  • Hover over the Sales group and click the Edit icon
1186
  • Click the Add button beside Group Members

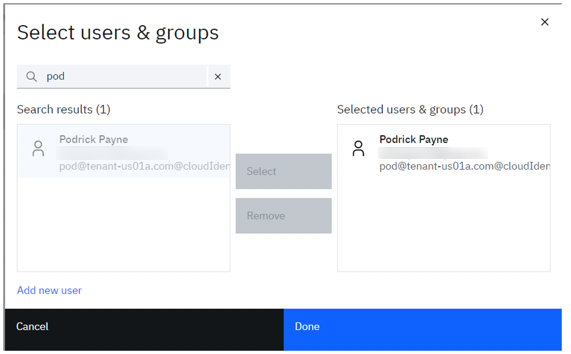

  • Search for name of new user which will get listed in the “Search results”. Select it and click Select, this will move the user to “Selected users & groups”:
571
  • Click the OK button to add them, then Save on the Edit Group dialog

Check new user in MySQL

  • Open MySQL workbench with connect to MySQL server using administrative privilege

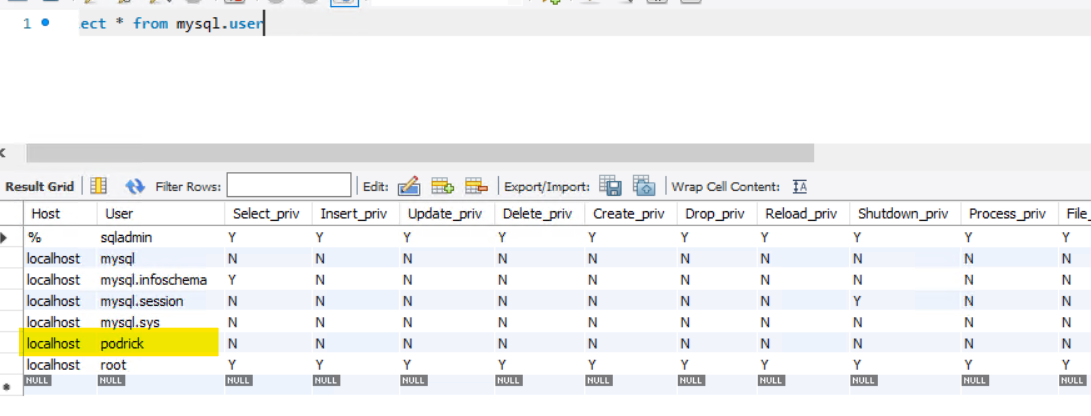

  • Search for the available users by command:
select * from mysql.user
1091
  • Validate that new user has been created in MySQL
  • Also, the user provisioning task can be monitored by Verify admin from Admin console

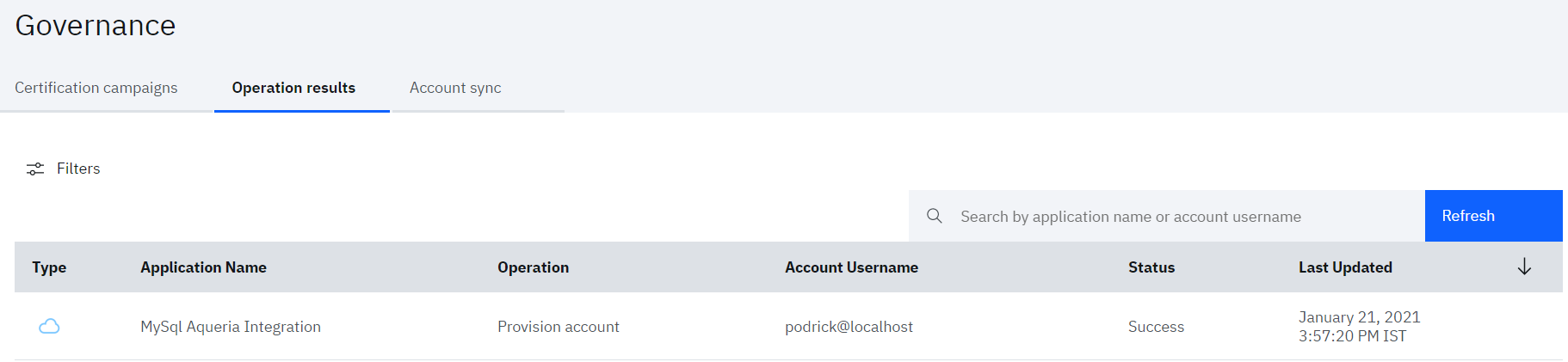

  • Navigate to Governance > Operation results tab
1822

💎
