Identity proofing for user registration

Identity proofing for user registration

Introduction

IBM Verify has the ability to integrate with an OIDC based identity proofing vendor to add identity proofing to the user registration flow. This adds security to ensure that users registering for an account are legitimate.

Prerequisites

  1. An account with an OIDC based identity proofing vendor.
  2. The OIDC connection credentials and endpoints.
    • Client ID
    • Secret
    • Metadata URL
    • Issuer
    • Authorization endpoint
    • Token endpoint
    • etc.
  3. An IBM Verify tenant
  4. Optionally - An attribute created for storing a timestamp

Configure OIDC provider

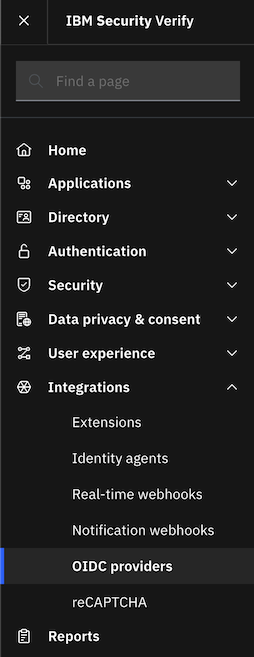

In the IBM Verify Admin UI, navigate in the right panel to Integrations and then select OIDC providers.

254

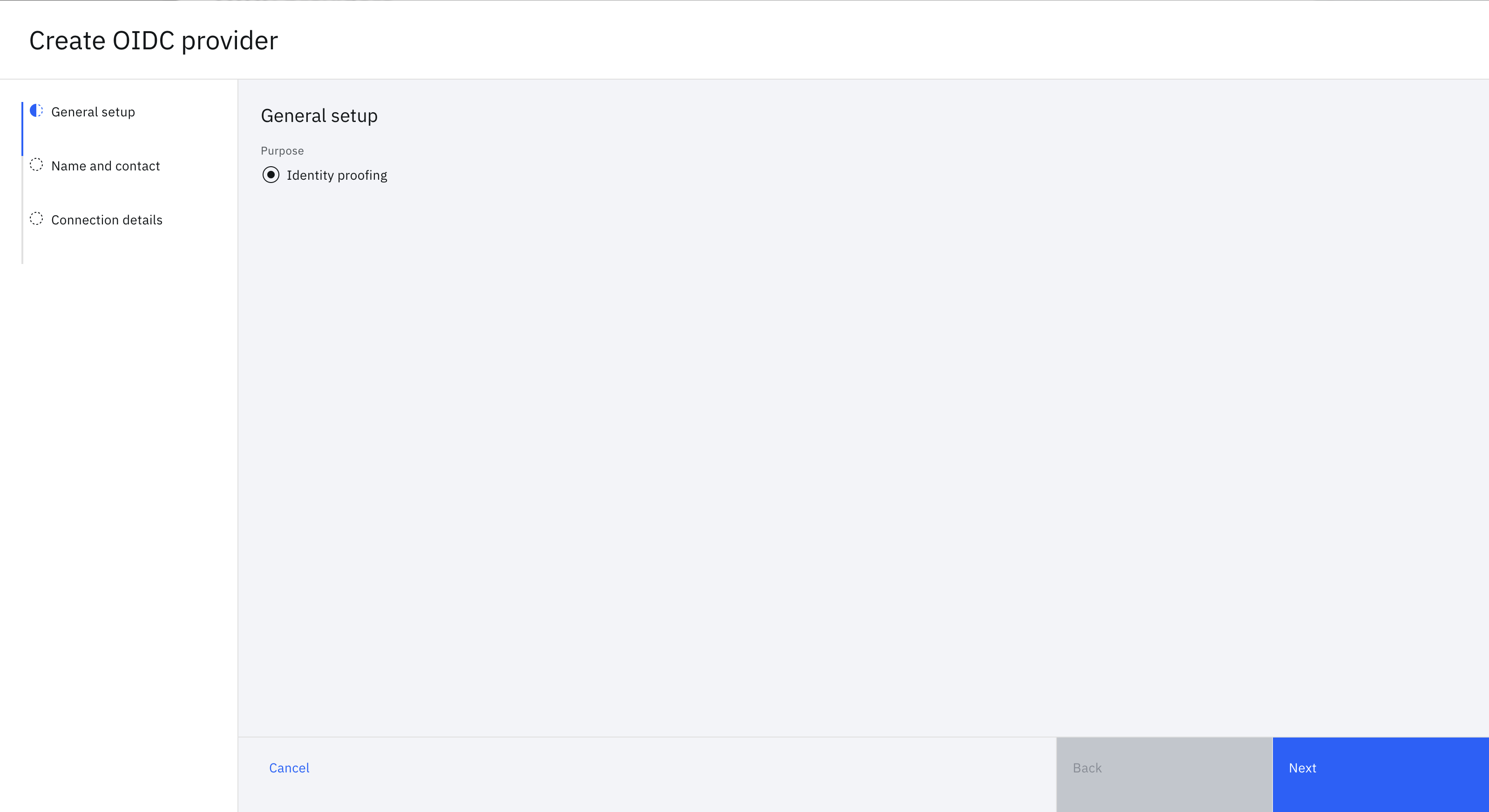

Click Create OIDC provider. Verify that Identity proofing is toggled. Click Next.

2396

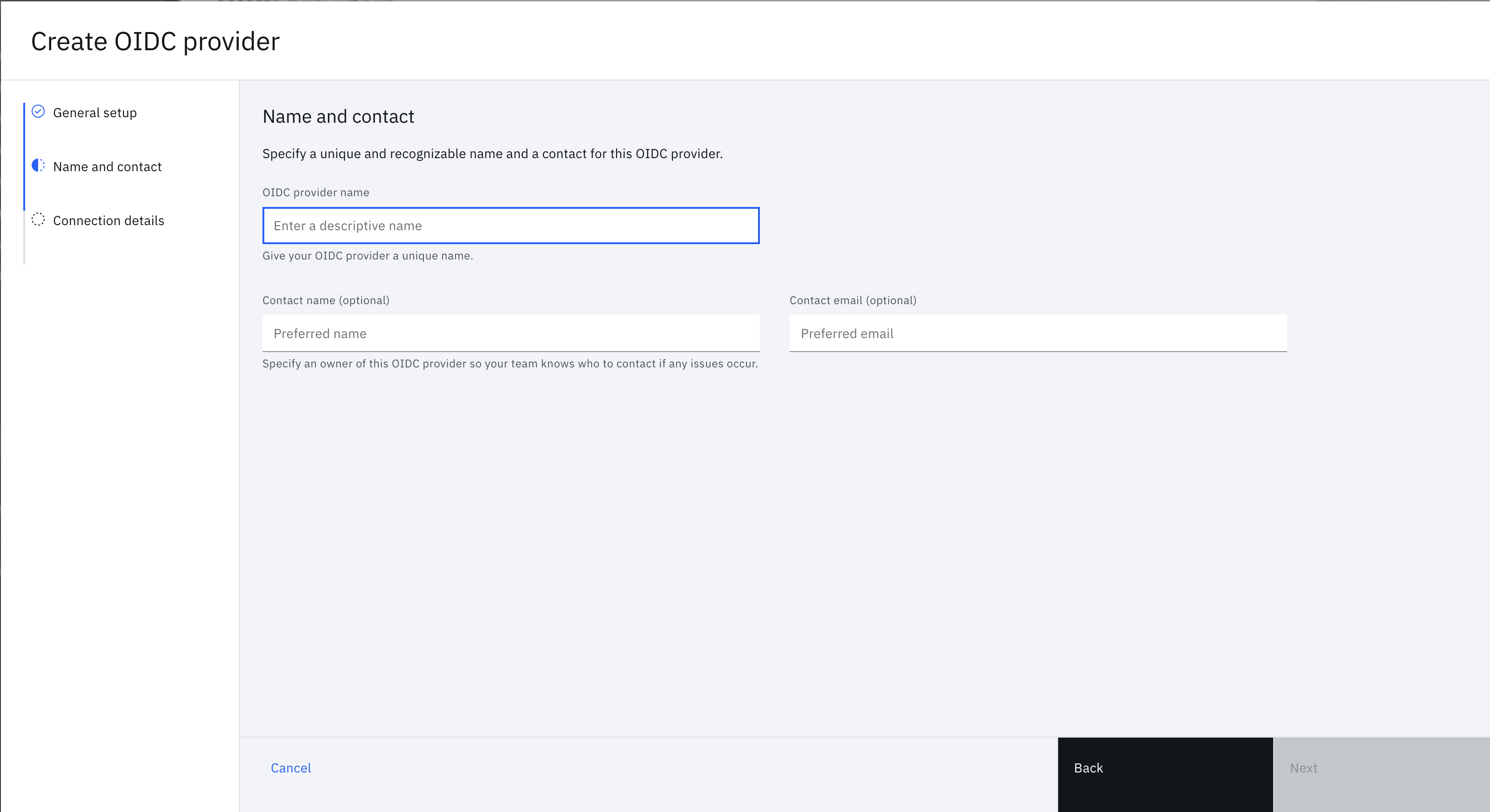

On the next page, in the configuration tile, enter a name for the integration in the OIDC provider name field. Optionally, you can add contact information. Click Next.

2396

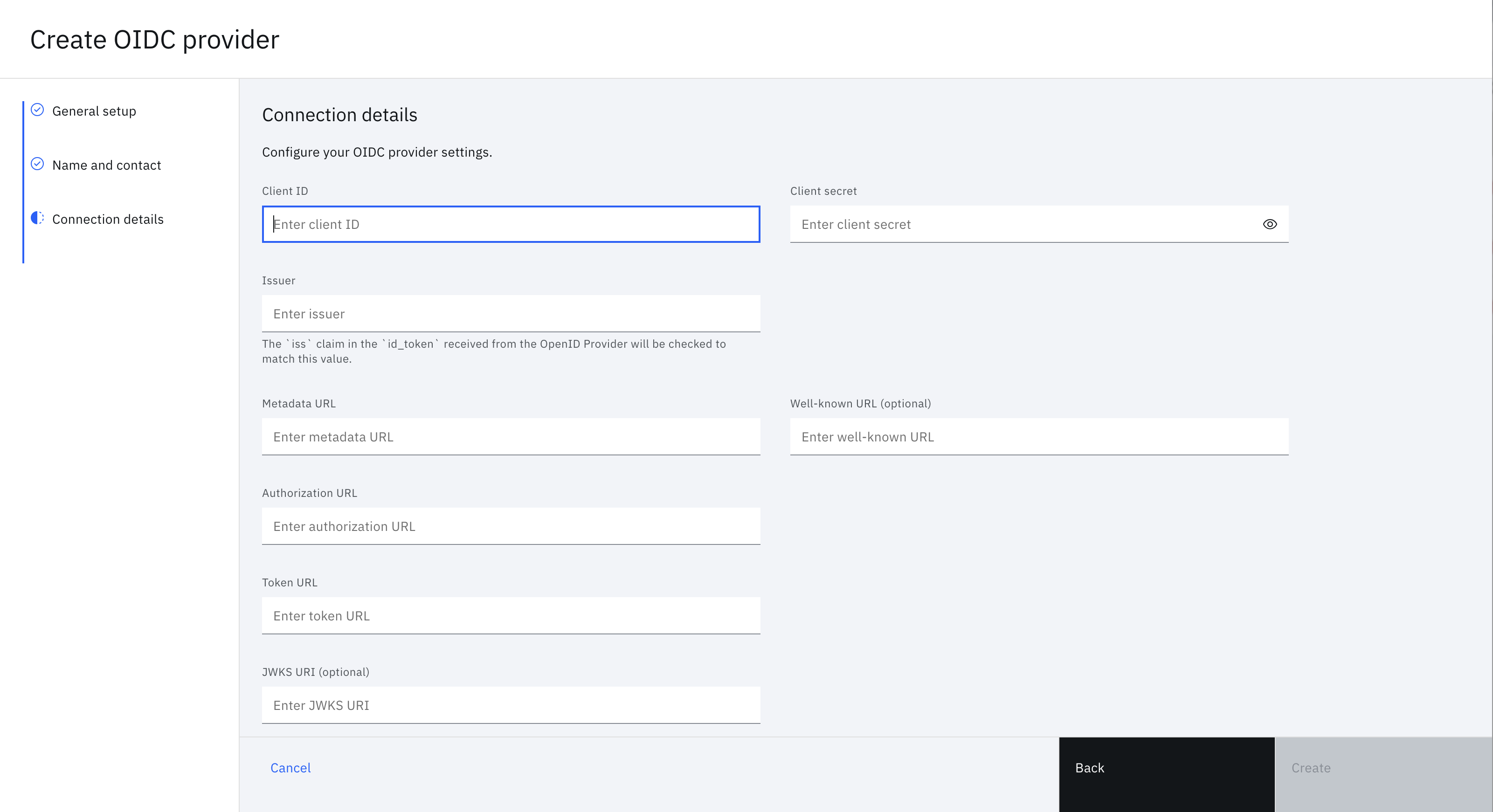

Enter all of the OIDC connection credentials, endpoints, and other information you have about the provider. Click Create to create the OIDC provider on the tenant.

3202

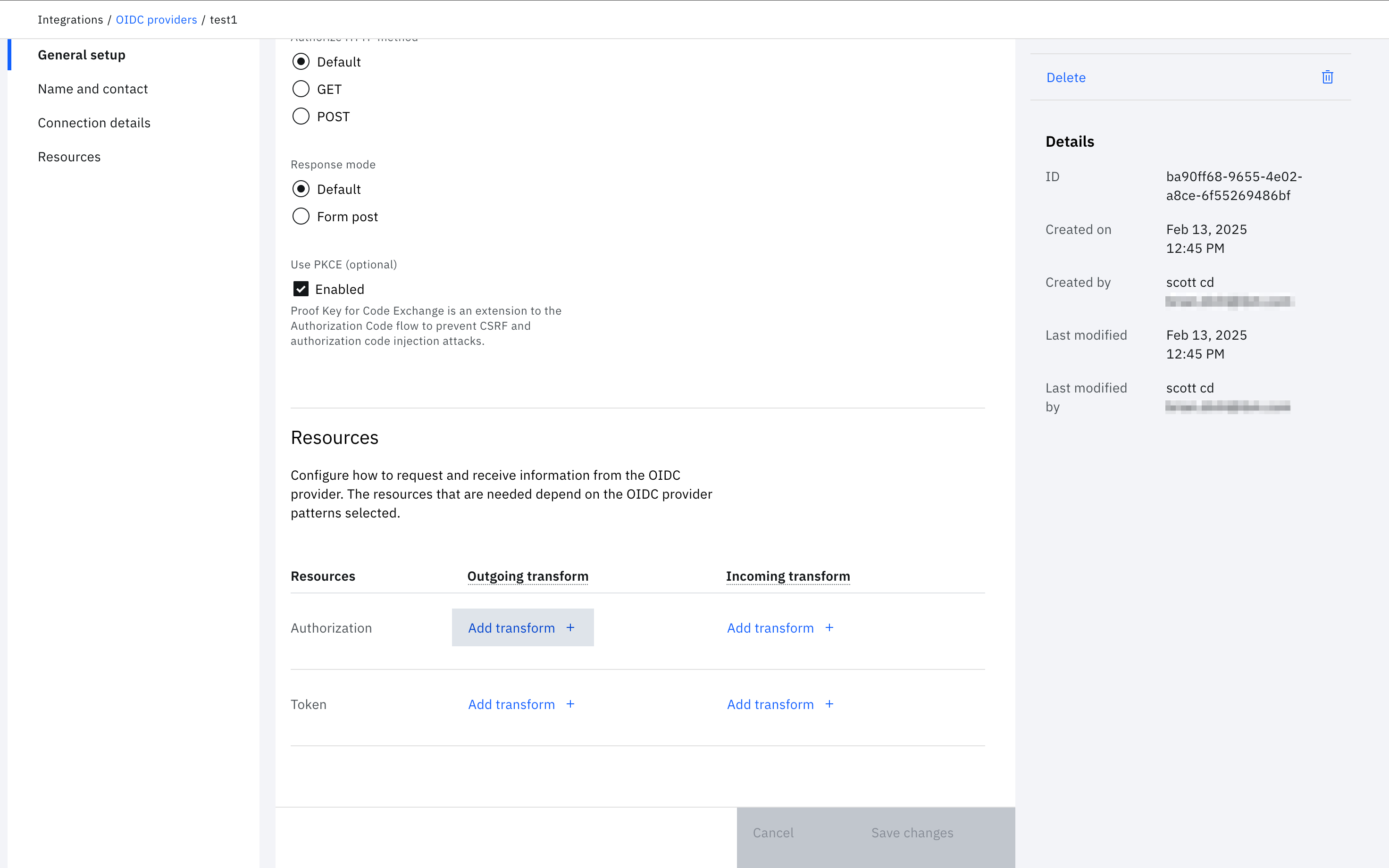

After the OIDC provider is created, edit it to add a corresponding Authorizaton Outgoing Transform and Token Incoming Transform. Scroll to the Resources section and click Add transform under Authorization Outgoing Transform.

2944

In the interface, you can configure outgoing attributes that map to an identity proofing vendor's input as a login_hint query string parameter. This process is implemented using Verify scripted rules, allowing for the conversion of attributes recognized by IBM Verify into those utilized by the vendor.

3200

Authorization Outgoing Transform Example:

statements:
  - context: fname := args.body.given_name
  - context: lname := args.body.family_name
  - context: telephone := args.body.mobile_number
  - context: email := args.body.email
  - context: clientid := args.body.client_id
  - context: dialCode := "1"
  - context: output := {}
  - context: loginhint := {}
  - if:
      match: context.client_id != ""
      block:
        - context: loginhint = context.loginhint.put('credential',context.clientid)
        - context: loginhint = context.loginhint.put('sub',context.clientid)
  - if:
      match: context.fname != ""
      block:
        - context: loginhint = context.loginhint.put('fname',context.fname)
  - if:
      match: context.lname != ""
      block:
        - context: loginhint = context.loginhint.put('lname',context.lname)
  - if:
      match: context.telephone != ""
      block:
        - context: loginhint = context.loginhint.put('telephone',context.telephone)
  - if:
      match: context.email != ""
      block:
        - context: loginhint = context.loginhint.put('email',context.email)
  - if:
      match: context.dialCode != ""
      block:
        - context: dialCode = context.telephone.replaceAll("-","")
        - context: dialCode = context.dialCode.replaceAll("(","")
        - context: dialCode = context.dialCode.replaceAll(")","")
        - context: dialCode = context.dialCode.replaceAll(" ","")
        - context: dialCode = context.dialCode.replaceAll("+","")
        - context: 'dialCode := context.dialCode.size() > 10 ? context.dialCode.substring(0,context.dialCode.size()-10) : "1"'
        - context: output = context.output.put('dialCode',context.dialCode)
  - context: loginhint = jwt.key('secretkey').sign(context.loginhint,{'alg':'HS256'})
  - context: output = context.output.put('login_hint',context.loginhint)
  - return: jsonToString(context.output)

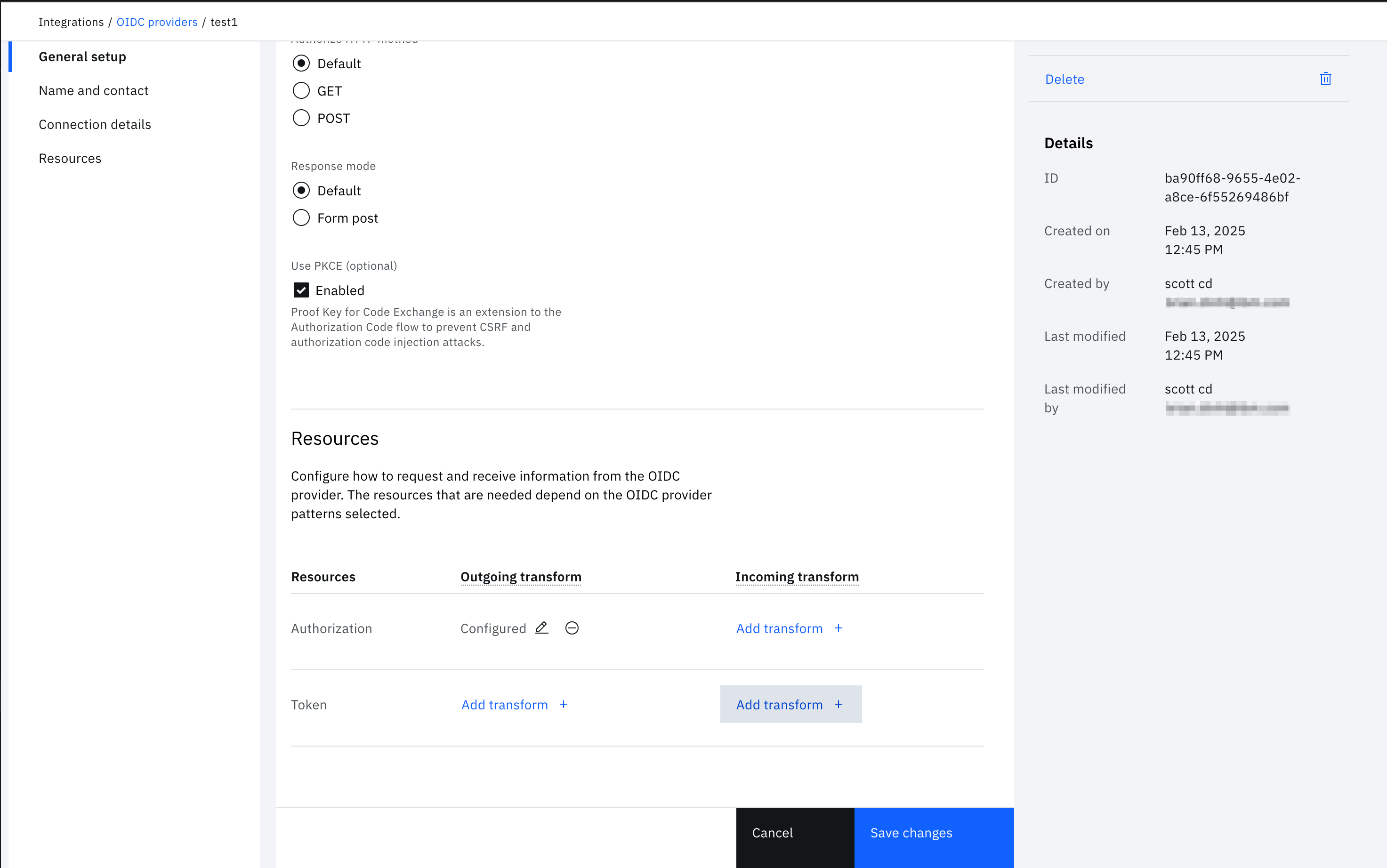

Click Confirm to create the Authorization Outgoing Transformation. The final step is configuring the Token Incoming Transform. Click Add transform under Token Incoming Transform.

2946

In the interface, the response attribute mapping can be configured that converts the incoming values from an identity proofing vendor to a compatible format for IBM Verify. Map the decision from the identity proofing flow by pulling the value from the expected vendor response. Allowed values are approve, deny, or obligate.

3200

Token Incoming Transform Example:

statements:
  - context: decision := args.body.id_token.policyDecision
  - context: output := {}
  - context: attributes := {}
  - if:
      match: context.decision == "approve"
      block:
        - context: output = context.output.put('decision',context.decision)
  - if:
      match: context.decision == "obligate"
      block:
        - context: output = context.output.put('decision',context.decision)
  - context: output = context.output.put('attributes', context.attributes)
  - return: jsonToString(context.output)

Click Confirm to create the Authorization Outgoing Transformation. Click Save changes to finish editing the OIDC provider on the tenant.

Configure identity proofing flow

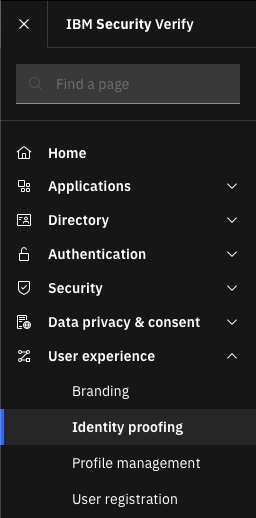

In the IBM Verify Admin UI, navigate to User experience and then click Identity proofing.

256

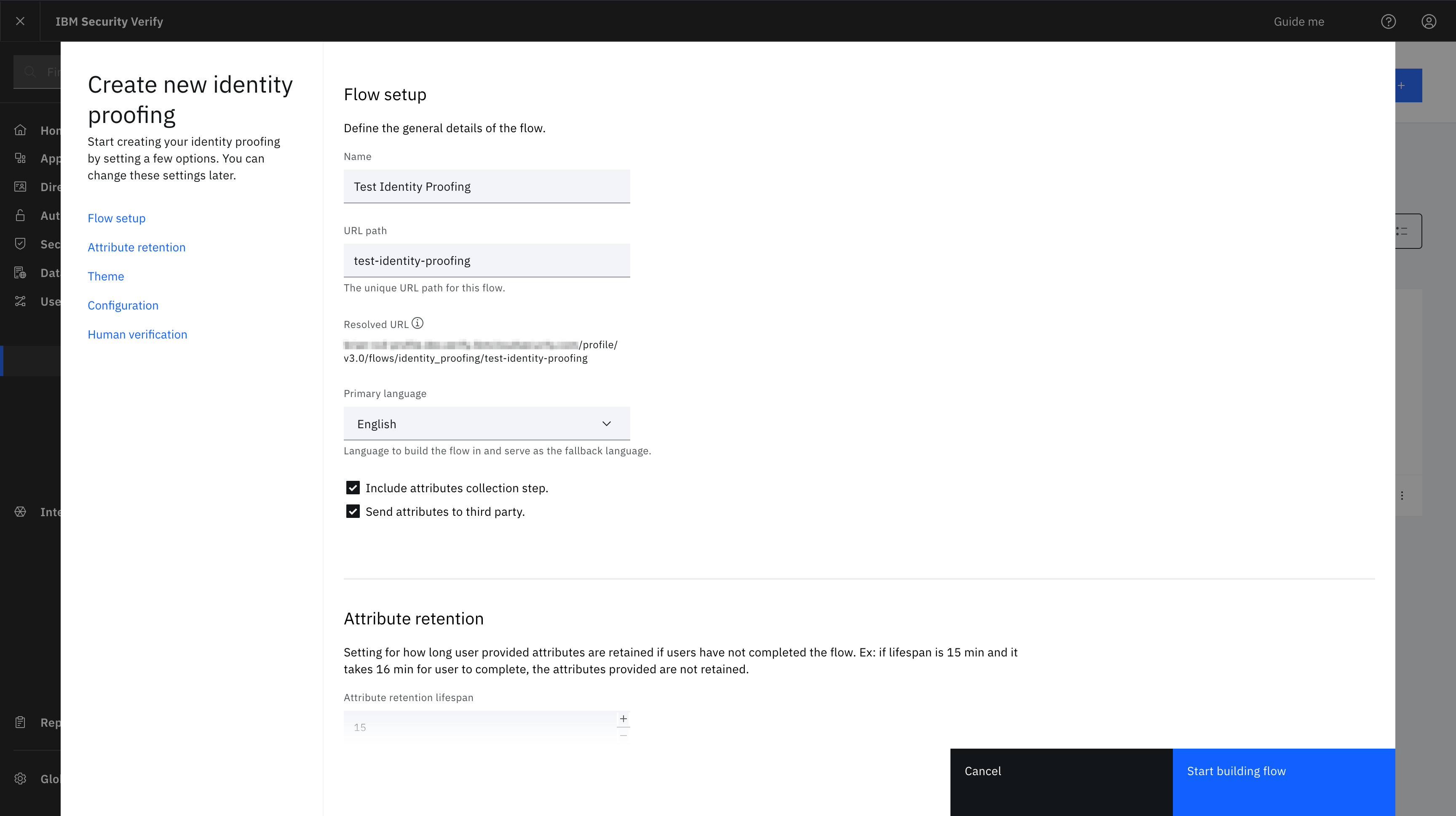

Click Create flow. In the configuration tile, enter a name for the flow in the Name field and optionally change the URL path. Set the Primary language. Enabling the setting Include attributes collection step adds a page to the identity proofing flow that will collect attributes. Enabling the setting Send attributes to third party takes attributes and sends them to the identity proofing vendor. Select the Theme that will be used for this flow.

1029

Scroll to the Configuration section. The Type will be oidc. The Integration id will be the OIDC provider that was created in the Configure OIDC provider section.

The final section is for Human verification, where you would optionally configure reCAPTCHA for the flow. Click Start building flow.

1022

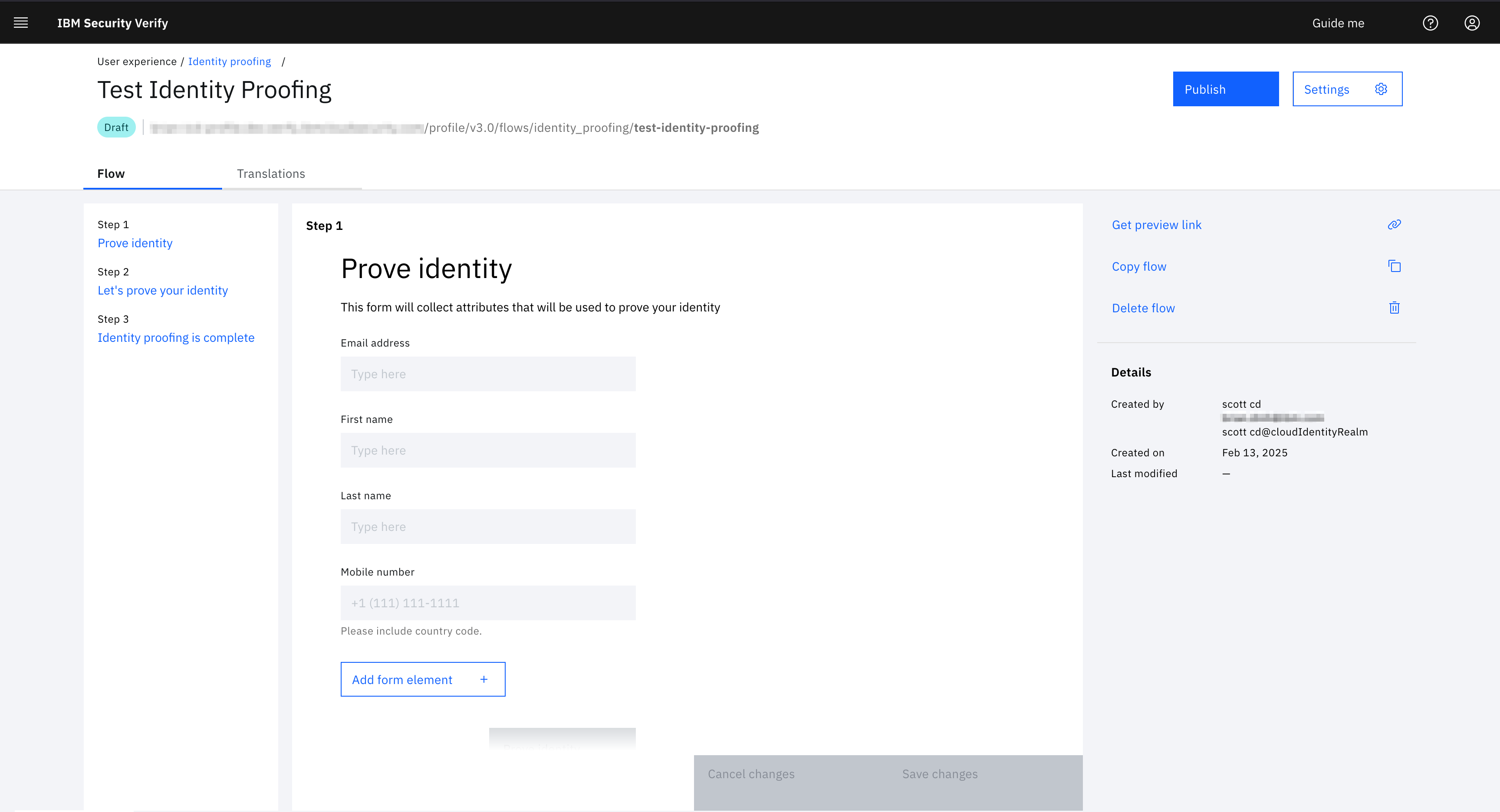

Now you can build the look and feel of the flow. You can add attributes for collection, change text, and translations at this time. Once you are done making modifications, save the flow by clicking Save changes, and then publish the flow by clicking Publish.

1023

Before using this page, it needs to be integrated into a registration flow and the vendor needs to be aware of the redirect URL.

Register redirect url

This step will vary depending on your OIDC identity proofing vendor. In the vendors config, there will be a place to add valid redirect urls. In this you should add the url of the identity proofing flow you configured in the previous step.

Example: https://idproofing.verify.ibm.com/profile/v3.0/flows/identity_proofing/test-identity-proofing

Configure registration flow

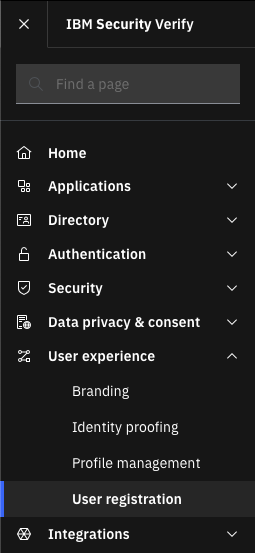

In the Verify Admin UI, navigate in the right panel to User experience and then select User registration.

255

Select Create flow. In the configuration tile, enter a name for the flow in the Name field and optionally change the URL path. Set the Primary language. Set the Password creation policy. Select the Theme that will be used for this flow.

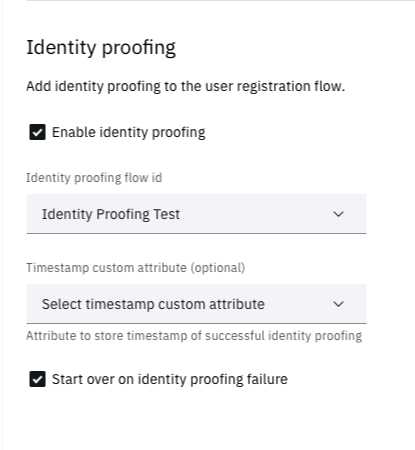

The important part for this flow is configuring the Identity proofing section. Select Enable identity proofing and select the Identity proofing flow id from the dropdown. Optionally you can select an attribute that will store the Timestamp of the last successful identity proofing. You can also optionally enable Start over on identity proofing failure.

415

Configure the remaining options you may want for the flow. You can now click Start building flow in the bottom right.

Now it is time to start building the look and feel of the flow. You can add attributes for collection, change text, and translations at this time. Once you are done making modifications, save the flow by clicking Save changes in the bottom right and then publish the flow by clicking Publish in the top right.

Try it out

Give this a shot by going to the registration url that you configured in the previous step.

Example: https://idproofing.verify.ibm.com/register/register-and-prove-identity

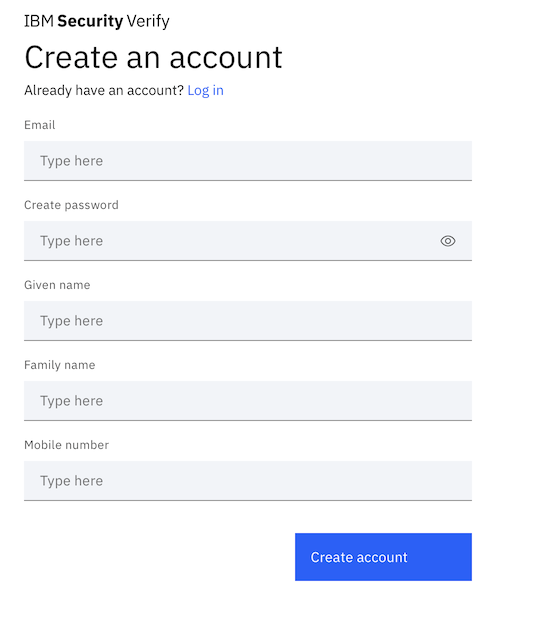

Start at the registration page.

535

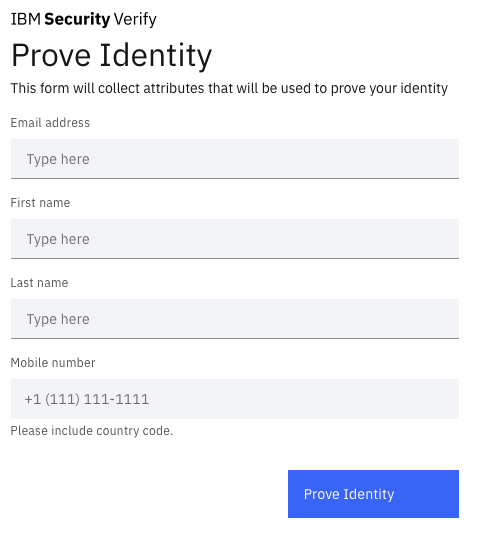

Which will direct you to the identity proofing page.

486

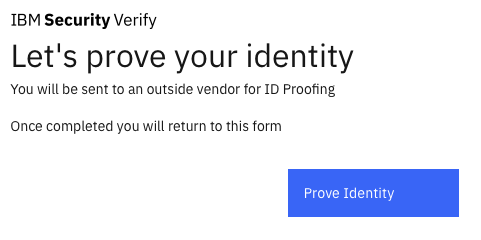

Which will redirect you to a page informing you that you are going to be sent to a third party for identity proofing.

481

Complete the steps on the identity proofing vendor where you will be redirected back to IBM Verify and can continue with the registration process.
