Entra ID EAM Integration

Introduction

This guide provides step-by-step instructions for integrating IBM Verify with Microsoft Entra ID's External Authentication Method (EAM) feature. This integration enables organizations to leverage IBM Verify as an external multi-factor authentication (MFA) provider within their Microsoft Entra ID environment.

You can configure the following by using this guide:

Custom Token Types in IBM Verify to validate Entra ID tokens
IBM Verify EAM Application to handle authentication requests from Entra ID
Application Registration in Microsoft Entra ID to establish the connection
External Authentication Method in Entra ID to enable IBM Verify as an MFA option

This integration allows users to authenticate to Microsoft services using IBM Verify's authentication methods (such as FIDO2, biometrics, OTP, and more) while maintaining centralized identity management in Microsoft Entra ID.

Prerequisites:

Administrative access to IBM Verify tenant
Administrative access to Microsoft Entra ID tenant

Custom Token Type

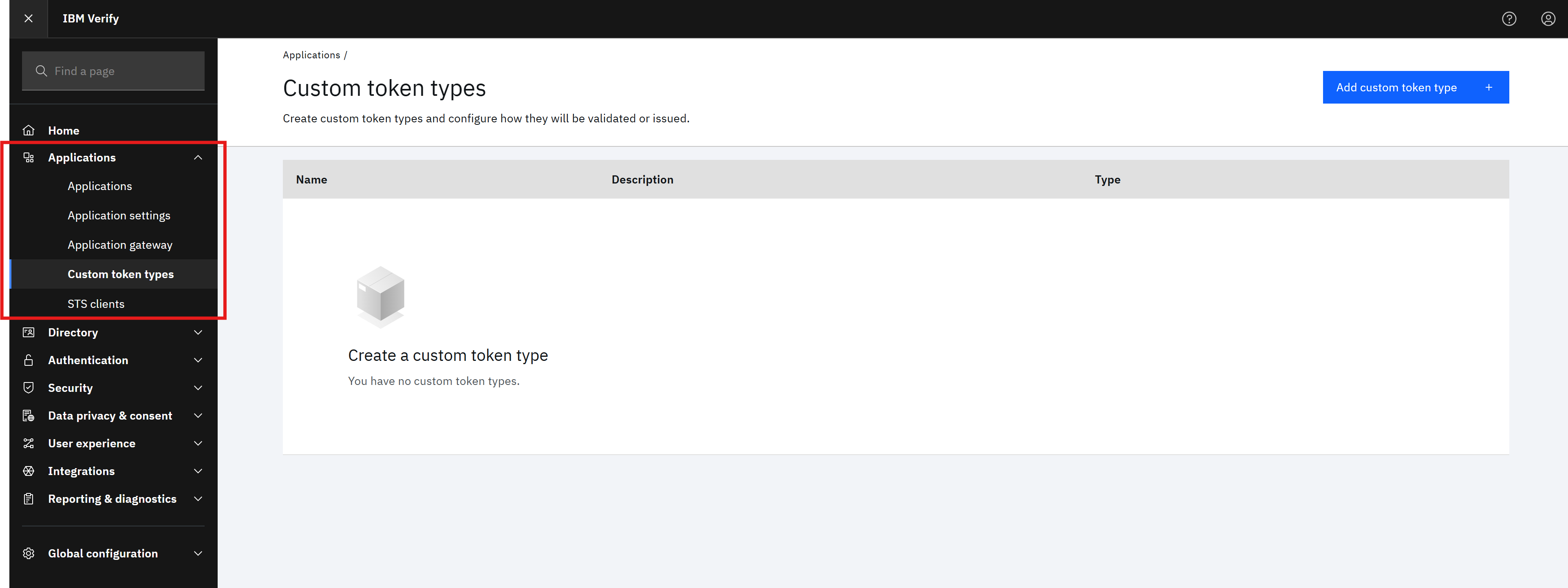

In the IBM Verify tenant admin portal, create a new custom token type for Entra ID EAM id_token_hint through Applications -> Custom token types.

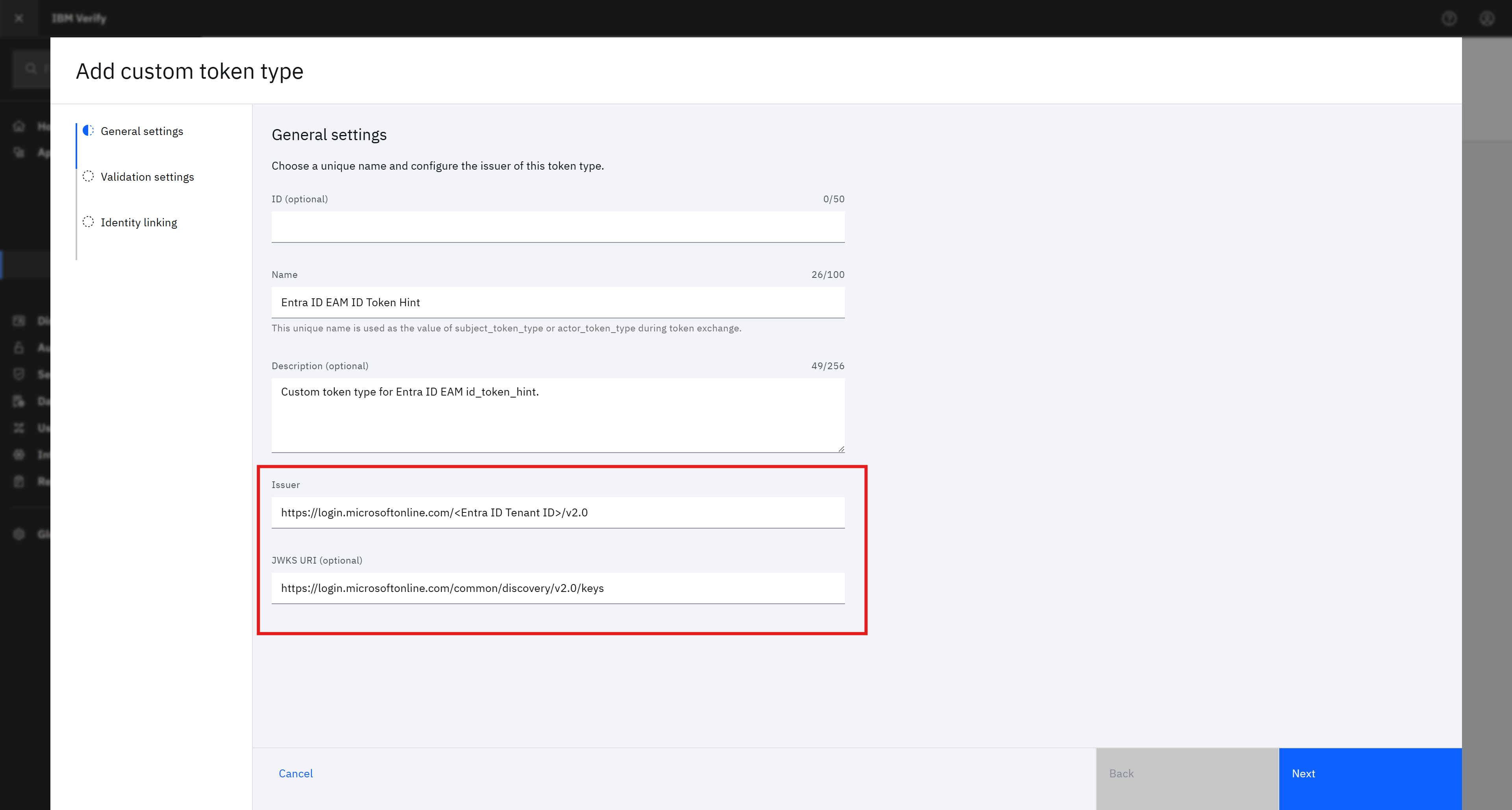

1. Complete the General settings

Use these values for the following fields:

Field	Value
Issuer	`https://login.microsoftonline.com/<Entra ID Tenant ID>/v2.0`
JWKS URI	`https://login.microsoftonline.com/common/discovery/v2.0/keys`

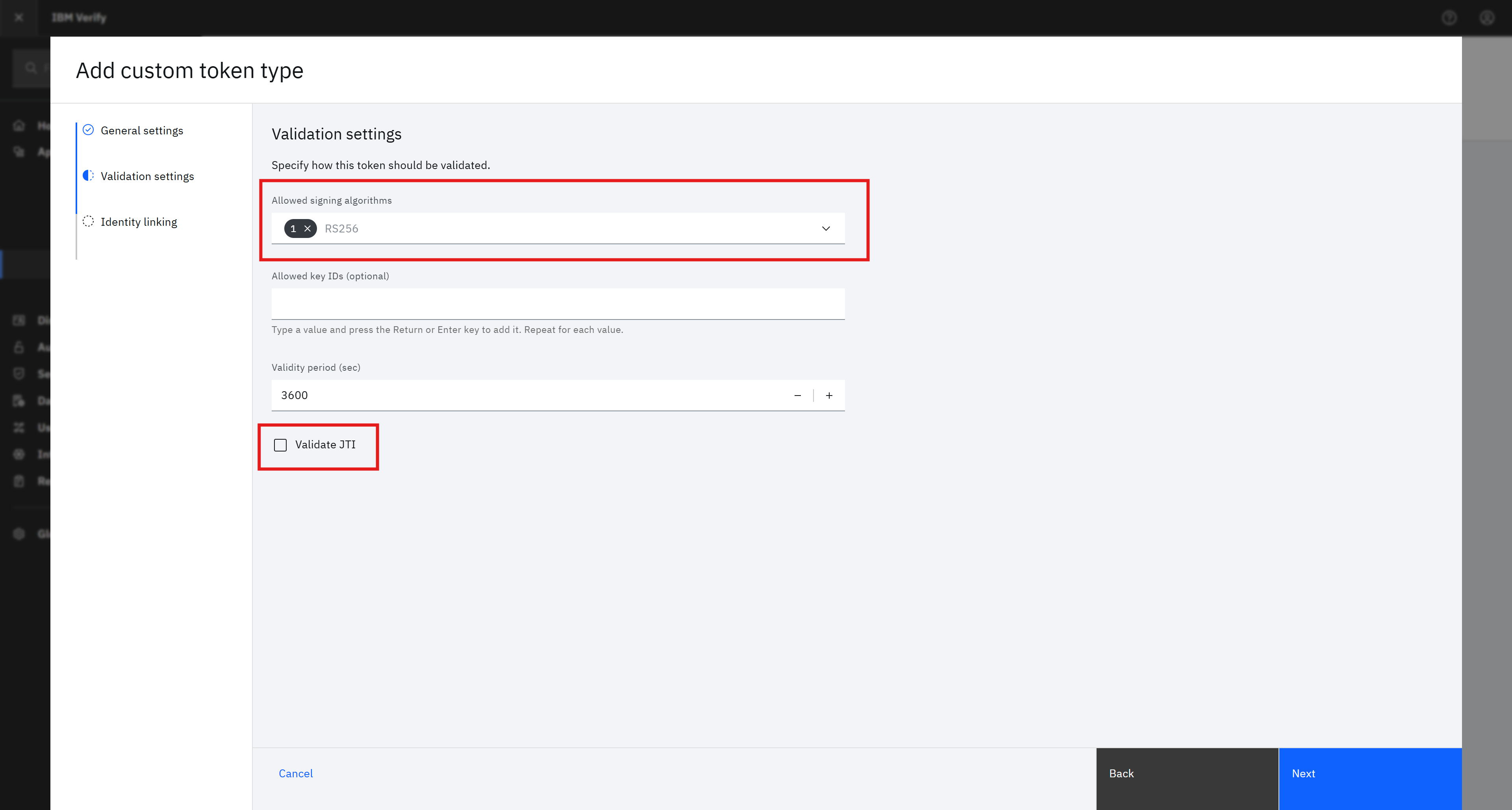

2. Complete the Validation settings

Use these values for the following fields:

Field	Value
Allowed signing algorithms	RS256
Validate JTI	Unselect the checkbox (Entra ID does not support JTI)

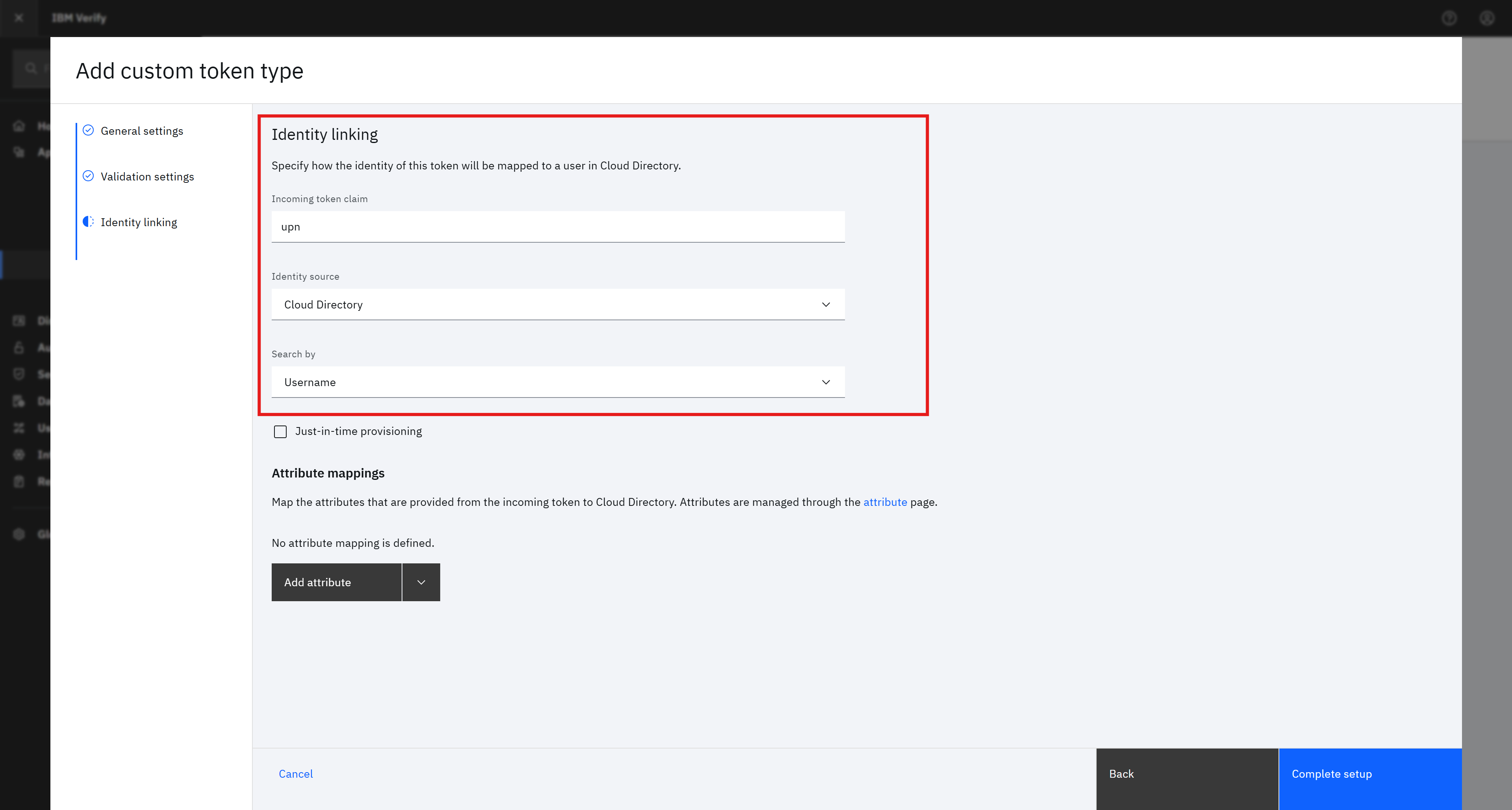

3. Complete the Identity linking

Map the appropriate identity attributes based on requirements. Verify uses the attribute from id_token_hint to search for the corresponding user in the identity source.

Example mapping:

Field	Value
Incoming token claim	upn
Identity source	Cloud Directory
Search by	Username

Note: The above example uses the upn (User Principal Name) from Microsoft Entra ID to map to the username of the user in Cloud Directory.

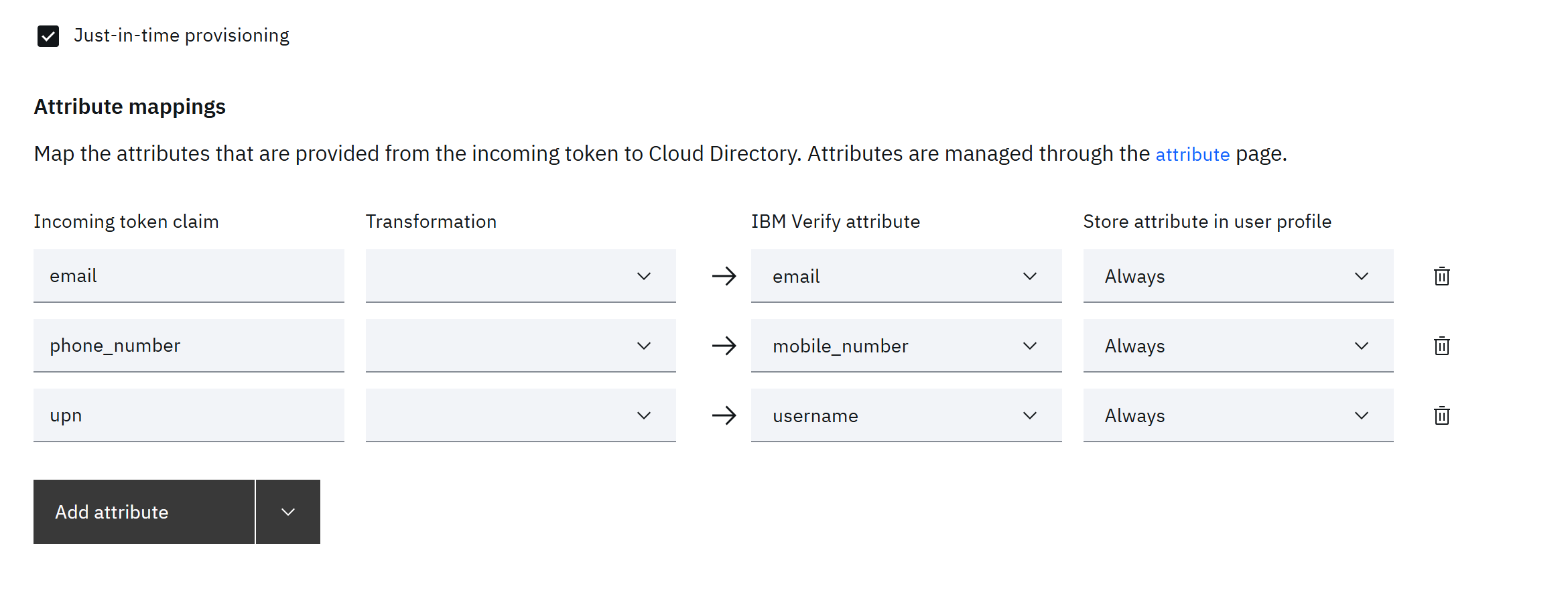

If a user does not exist in the Cloud Directory, Just-in-Time provisioning can be used to automatically create the user account. To enable the use of multi-factor authentication (MFA) in Verify, it is essential to include either a phone number or an email address in the Attribute mappings. These attributes are incorporated into the newly provisioned user record to ensure MFA functionality.

For more information, see Managing custom token types.

IBM Verify EAM Application

In the IBM Verify tenant admin portal, create a new Microsoft Entra ID EAM application from Applications -> Applications->Add application.

1. Provide required information in General tab

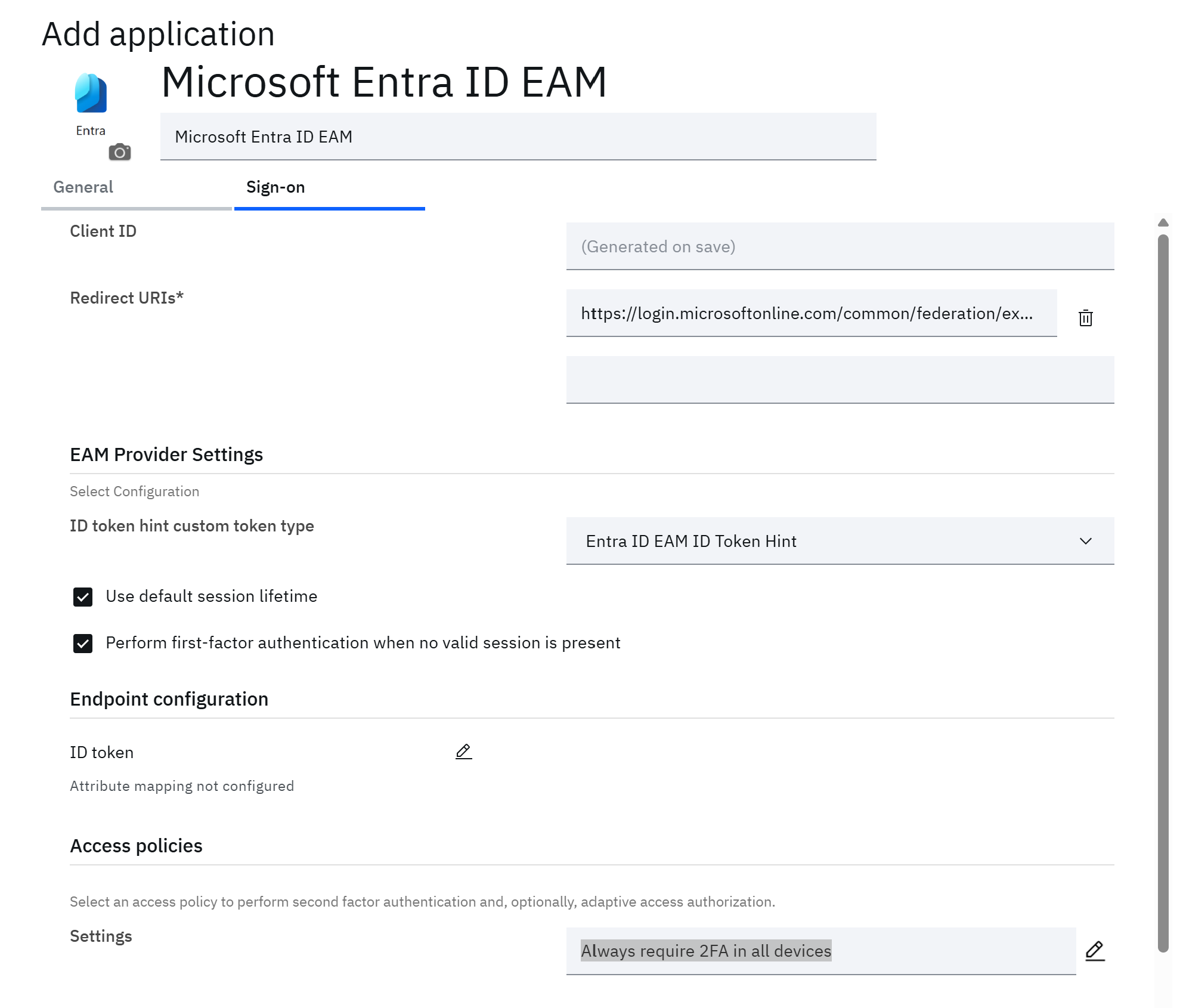

2. Enter details in the Sign-on tab

Use these values for the following fields under EAM Provider Settings:

Field	Value
Redirect URIs	`https://login.microsoftonline.com/common/federation/externalauthprovider`
ID token hint custom token type	The name of the Custom Token Type created in the previous section.
Use default session lifetime	Set as needed. (When generating a session when Verify is not the IdP, apply either the default session lifetime or the defined session lifetime).
Perform first-factor authentication when no valid session is present	Checked – When Verify is configured as the Identity Provider (IdP) for Entra ID, single-factor authentication (1FA) login is required if no active login session is detected during two-factor authentication (2FA). Unchecked – An error is returned if no login session is found, or the user is provisioned through Just-In-Time Provisioning (JITP) when not available in Cloud Directory.

3. Use these values for the following attributes under Endpoint Configuration:

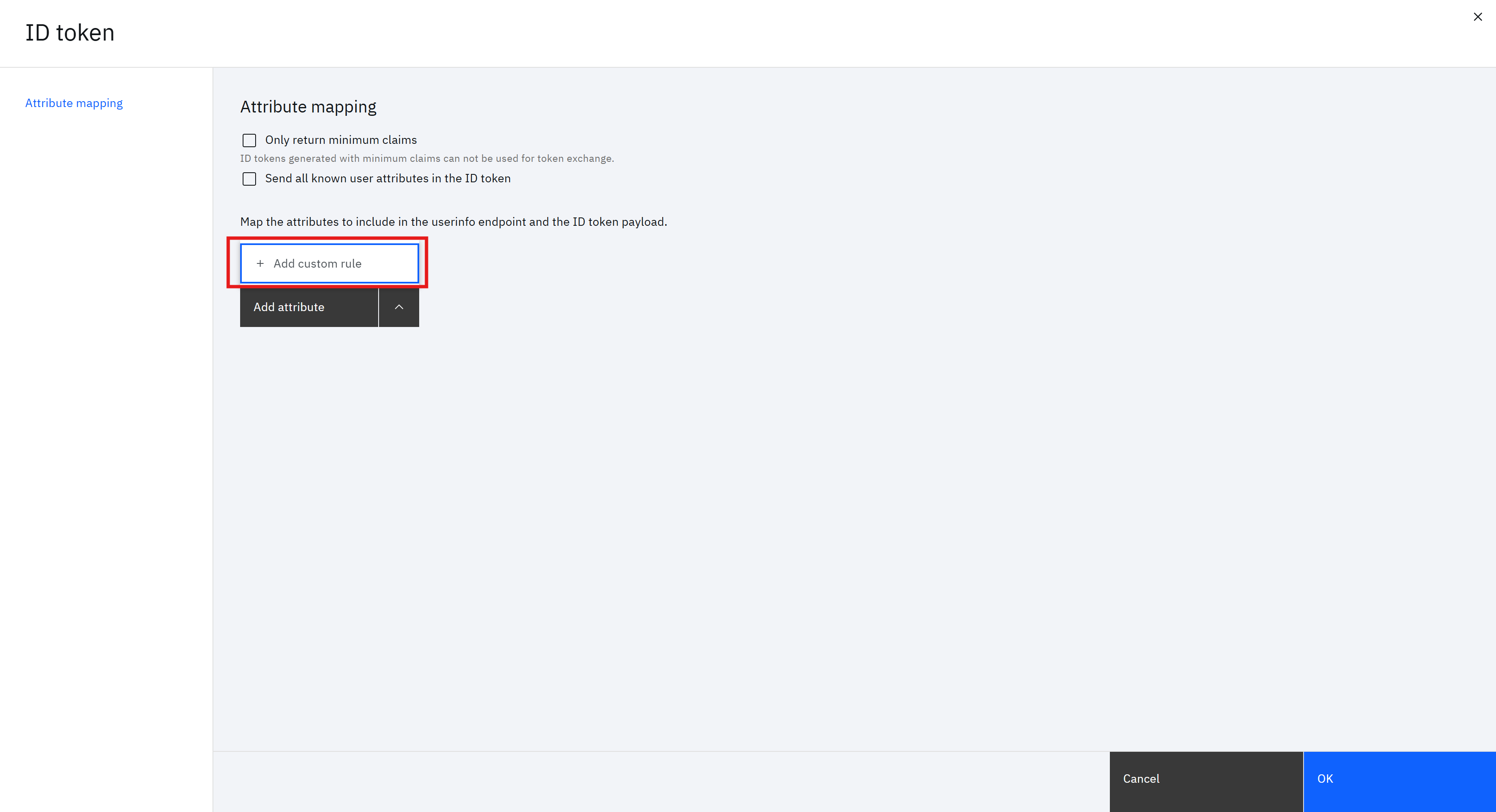

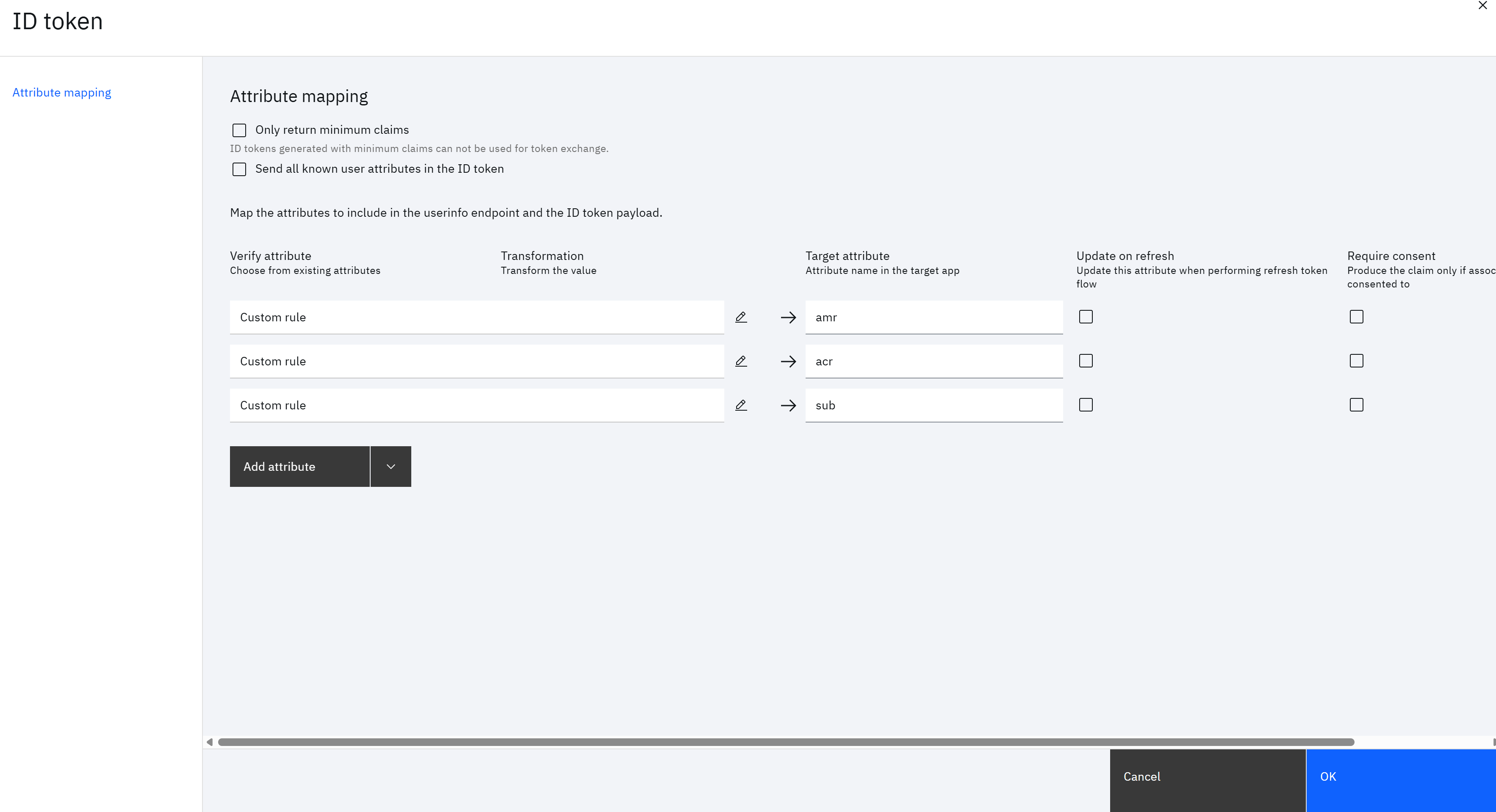

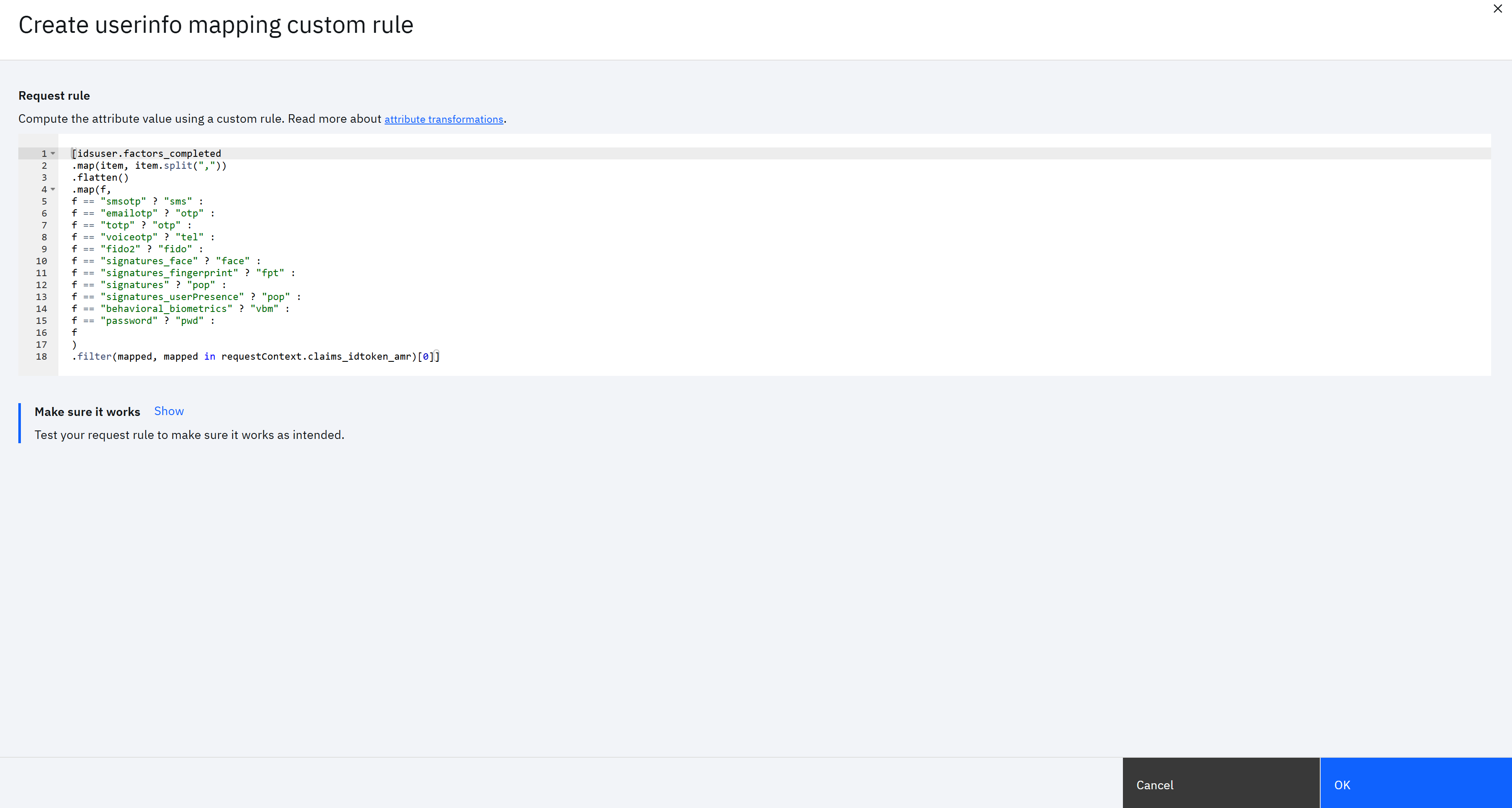

Edit the ID token and add the following custom mapping rules:

Target Attribute	Value
amr	`[idsuser.factors_completed` `.map(item, item.split(","))` `.flatten()` `.map(f,` `f == "smsotp" ? "sms" :` `f == "emailotp" ? "otp" :` `f == "totp" ? "otp" :` `f == "voiceotp" ? "tel" :` `f == "fido2" ? "fido" :` `f == "signatures_face" ? "face" :` `f == "signatures_fingerprint" ? "fpt" :` `f == "signatures" ? "pop" :` `f == "signatures_userPresence" ? "pop" :` `f == "behavioral_biometrics" ? "vbm" :` `f == "password" ? "pwd" :` `f` `)` `.filter(mapped, mapped in requestContext.claims_idtoken_amr)[0]]`
acr	`requestContext.claims_idtoken_acr`
sub	`requestContext["id_token_hint_claims"]["sub"]`

4. Select the following value for the following field under Access policies:

Field	Value
Access policies	Select `Always require 2FA on all devices` or configure any other policy that enforces two-factor authentication.

Application in Microsoft Entra ID

1. Create New Application

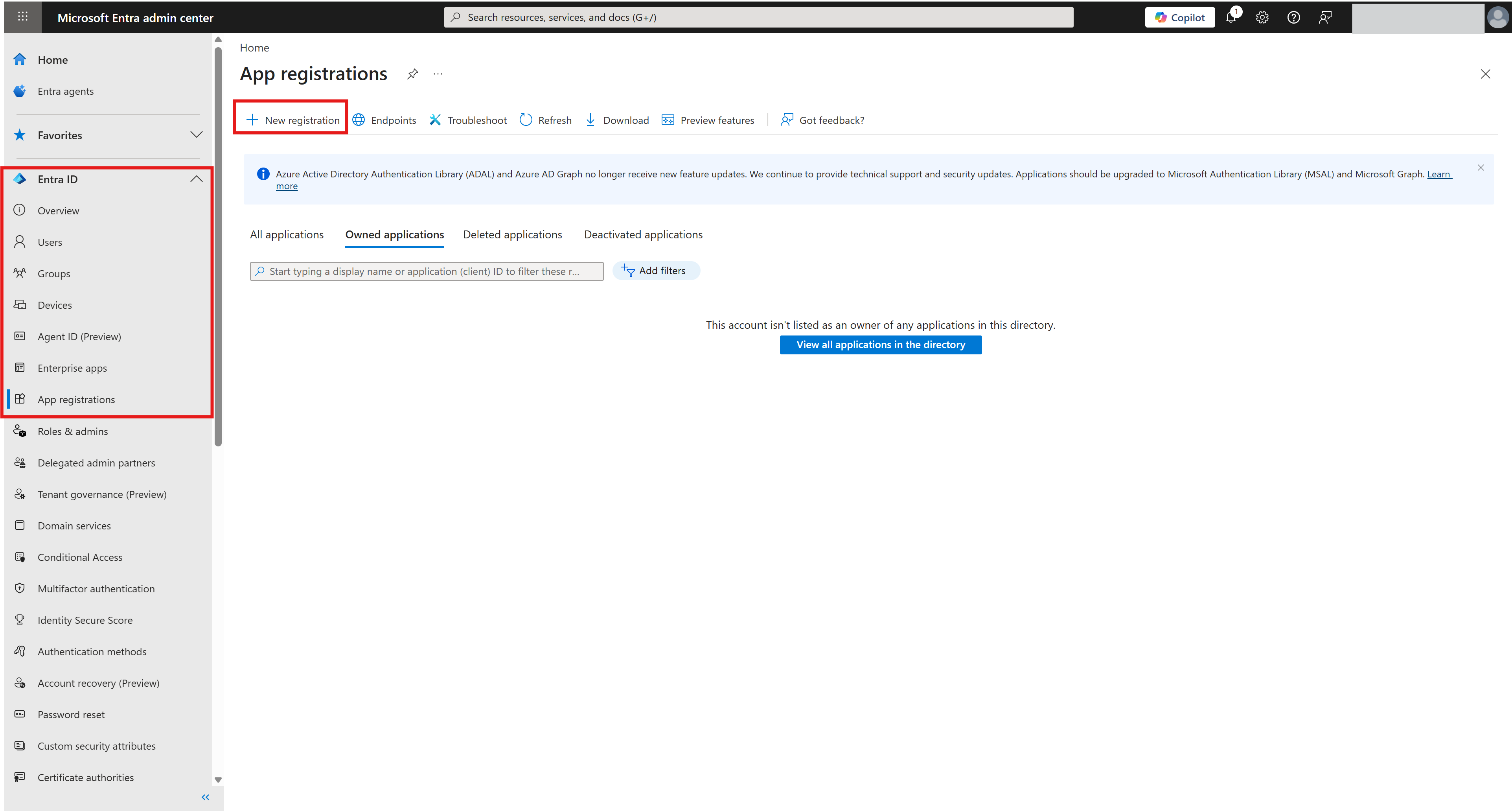

Navigate to the Microsoft Entra admin center and add a new application from Entra ID -> App registrations.

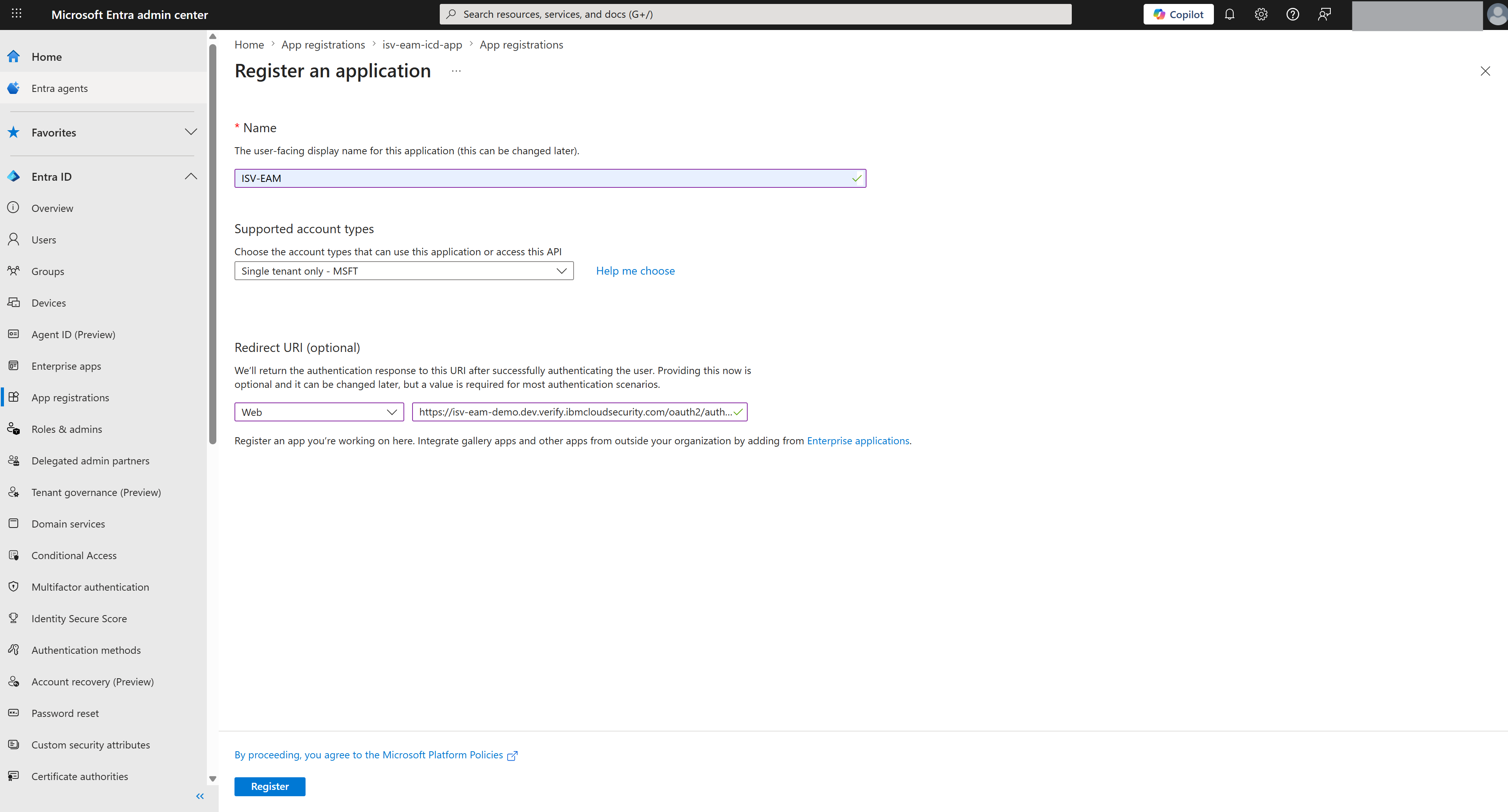

2. Application Configuration

Use these values for the following fields

Field	Value
Name	The app name
Supported account types	Select Single tenant only - MSFT
Redirect URI	Verify authorization endpoint For example: `https://<isv-tenant-hostname>/oauth2/authorize`
Select a platform	Web

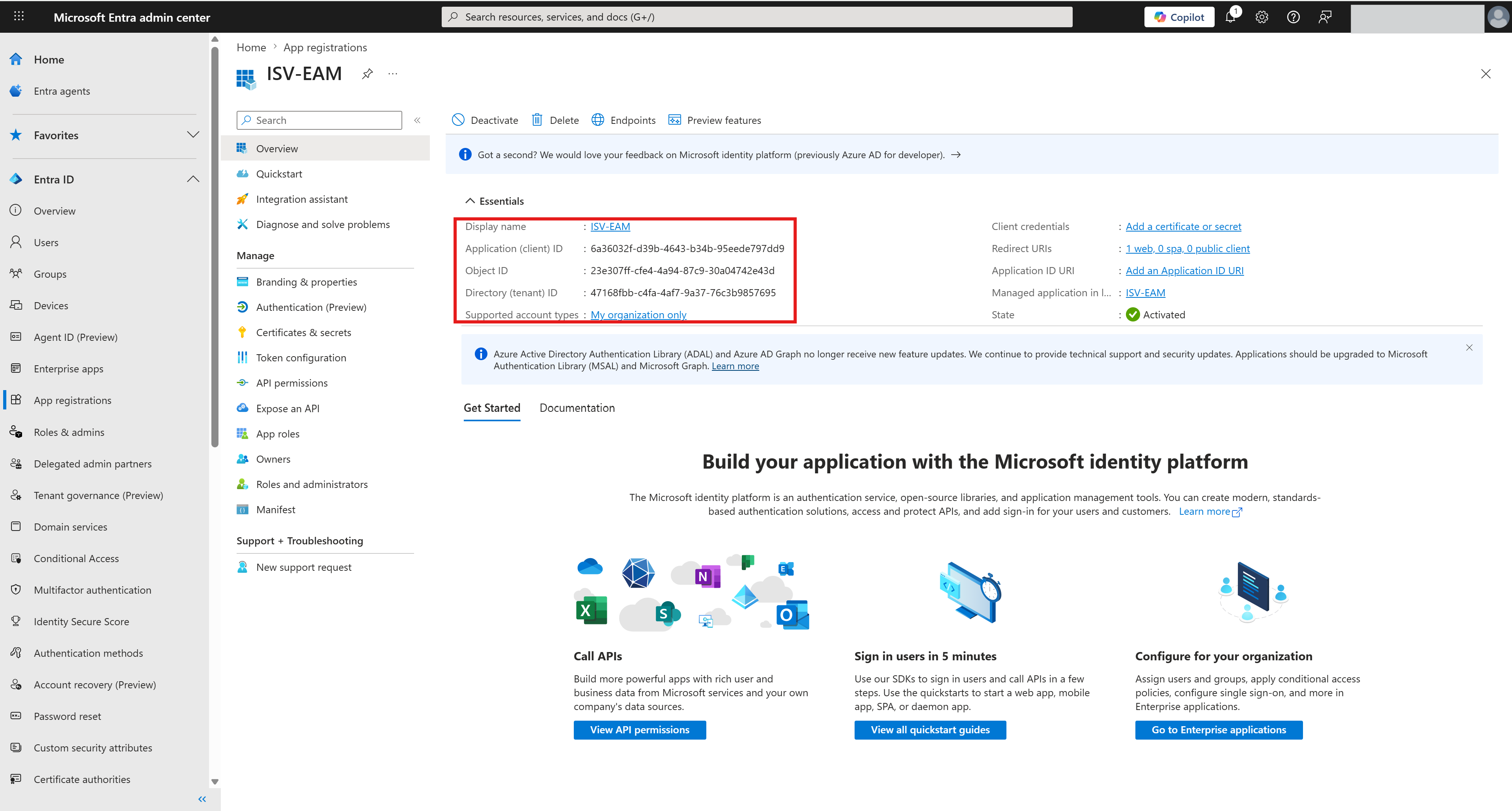

Note: The Application (client) ID of the application is used to create an external authentication method in later steps. The Directory (tenant) ID is used in the Custom Token Type section.

3. Configure API Permissions

3.1 Add Permissions

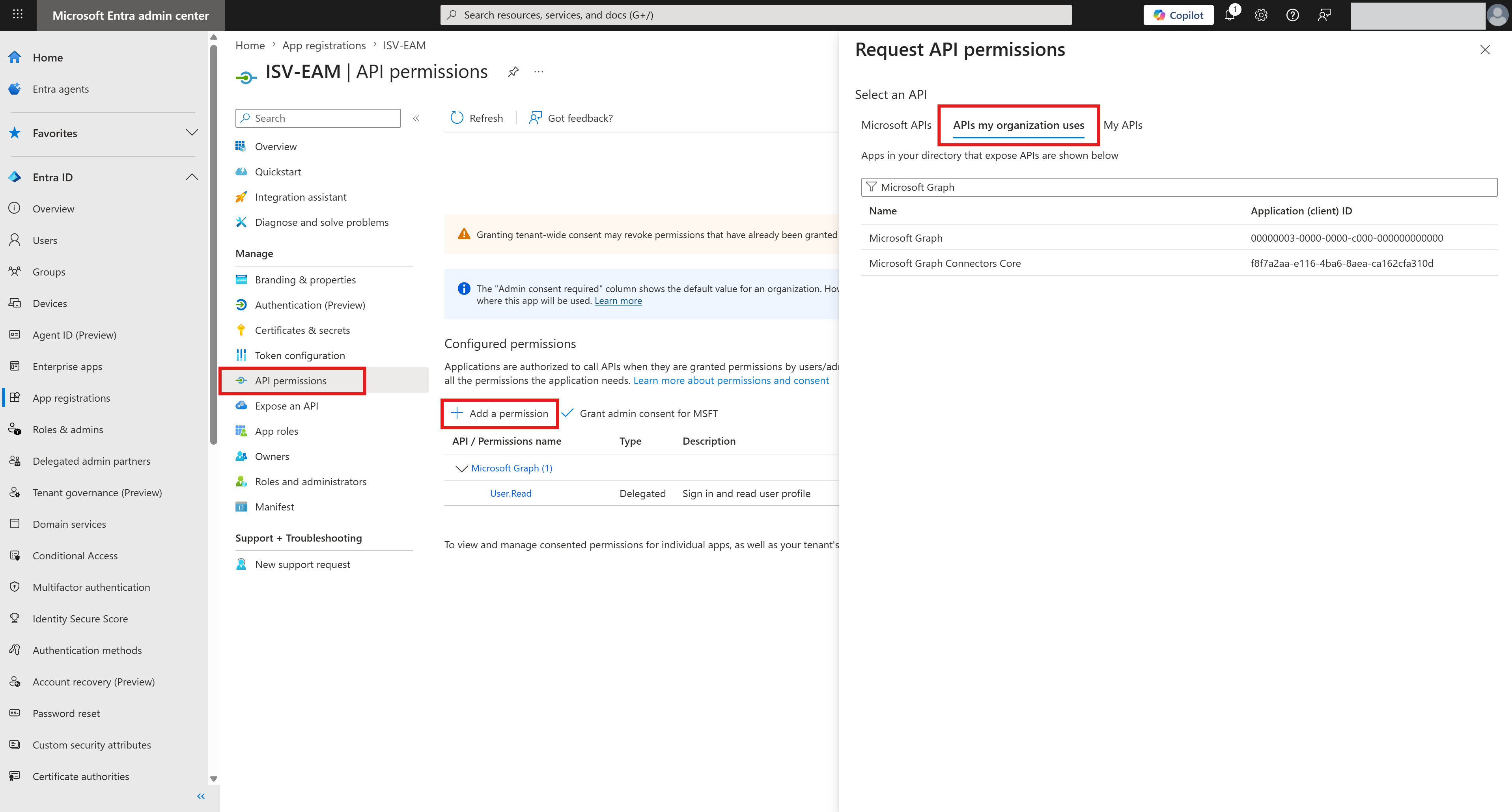

Configure the permissions to the API in the created application from API permissions -> Add a permission -> APIs my organization uses.

3.2 Add OpenID Permissions

Then add the openid and profile permissions from the Microsoft Graph -> Delegated permissions -> OpenID permissions section.

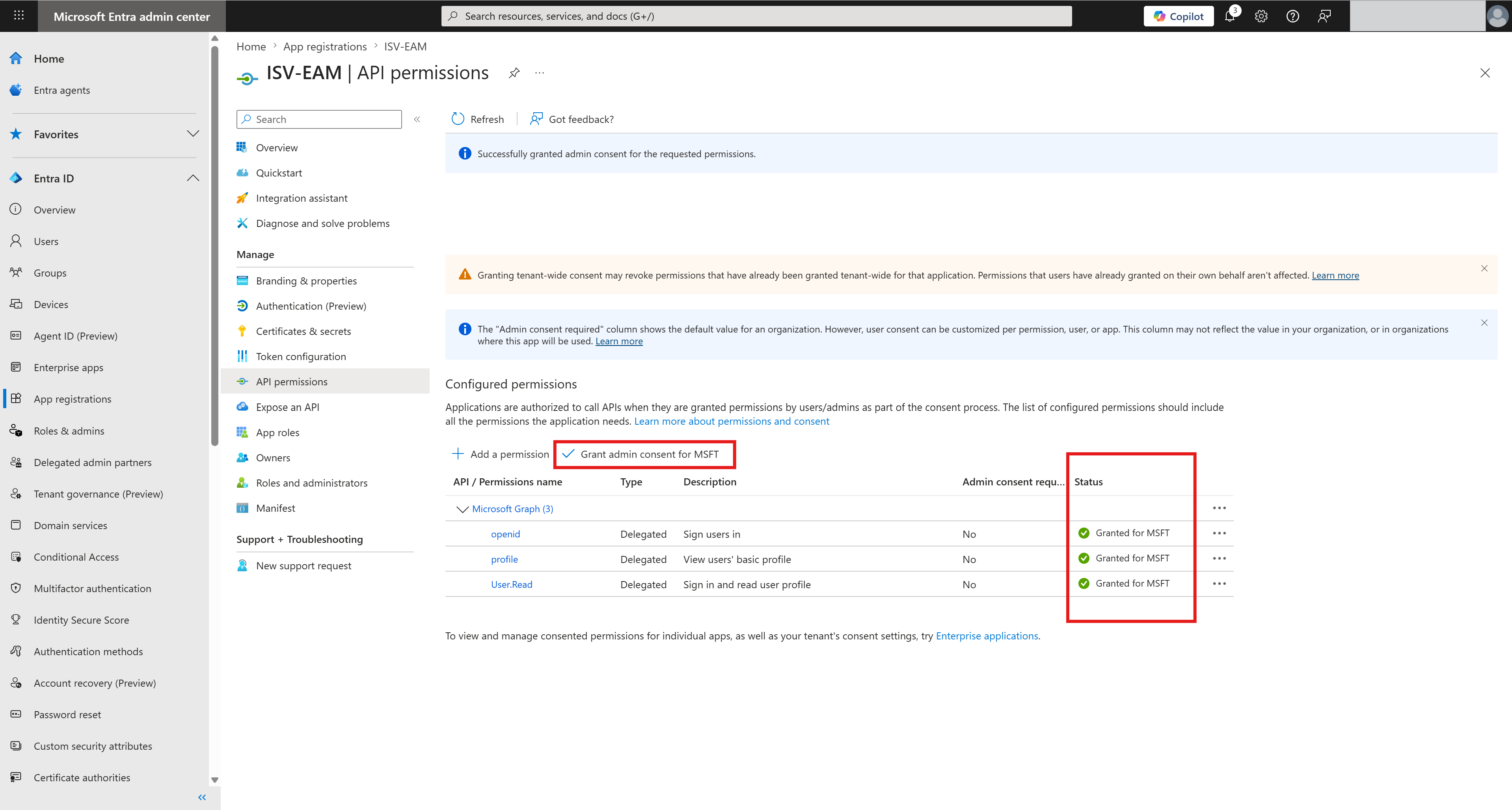

3.3 Grant Admin Consent

Finally, Grant admin consent for .

4. Token Configuration

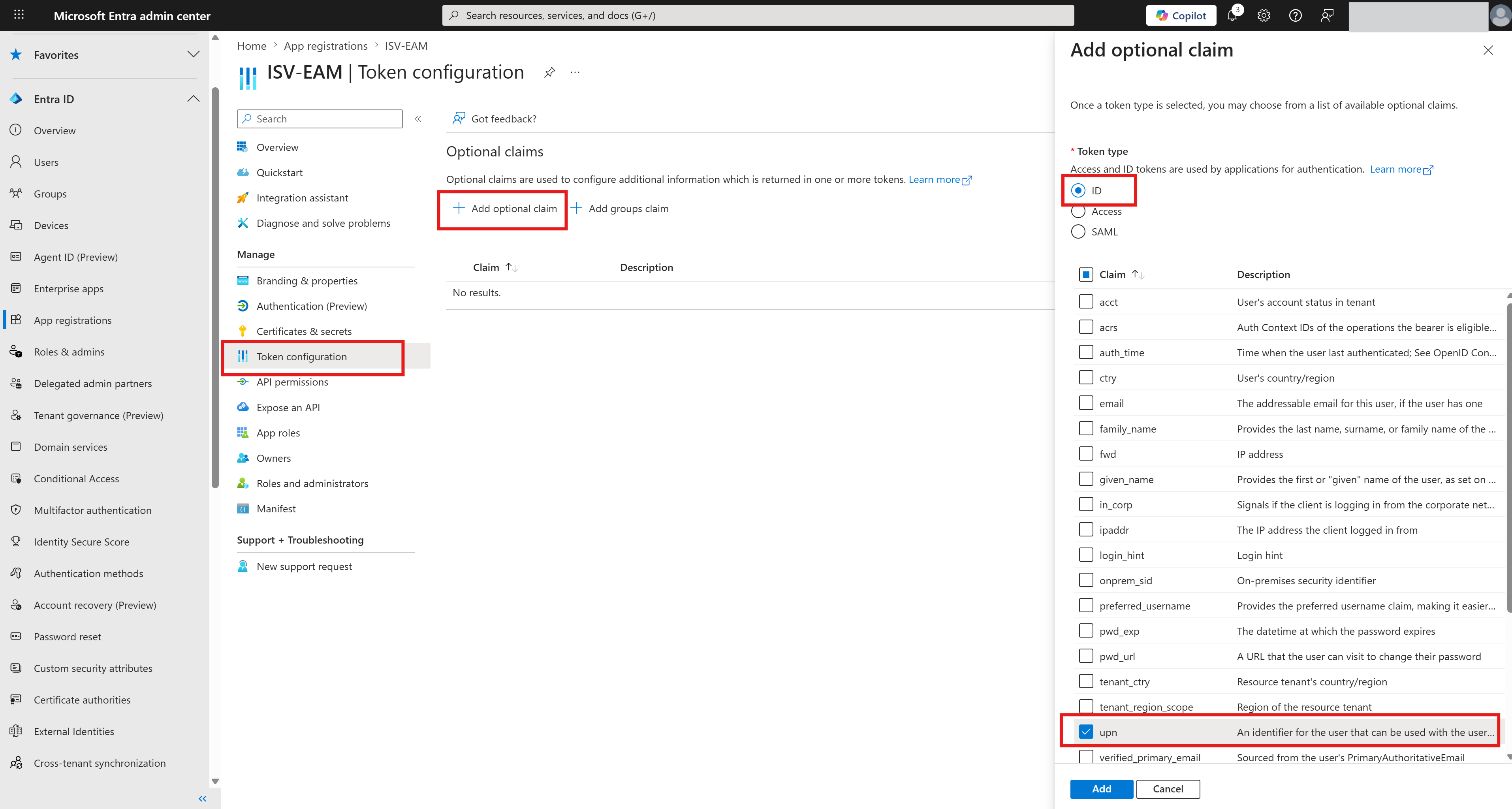

Add optional claim - upn in the Token configuration section. This claim is included in tokens generated by Entra ID and used by IBM Verify to identify and locate the corresponding user in the identity source.

Authentication Method in Microsoft Entra ID

1. Add Authentication Method

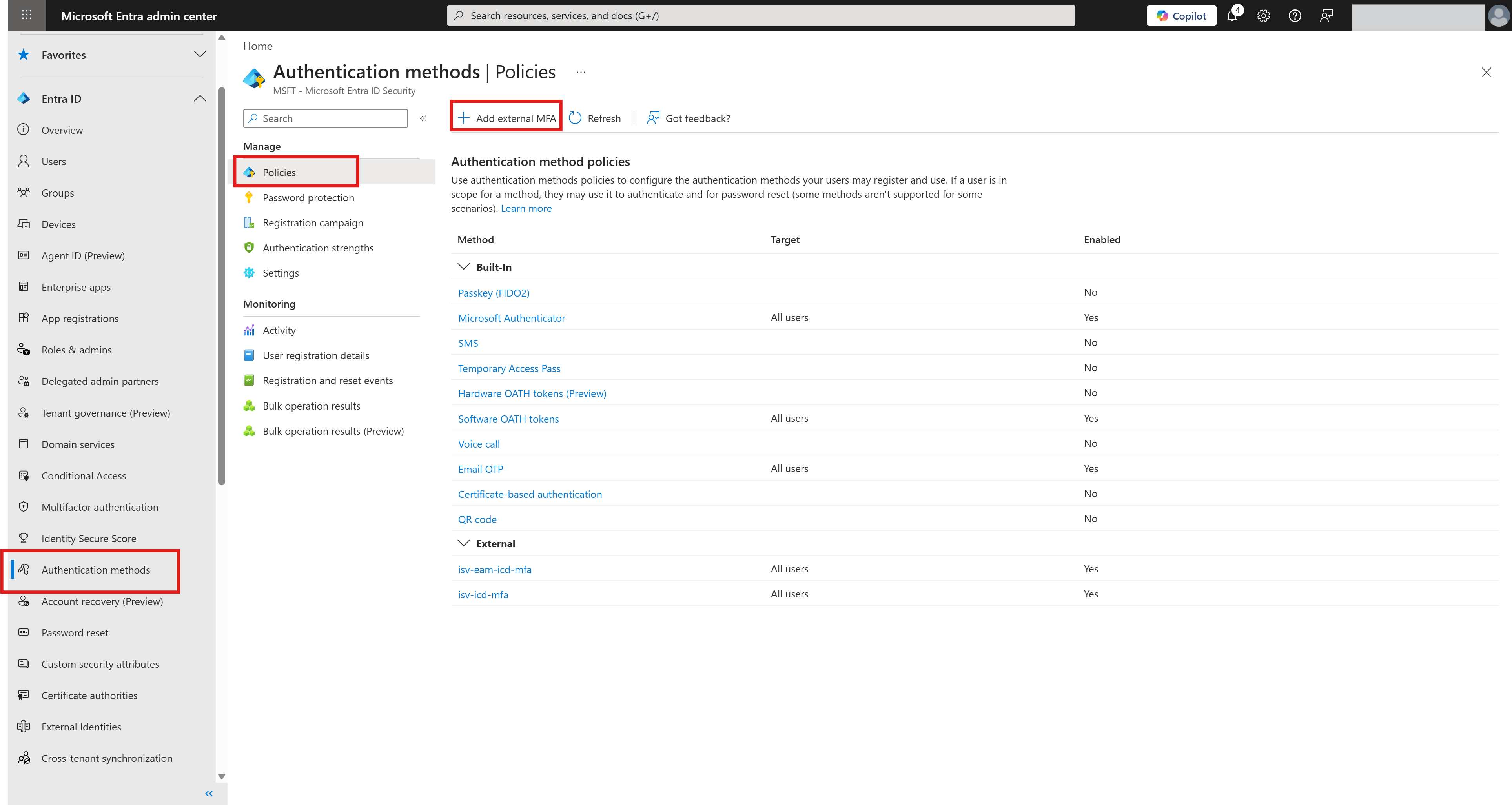

Navigate to the Microsoft Entra admin center and add a new authentication method from Entra ID -> Authentication methods -> Policies.

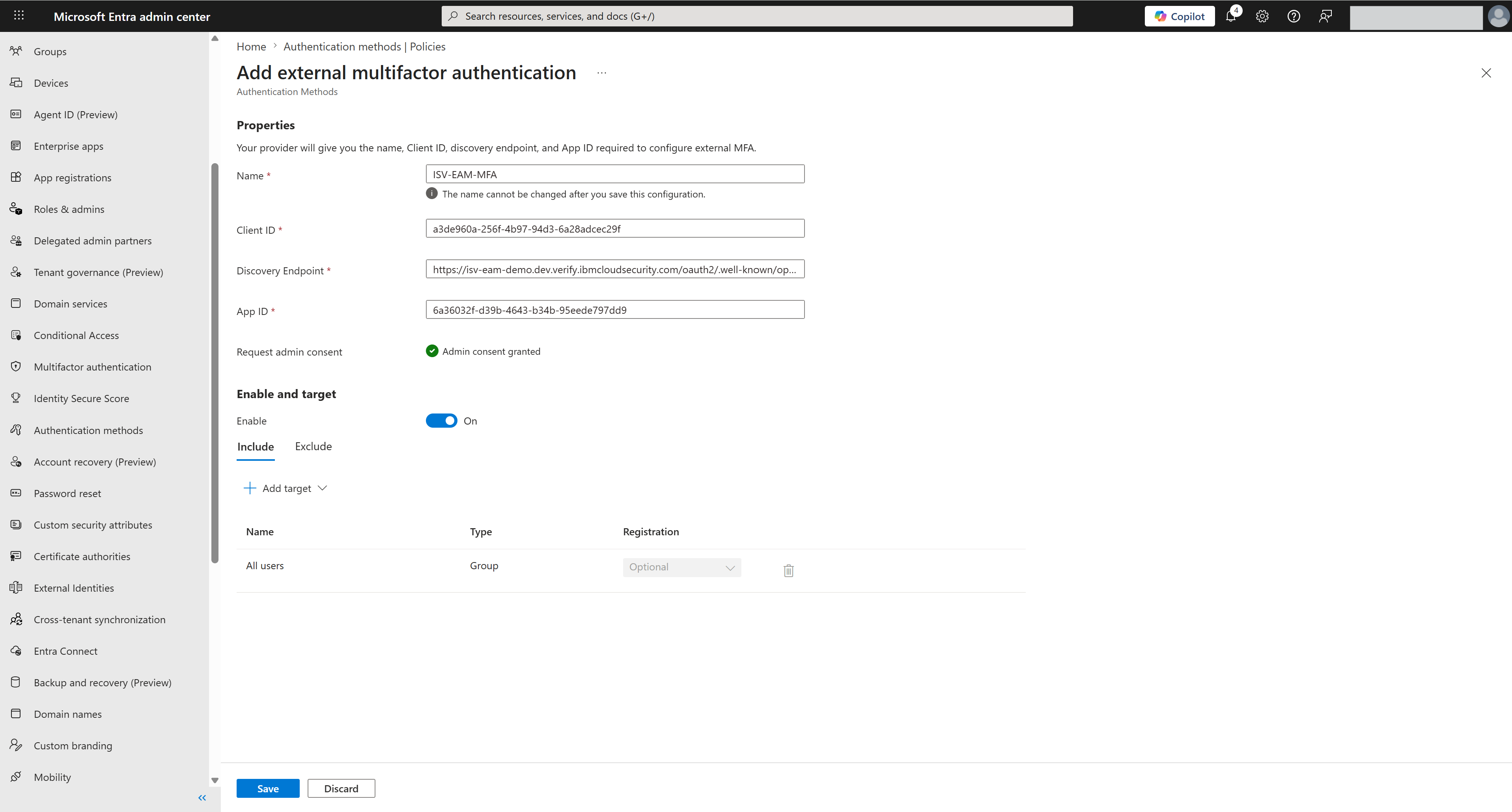

2. Configuration

Use these values for the following fields:

Field	Value
Name	Name of the authentication method
Client ID	The Client ID of the Verify Microsoft Entra ID EAM application created in the IBM Verify EAM Application section
Discovery Endpoint	`https://<isv-tenant-hostname>/oauth2/.well-known/openid-configuration`
App ID	The Application (client) ID created in Entra ID in the Application in Microsoft Entra ID section
Enable	Enable external authentication methods

Reference

Microsoft Entra External Authentication Method Management
